NVF2G Series Inverter User's Guide
Function code
Name
Default value
Predetermined area
Parameter Description
FA.01
Phase 1 Setup
0x0000
0x0000 ~ 0x0315
FA.02
Phase 1 run time
0.0
0.0～6500.0
FA.03
Phase 2 Setup
0x0000
Same as FA.01
FA.04
Phase 2 run time
0.0
0.0～6500.0
FA.05
Phase 3 Setup
0x0000
Same as FA.01
FA.06
Phase 3 run time
0.0
0.0～6500.0
FA.07
Phase 4 Setup
0x0000
Same as FA.01
FA.08
Phase 4 run time
0.0
0.0～6500.0
FA.09
Stage 5 Setup
0x0000
Same as FA.01
FA.10
Phase 5 run time
0.0
0.0～6500.0
FA.11
Stage 6 Setup
0x0000
Same as FA.01
FA.12
Phase 6 run time
0.0
0.0～6500.0
FA.13
Stage 7 Setup
0x0000
Same as FA.01
FA.14
Phase 7 run time
0.0
0.0～6500.0
FA.15
Stage 8 Setup
0x0000
Same as FA.01
FA.16
Phase 8 run time
0.0
0.0～6500.0
FA.17
Stage 9 Setup
0x0000
Same as FA.01
FA.18
Phase 9 run time
0.0
0.0～6500.0
FA.19
Stage 10 Setup
0x0000
Same as FA.01
FA.20
Stage 10 run time
0.0
0.0～6500.0
FA.21
Stage 11 Setup
0x0000
Same as FA.01
FA.22
Phase 11 run time
0.0
0.0～6500.0
FA.23
Stage 12 Setup
0x0000
Same as FA.01
FA.24
Phase 12 run time
0.0
0.0～6500.0
FA.25
Stage 13 Setup
0x0000
Same as FA.01
FA.26
Phase 13 run time
0.0
0.0～6500.0
FA.27
Stage 14 Setup
0x0000
Same as FA.01
FA.28
Phase 14 run time
0.0
0.0～6500.0
FA.29
Phase 1 5 Setup
0x0000
Same as FA.01
FA.30
Stage 15 run time
0.0
0.0～6500.0
Units: frequency source
0: multi-band frequency N
1-5: Reserved
Tens place: running direction
0: Forward rotation
1: reverse
Hundreds place: Acceleration and
deceleration time
0: Acceleration and deceleration time 1
1: Acceleration and deceleration time 2
2: Acceleration and deceleration time 3
3: Acceleration and deceleration time 4

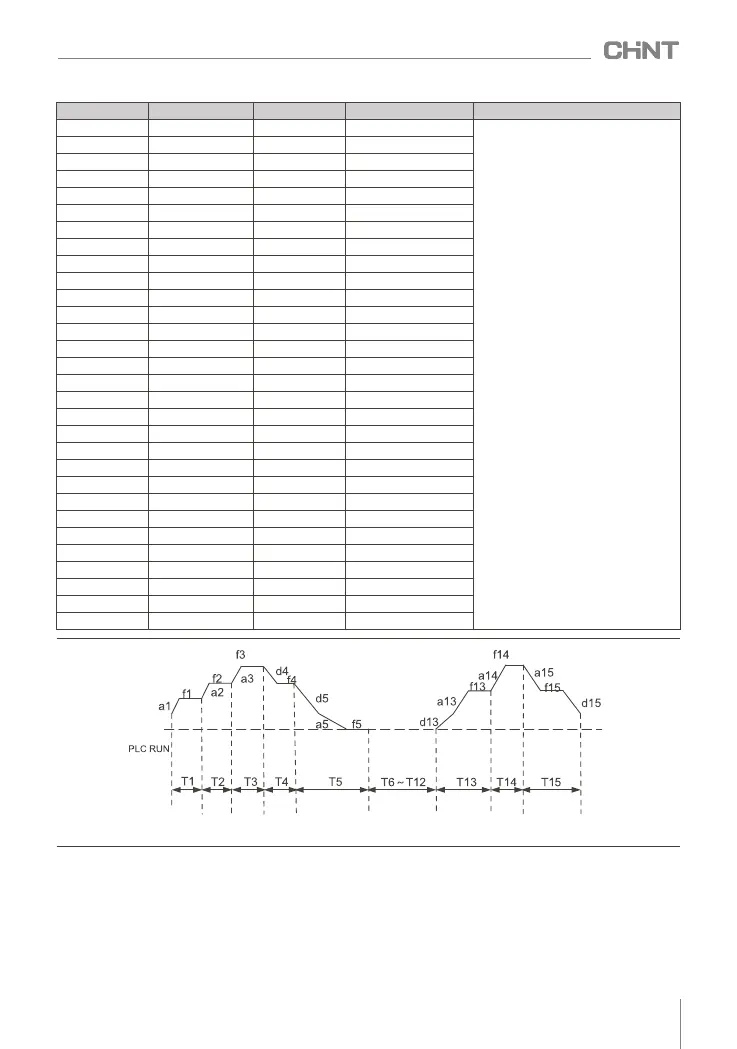

Figure 8-2-2 Schematic diagram of simple PLC as main frequency
the simple PLC function of the inverter includes 3 types: stop after a single cycle, maintain the final value
after a single cycle, and continuous cycle . Show:
● Shutdown after a single loop:
