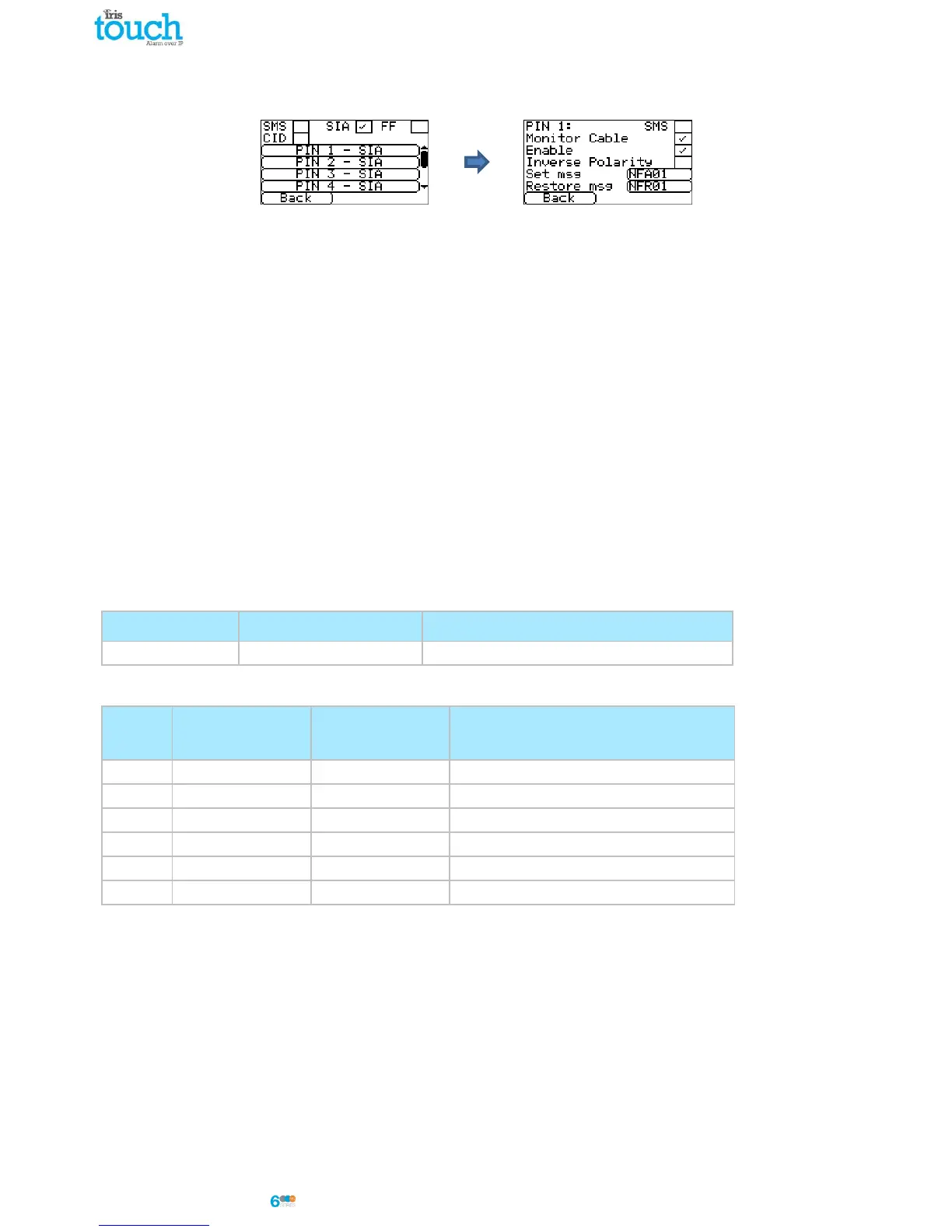

Selecting SIA for the Inputs means that the inputs will send specific SIA alarm protocol messages on the set event
and restore for that input, the options available as shown.
SMS
One input can be setup to be SMS by ticking the ‘Set as SMS’ and this will allow setup of the SMS option as shown
above.
Monitor Cable
You also have the option to monitor the input for tamper which is detailed in Section 7.5 “Pin Inputs”.
Enable
Enable/disable each pin input with the ‘Enable’ tick box.
Inverse Polarity
The function of the inputs ‘Set event’ and ‘Restore event’ can be inverted to be the opposite way round by ticking
the ‘Inverse’ tick box. This will mean that the ‘Set event’ is now the closed circuit and the ‘Restore event’ is open
circuit.
Set msg / Restore msg
Setup the ‘Set / Restore’ message sent on the relevant event using the correct format as defined in SIA Format
protocol SIA DC-03-1990.01(R2003.10). At default this is pre-set to a specific SIA code and a zone number (see table
below). This can be modified for any event code and a text description added for each event which will be sent with
the SIA alarm code as with SIA level 3 alarm protocols. These can be no longer than 15 characters in total.
To add a text description to the Set / Restore msg use the following format applying ^ before and after to indicate
the text description:
