CHORE WARRIOR 44322 - Assembling Main Frame to Drive System

chorewarrior.com Customer Service: 651-370-7508 7

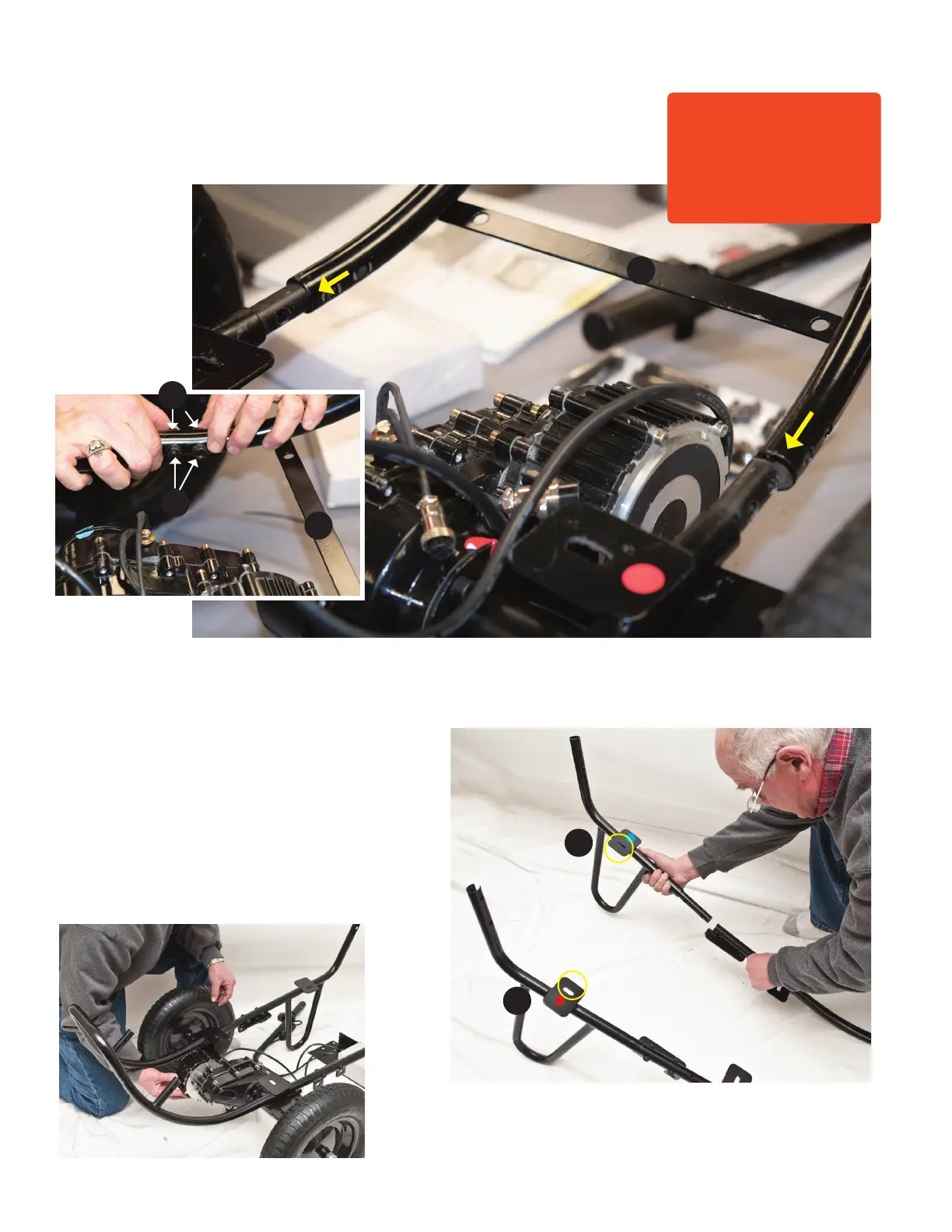

ATTACHING MAIN FRAME TO DRIVE SYSTEM
1. Slide the dump support brace (N) onto the assembled axle frame mounts. Secure with M8 x 40mm
hex bolts (V) and hex nuts (T).
2. Attach right (K) and left (J) legs to the other side of the assembled axle frame mounts. Secure with M8 x 40mm hex bolts (V) and hex
nuts (T).
NOTE: make sure tabs are facing inwards as shown.
Now your Chore Warrior should look like this:
N
N
T
V
J
K
IMPORTANT!
HAND TIGHTEN HARDWARE
DURING ASSEMBLY
From this part of the manual and on,
only tighten hardware by hand until
Chore Warrior is fully assembled;
then use tools to tighten all
hardware.
