High Power DC Electronic Load 63200 Series Quick Start Guide
Rack mount note for model 63207:

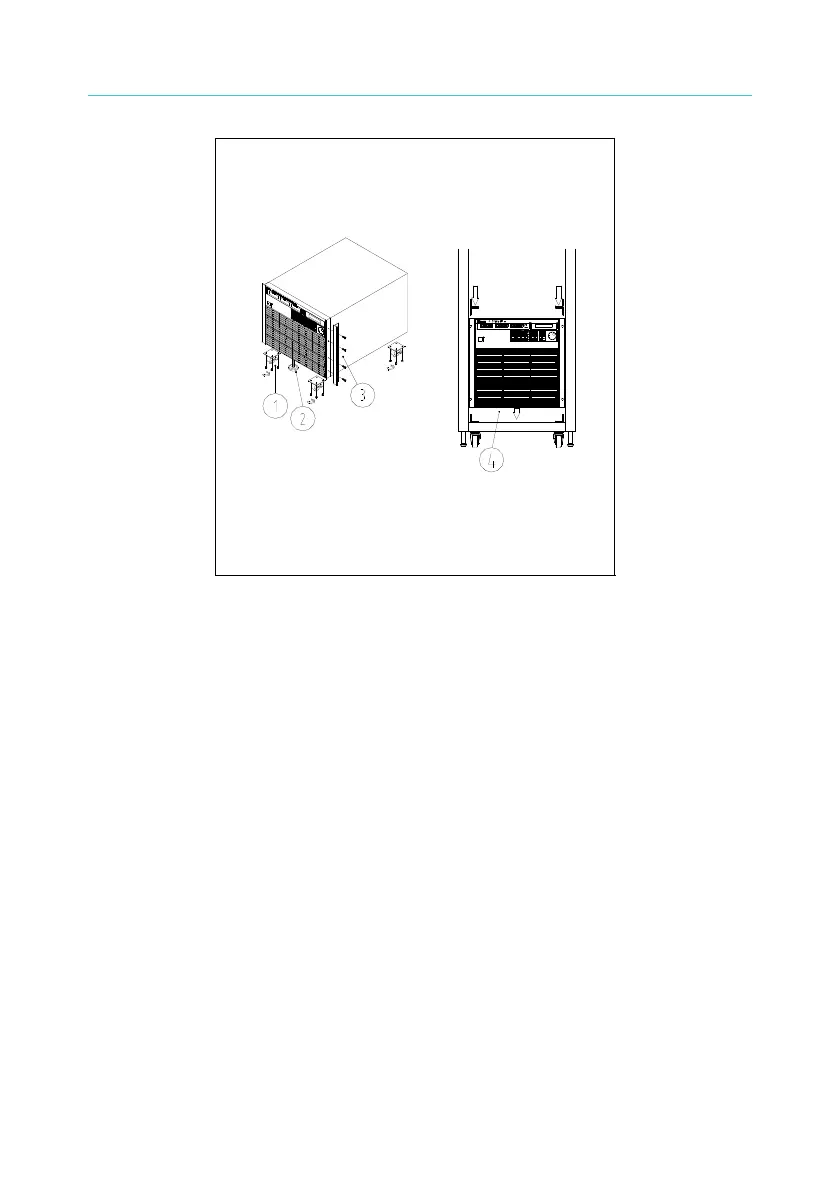

Notices for Rack Mount Installation
1 The four wheels must be removed.
2 The supporter must be removed.
3 Use the original banner screws to secure the rack
frame.
4 For safety, place it at the bottom of the rack.
Installing the 63200 Protective Cover:
Step 1: Insert the cable into protective cover.
Step 2: Socket the Bakelite into the positive/negative copper plate until it
touches the chassis and then secure the M6x20L screw and M6
screw nut to block the Bakelite.
Step 3: Place a washer on the M6x20L screw and let it go through the
positive/negative copper plate. Connect the two cables with an
insulator to secure the cables on the positive/negative copper
plate.
Step 4: Cover the positive/negative copper plate with protective cover on
the rear panel.
Step 5: Use the attached M6x10L screw to secure the protective cover.
Step 6: Complete installation.
