4. ADJUSTMENT AND TESTING
4.1 Adjustment and Testing with STC 95 Instrument
For the Microwave Barrier Adjustment and Testing, CIAS gives the availability of a dedicated
instrument, with the intention to facilitate installation operation and operator activity support.

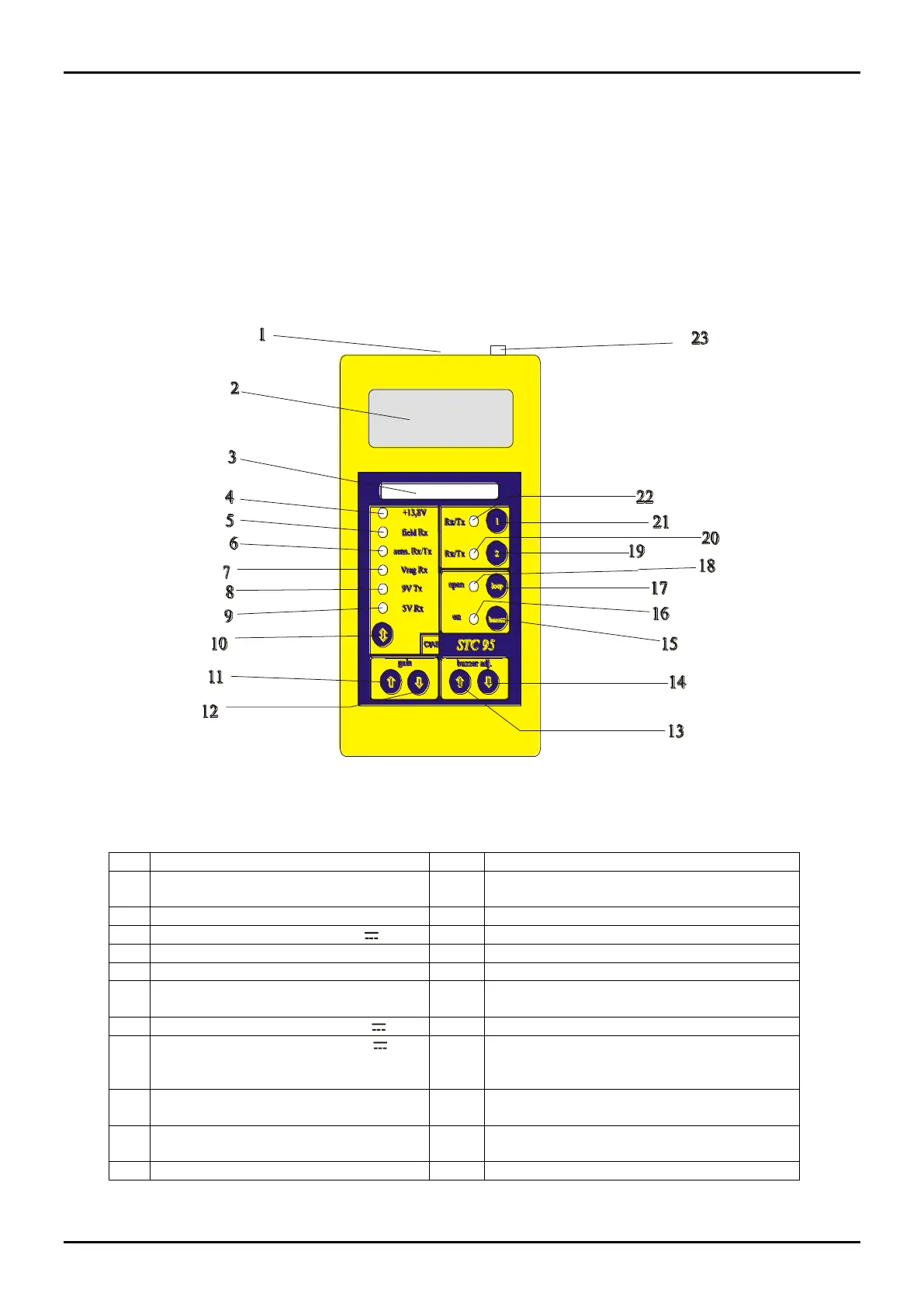

The following figure 10 shows the CIAS STC 95 instrument with function explanations.
Figure 10
1
3M connector
13
Increasing threshold Buzzer activation key.
2
LCD Display
14
Decreasing threshold Buzzer activation
key.
3
LED strip
15
Buzzer activation / deactivation key.
4
Power supply LED test 13,8 V
16
Buzzer activation LED
5
Received field LED test
17
Open / closed Loop key
6
Check Sens.RX / RF TX LED
18
Open loop LED indication
7
AGC LED check
19
Activation / deactivation tests key TX / RX 2
and Medusa
8
Power supply LED test TX 9 V
20
Test indication LED RX / TX 2
9
Power supply LED test RX 5 V
21
Measurement activation / deactivation key
TX / RX 1, MEDUSA, ERMO, ERMUSA,
MINERMO
10
Tests selection key
22
Test indication LED TX / RX 1, MEDUSA,
ERMO, ERMUSA, MINERMO
11
Manual increasing gain key
23
RCA for scope connection with supplied
cable
12
Manual decreasing gain key
