Installation Manual Page 33 of 51 Sioux Pro 2

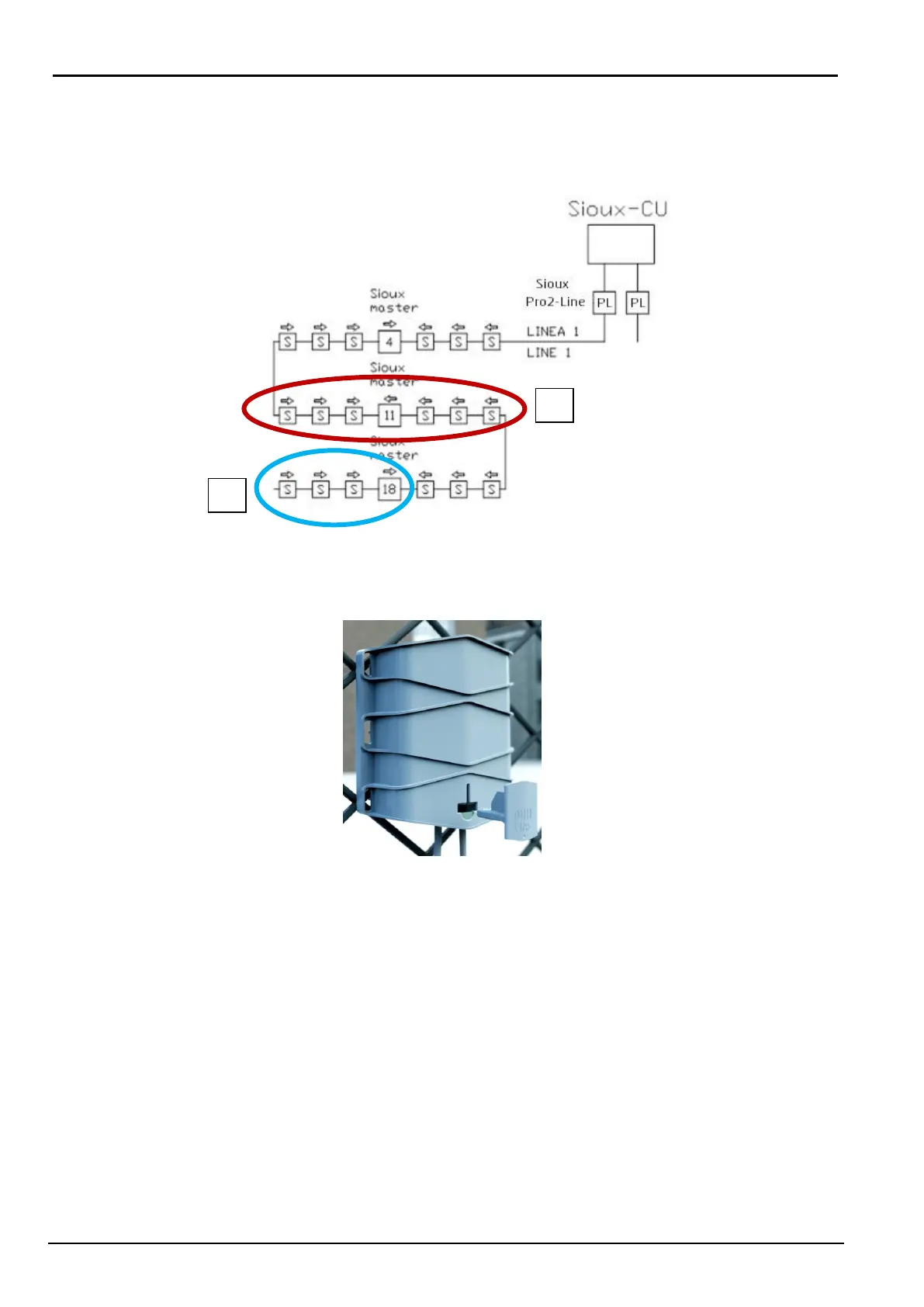

8) At the end of each branch, finish the installation as follow, Fig. 7 (indication G):
➢ 1 Master-Pro2 + termination line or redundancy
➢ 1, 2 o 3 Slave-Pro2 after the Master-Pro2 + termination line or redundancy
Fig. 7
9) Complete the assembly by inserting in all the boxes the detail that prevents the extraction
Fig. 8
F
G
