Installation Manual Page 35 of 51 Sioux Pro 2
3 CONNECTIONS
3.1 Circuit descriptions and functions
The following pages show the SIOUX PRO 2 components describing their various functions.
The system, in the maximum configuration, is designed for the protection of 1400m of fence and
is made up of the following components:
➢ 1 Sioux-CU-Pro2
➢ 2 SiouxPro2-Line
➢ 40 Sioux Master-Pro2 boards + boxes
➢ 240 Sioux Slave-Pro2 boards + boxes
➢ 1 Power supply 13,8 Vdc with battery charger
➢ 1 Cabinet for the Sioux-CU-Pro2 and the local power supply
➢ 1 Relay board (optional)
The connections between sensors will be done with 3,5m or 5,5m special cables provided by
CIAS.
The Sioux-CU-Pro2 available connections are:
➢ 2 RS485 serial lines for connection of the SiouxPro2-Line modules (see the specific
installation manual), to which line sensor connects, with associated power supplies
➢ 1 RS485 serial line (max 1,2 km) for connection to the IB-System-Rack, relay board or to
the Quasar control panel
➢ 1 Ethernet line for connection of the configuration software (Sioux-Test-Pro), or the Server
for acquisition (polling) of the alarms (IB-SystemIP)
➢ 1 USB line for the connection of a configuration software (local)

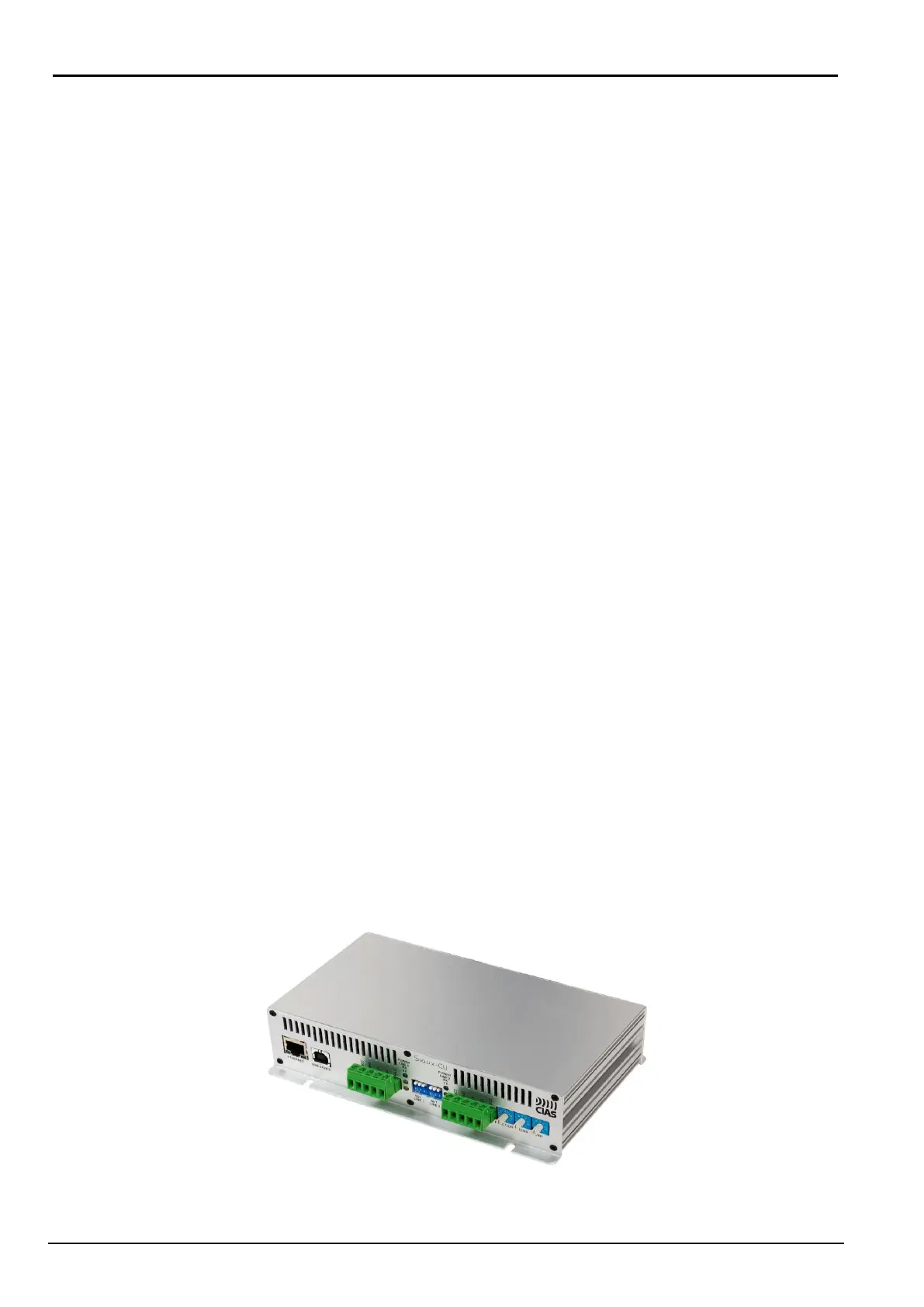

3.2 Sioux-CU-Pro2
Sioux-CU-Pro2 performs the control unit function within the system.
It collects the digitalized signals from the sensors, analyses them by means of sophisticate Fuzzy
Logic rules and, if alarm events are detected, send them via RS485 or IP.
In addition Sioux-CU-Pro2 stores all the events and associated signal values as logs and as a
monitor file. It has an internal clock for date and time, with a resolution of 1 second.
Sioux-CU-Pro2 can be powered with 13,8Vdc 1A (minimum), by a power supply or PoE (optional)
