When the Sioux-CU must be located at long distance away from the sensors it is necessary to
use a distribution box to which the two sensor branches are connected, together with a cable
(each one), which carries the signals and power to/from the Sioux-CU.

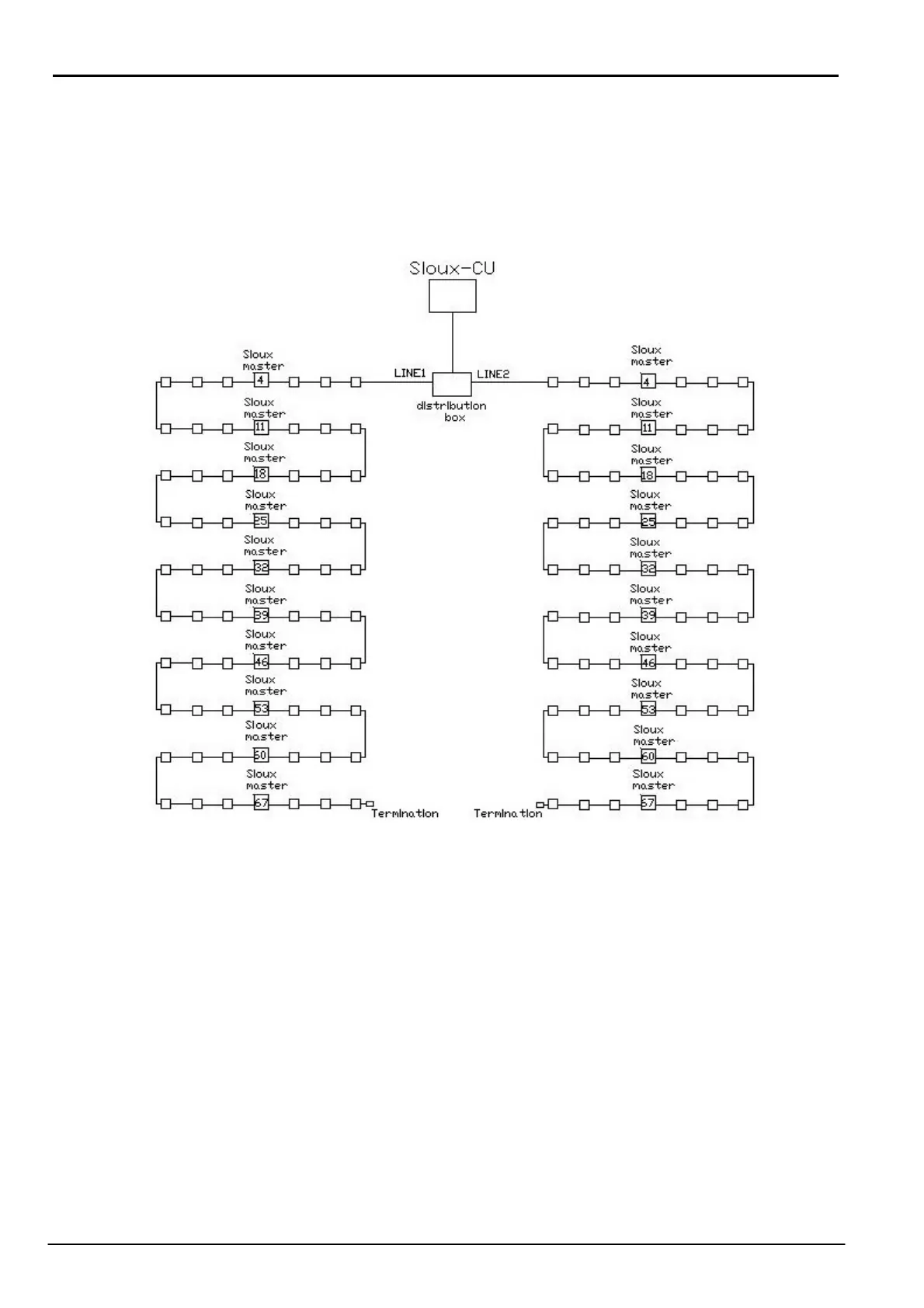

The figure below shows the related block diagram.
