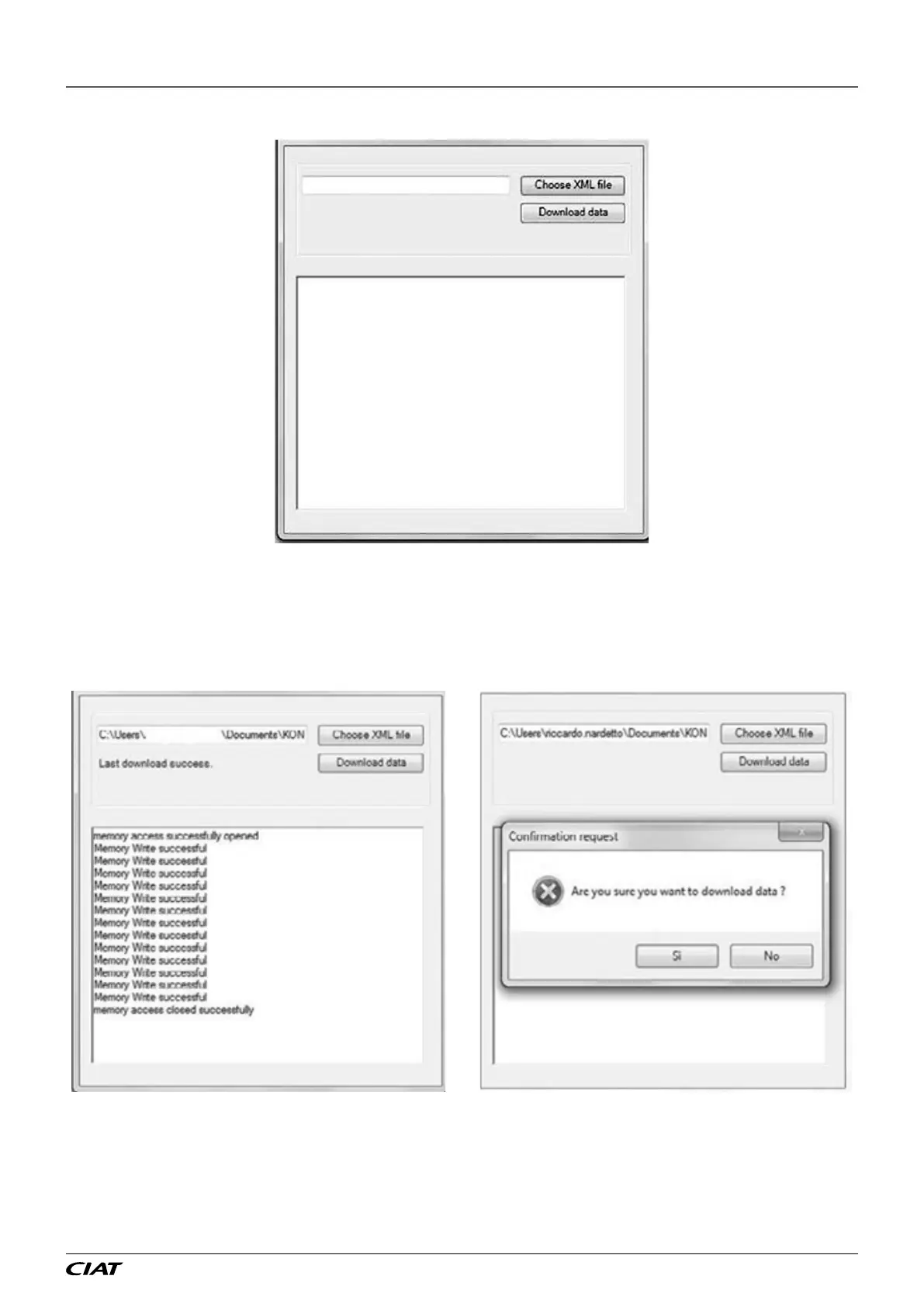

Use "Choose XML le" to open the XML conguration le required.
Click on "Download data" and conrm the conrmation request.
Wait for the message "Memory access closed successfully" to be displayed. During the loading phase indicated by the drop-down
control lines under ETS5, and while the green LED on the board is ashing, no other operation
can be performed. The download time may vary according to the size of the XML le and the network trac; for a maximum size
le, this time may be 2 minutes.
In extreme cases, i.e. high trac and large XML les, the bus may be disconnected and ETS5 will signal an error. In this case,
simply repeat the download.
NOTE:
This procedure is specic to the KNX board and is the only conguration operation permitted by the ETS5 program, other than
allocation of the address.
The KNX datapoints loaded via this plug-in do not appear in the Group Objects tab. To check and/or modify your group addresses,
you need to re-open your xml le from KSet and, once the modications are complete, upload it via the ETS plugin.
Our PLC does not have any conguration parameters accessible within KNX. They can only be accessed from the HMI terminal.
