CIAT GeoCIAT - Hydraulic Connections Procedure

EN
EN - 9
OUTLET
OUTLET
INLET
INLET
OUTDOOR
CIRCUIT
INDOOR
CIRCUIT
Mandatory 3 bar valves
Shut-off valve
Screen filter valve
(option)
Screen filter valve
(option)
Shut-off valve

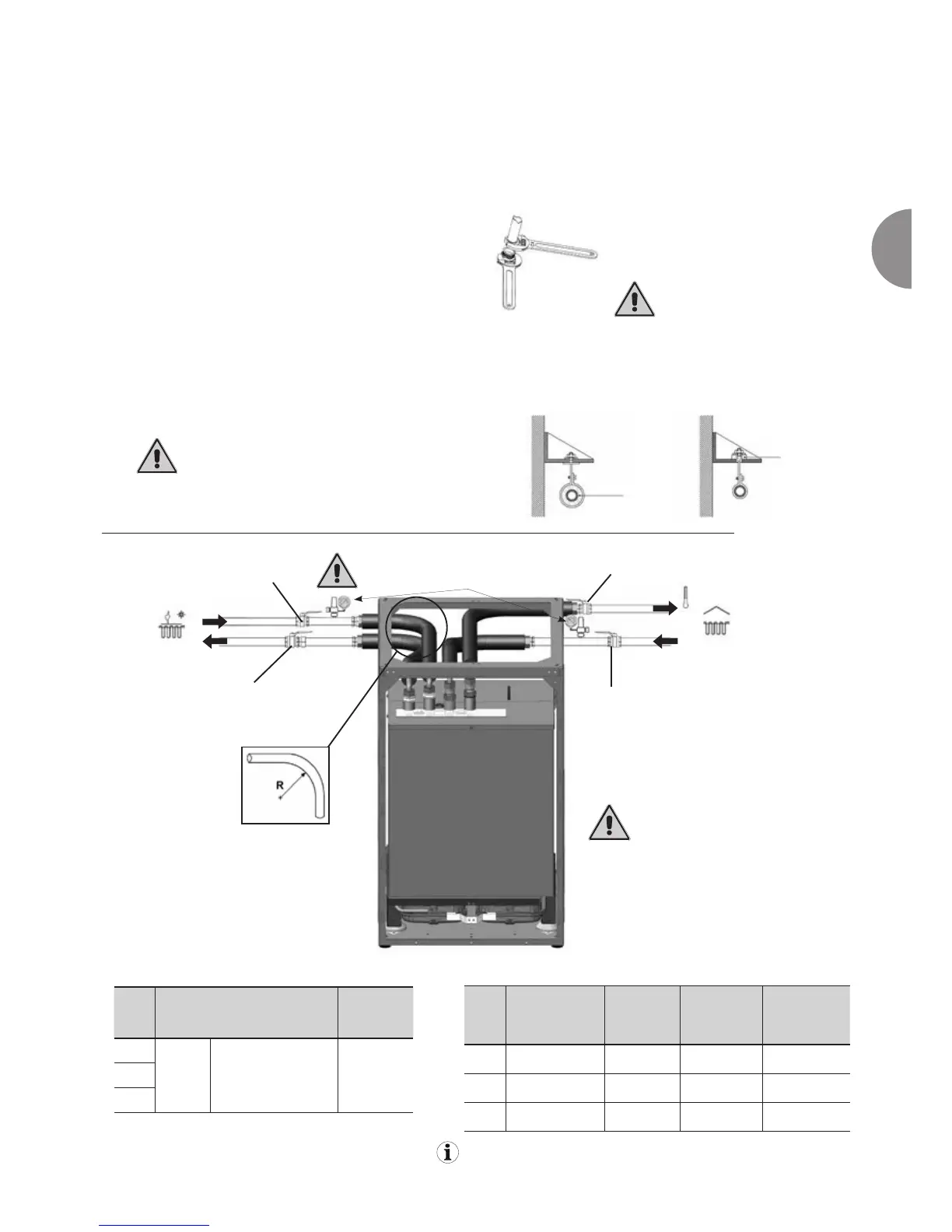

2.2 Hydraulic connections
Pipes
Adhere to the installation standards and trace the pipe routing
carefully:
 observe the drain direction (inlet/outlet) indicated on the unit
 the following accessories are essential to any hydraulic system
and must also be installed
- 3 bar valve-gauge assembly (mandatory)*
- automatic air bleed valves at high points
- discharge nozzles at low points
- balancing valves
- additional expansion vessels if necessary
- thermometer pockets, etc.
* the safety valve, which is mandatory on the hydraulic circuit,
must be tested manually at least once a year.
 the pipes and tubes should not transmit any forces or
vibrations to the exchangers. Hoses must be used to connect
water pipes.
 use at least 2 shut-off valves on each circuit in order to isolate
the unit
- screw in the system's flexible connectors/pipes
by hand
- tighten them using two spanners
Failure to tighten with two
spanners could cause the
couplings to rupture and
may result in the equipment
warranty being voided.
Fasten the water pipes to the walls with brackets lined with highly flexible rubber to prevent the transmission of vibrations.
vibration-damping
material
vibration-damping
material
Insulate the pipes and hoses carefully to prevent heat
loss and condensation.
Nominal flow
rate (m
3
/h) for
hot water
production
Copper pipe
hydraulic
connection
Steel pipe
hydraulic
connection
PE
(polyethylene)
pipe hydraulic
connection
20H 1 28X1
33/42 - DN32
1”1/4
32 x 2.9
33H 1,3 28X1
33/42 - DN32
1”1/4
32 x 2.9
45H(T) 1,7 32X1
33/42 - DN32
1”1/4
40 x 3.7
Inlet/outlet diameter
indoor/outdoor circuits
Min. bend
radius (R) of
hoses (mm)
20H
∅ G 1” Male gas nipples 14033H
45H(T)
System pipe diameters and nominal flow ratesUnit outlet pipe diameters
Diameters calculated for a 15m hydraulic connection between the
heat pump and the system outlet.
A screen filter must be added
to the heat pump's primary and
secondary circuits. Failure to
follow this instruction may result
in blocked or fouled exchangers.
CIAT accepts no responsibility for
clogging or malfunctioning of the heat
pump in the event of failure to install
screen filters.
ALWAYS COMPLY
WITH THE HOSE BEND
RADIUS
