EN - 42
Setpoint P152 corrected
P154
P154 -
(P152-P153)
P156 P155
Setpoint value setting
P152 (or P153 if ECO
setting)
Outdoor temperature P250
Setpoint P152 corrected
P154
P154 -
(P152-P153)
P156 P155
Setpoint value setting
P152 (or P153 if ECO setting)
Outdoor temperature
P250
Corrected control setpoint (P253)

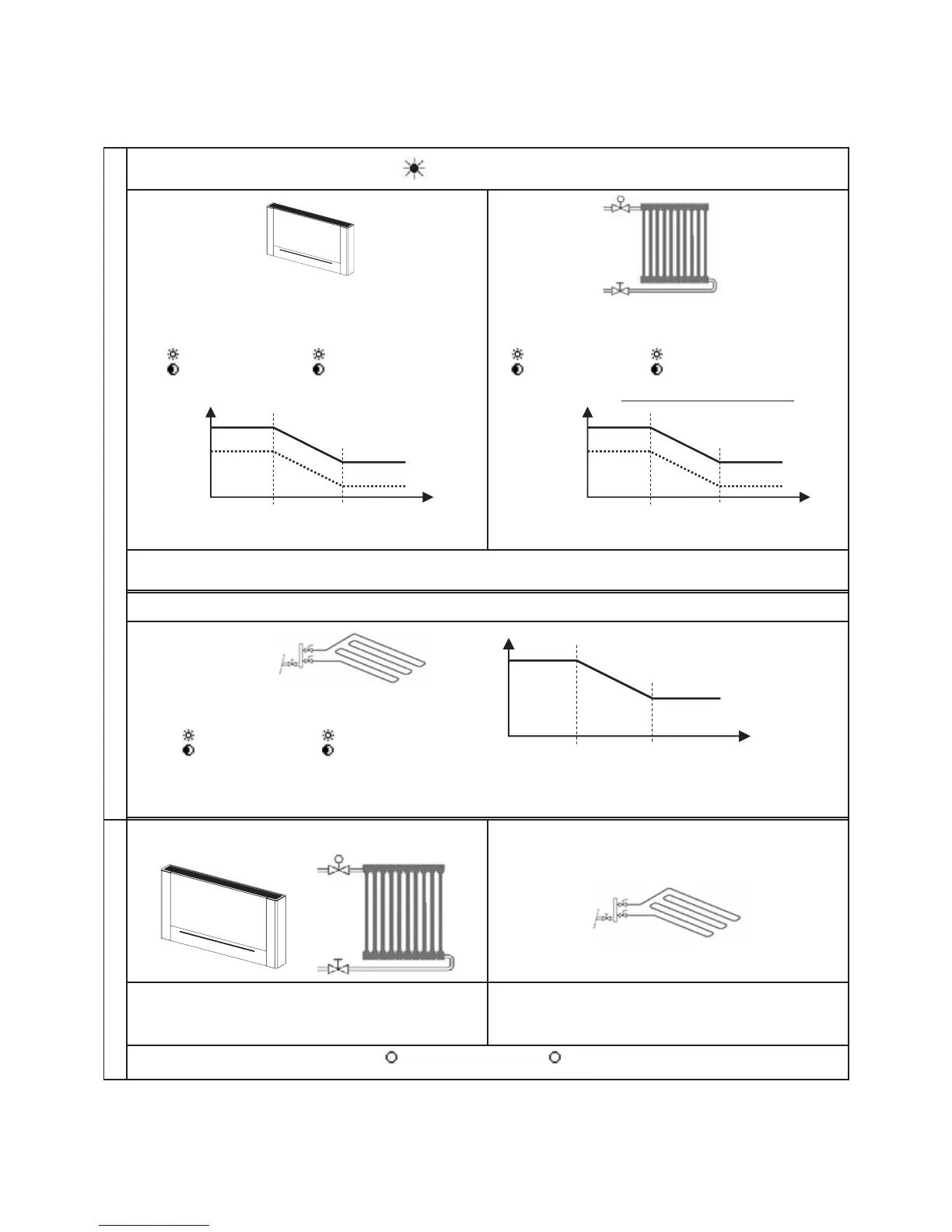

5.4 Operating modes
Adjust parameter P07 = Type of heating emitter as shown below for your system and the desired operating mode:
HEATING MODE
CU type system: P07 = FAN or RADIATOR
Control without indoor environment compensation P105 = 0
(control on the water return only).
Water setpoint = P152: heating setpoint
Water
setpoint = P153: heating setpoint
Control with indoor environment compensation (P105 ≠ 0)
(control on the water return depending on the difference between
the ambient temperature and the air setpoint).
Air
setpoint = P150: hot air setpoint
Air
setpoint = P151: hot air setpoint
The maximum water setpoint is limited to 55°C if P11 = NO or ELECTRIC
The maximum water setpoint is limited to 70°C if P11 = BOILER
UHCS type installation: P07 = UHCS
Air setpoint = P150: hot air setpoint
Air
setpoint = P151: hot air setpoint
Setpoint P152 corrected
P154
P156 P155
Setting setpoint value
P152
Outdoor temperature P250
The maximum water setpoint is limited to 40°C
ABSENCE MODE
CU type system: P07 = FAN or RADIATOR
UHCS type installation: P07 = UHCS
Heating by heat pump. Water return limited to 27.5°C min. Heating by heating elements with no water return limit. If there are
no heating elements, heating is provided by the heat pump with a
minimum water return temperature of 21°C.
Air
setpoint = P170: frost-free setpoint
