COOLING MODE
CU type system: P07 = FAN
Control without indoor environment compensation P105 = 0
(control on the water return only).
Water
setpoint = P132: cooling setpoint
Water
setpoint = P133: cooling setpoint
Control with indoor environment compensation (P105 ≠ 0)
(control on the water return depending on the difference between
the ambient temperature and the air setpoint).
Air
setpoint = P130: cool air setpoint
Air
setpoint = P131: cool air setpoint
The air comfort setpoint P130 activates the water control with P132
as the water comfort setpoint.
The air economy setpoint P131 activates the water control with
P133 as the water economy setpoint.
UHCS type installation: P07 = UHCS
The air setpoint activates control. The outdoor temperature does not affect the setpoint value.
The air comfort setpoint P130 activates the water control with P132 as the water comfort setpoint.
The air economy setpoint P131 activates the water control with P133 as the water economy setpoint.
Air
setpoint = P130: cool air setpoint
Air
setpoint = P131: cool air setpoint
Ambient temperature (P251)
P131
Ambient
temperature
setpoint
in cooling
mode on
thermostat

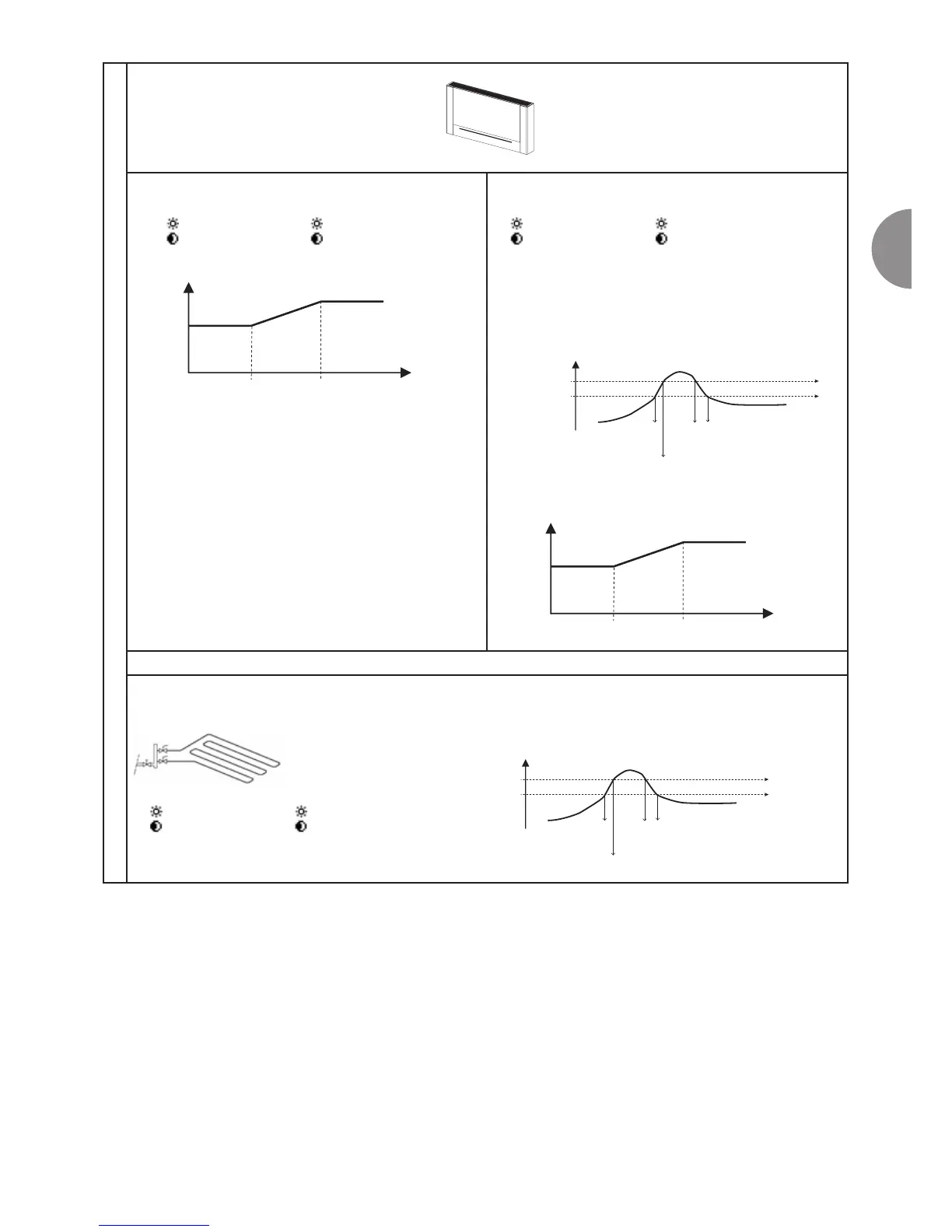

Temperature
Setpoint P132 corrected
P132
P135 P136
Increase in the setpoint
when the outdoor
temperature rises
Outdoor temperature P250
Setpoint P132 corrected
P132
P135 P136
Increase in the setpoint
when the outdoor
temperature rises
Outdoor temperature P250
P130
Deactivation of
corresponding
control
Activation of control on
water return = P133
Activation of control on
water return = P132
Economy setpoint
Comfort setpoint
Ambient temperature (P251)
P131
Ambient
temperature
setpoint
in cooling
mode on
thermostat
Temperature
P130
Deactivation of
corresponding
control
Activation of control on
water return = P133
Activation of control on
water return = P132
Economy setpoint
Comfort setpoint
P105 not 0
