EN - 14

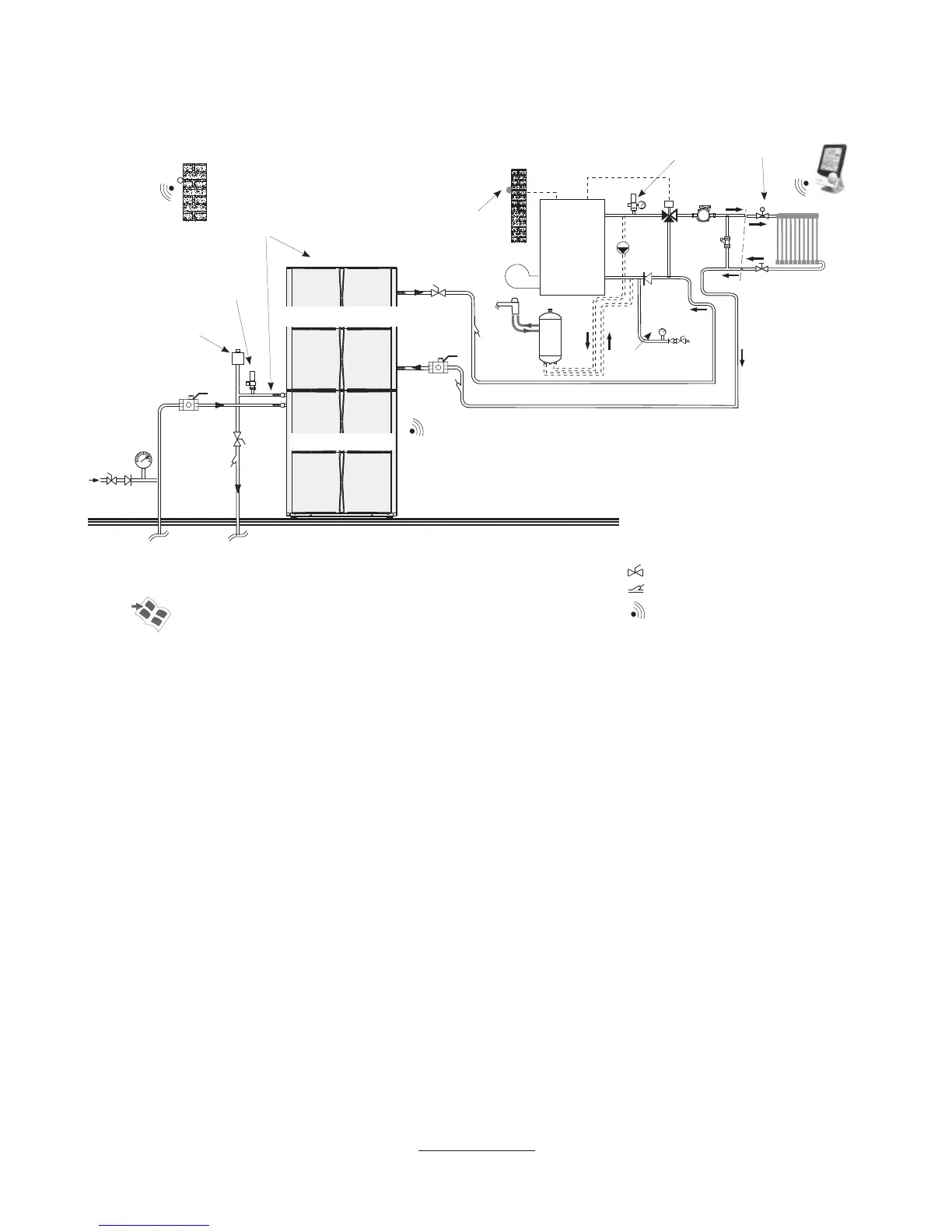

D- Connection with boiler back up operation
Note: the schematic diagrams herein are provided for information only. Under no circumstances do they constitute actual
installation diagrams.
Shut-off valves
Thermometer pockets
Radio signal
Charged via
municipal water
supply
Comfort unit type
heating emitters
If using an under-
floor heating/cool-
ing system, the
UHCS
safety thermostat
kit option is
recommended.
BOILER
3 bar
safety valve
mandatory
Thermostatically
controlled valve
Boiler out-
door
sensor
Accelerator
pump
Check valve
+ pressure gauge
Screen
filter valve
Screen
filter valve
Automatic
degassing device
Domestic hot
water boiler
CAPA 100L
Flexible connections
(mandatory)
Safety
valve
(3 bar)
HomeConnect
Outdoor
sensor
see p10 and p11
TO OUTDOOR CIRCUIT
GeoCIAT
TM
Modular
