EN - 16

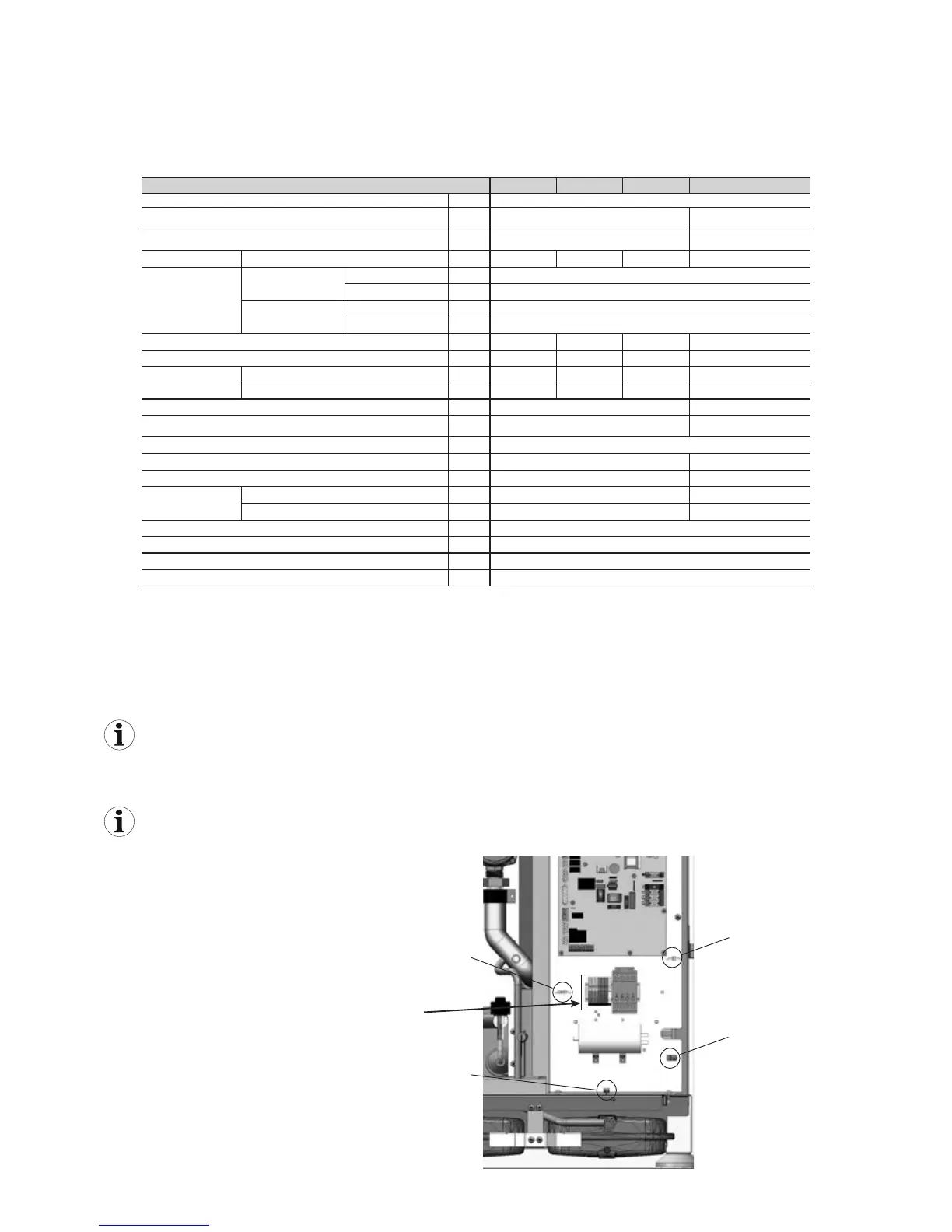

2.3.2 Cable routing
To facilitate the installation of the unit's power supply cables and optional kits, cable trays, Omega type fasteners and cable
clamps are provided.
Accessibility to the GeoCIAT
TM
Modular's electrical section is detailed in paragraph 4.1
GeoCIAT
TM
Modular
20H 33H 45H 45HT
Electrics box maximum temperature °C 45
Unit supply Terminals J3, J4, J5
Terminals J1, J2, J3,
J4, J5
Nominal voltage 230V - 1ph + N + E - 50Hz
400V - 3ph + N + E -
50Hz
Compressor Maximum operating current A 12,8 17,1 22,8 7,4
Accelerator pump
Indoor pump
power W Min: 3.8 Max: 70
current A Min: 0.04 Max: 0.52
Outdoor pump
power W Min: 5.7 Max: 87
current A Min: 0.06 Max: 0.71
Current of entire unit (max) A 14,18 18,48 24,18 8,78
C or D curve thermal magnetic circuit breaker (not supplied) Am 16 20 32 10
Electrical cables
(not supplied)
PVC insulation(1) mm
2
3G2.5 3G4 3G6 5G1.5
PVC V2K insulation (2) mm
2
3G1.5 3G2.5 3G2.4 5G1.5
Electric heating element supply Terminal block J45 Junction blocks
Nominal voltage 230V - 1ph + N + E - 50Hz
400V - 3ph + N + E -
50Hz
Loop heater power kW 4
Max current A 17,4 6
C or D curve thermal magnetic circuit breaker (not supplied) A 20 10
Electrical cables
(not supplied)
PVC insulation(1) mm
2
3G4 5G1.5
PVC V2K insulation (2) mm
2
3G4 5G1
All or nothing inputs Terminal blocks J11 and J12
Input, bypass, absence, Cooling/Heating, DHW, limiter thermostat mm
2
0.2 - 1
Potential-free contacts Terminal blocks J33, J45 and J46
Boiler ON contact and three-way valve mm
2
1,5
2.3.1 Electrical specifications
The cross-section of the supply cable must be carefully selected based on:
- the maximum current of the unit and the electric heating element
- the distance between the domestic electrics box and the GeoCIAT
TM
Modular
- the room temperature
- the upstream protection and the neutral operating conditions
(1) Cable with 3 or 5 conductors for temperatures below 70°C and for a maximum length of 30 m
(2) Cable with 3 or 5 conductors for temperatures below 90°C and for a maximum length of 30 m
Note: all connections must be wired in compliance with the regulations that apply to the location where the system is installed (e.g.
NF C 15 -100 in France) and are under the responsibility of the installer. Failure to comply with the requirements of the above
standards will invalidate the CIAT warranty.
For terminal J45, the tightening torque must be at least 0.6 Nm.
To be added as an option
(e.g. 4kW GeoCIAT
TM
Modular
heating element kit)
For the electric heating element
kit (option), use the cable clamp
(3)&(4)
Customer supply cable clamp (1) and
omega fastener (2)
20H model
