CIAT V300 - Centralised Management with V300

EN
EN - 19 N 12.54 D
The comfort units (ductable, air handling units or cassettes), which are all independent, are equipped with V300 control.
Each comfort unit has its own comfort temperature sensor.
A centralised timer comprising a zone controller and a wired LCD terminal in an electrical cabinet outside the zone enable remote
centralised management of this loop. A terminal is connected to this controller for adjusting and operating the system.
The timer is integrated in this controller to ensure time management of the Comfort/Economy/Frost protection/Off modes.
. The terminal is used:
→ To set the integrated daily/weekly timer
→ To distribute all the comfort units across 6 self-contained zones
→ To determine, for each zone, the hourly management of the 4 modes (Comfort/Economy/Frost protection/Off)
→ To set, for each zone:
• The heating and cooling Comfort setpoints
• The heating and cooling Economy setpoints
• To override the time slots per zone, or for the entire building.
. The "zone" controller therefore enables management of the entire building for:
→ The locally authorised setpoint shift range
→ Adjustment of the comfort restart time on the local wall-mounted terminal
→ Possible central changeover
→ Advance heating restart based on the outdoor temperature (depending on options)
Refer to manual No.14-13 for all possibilities and settings for the V300 zone timer.

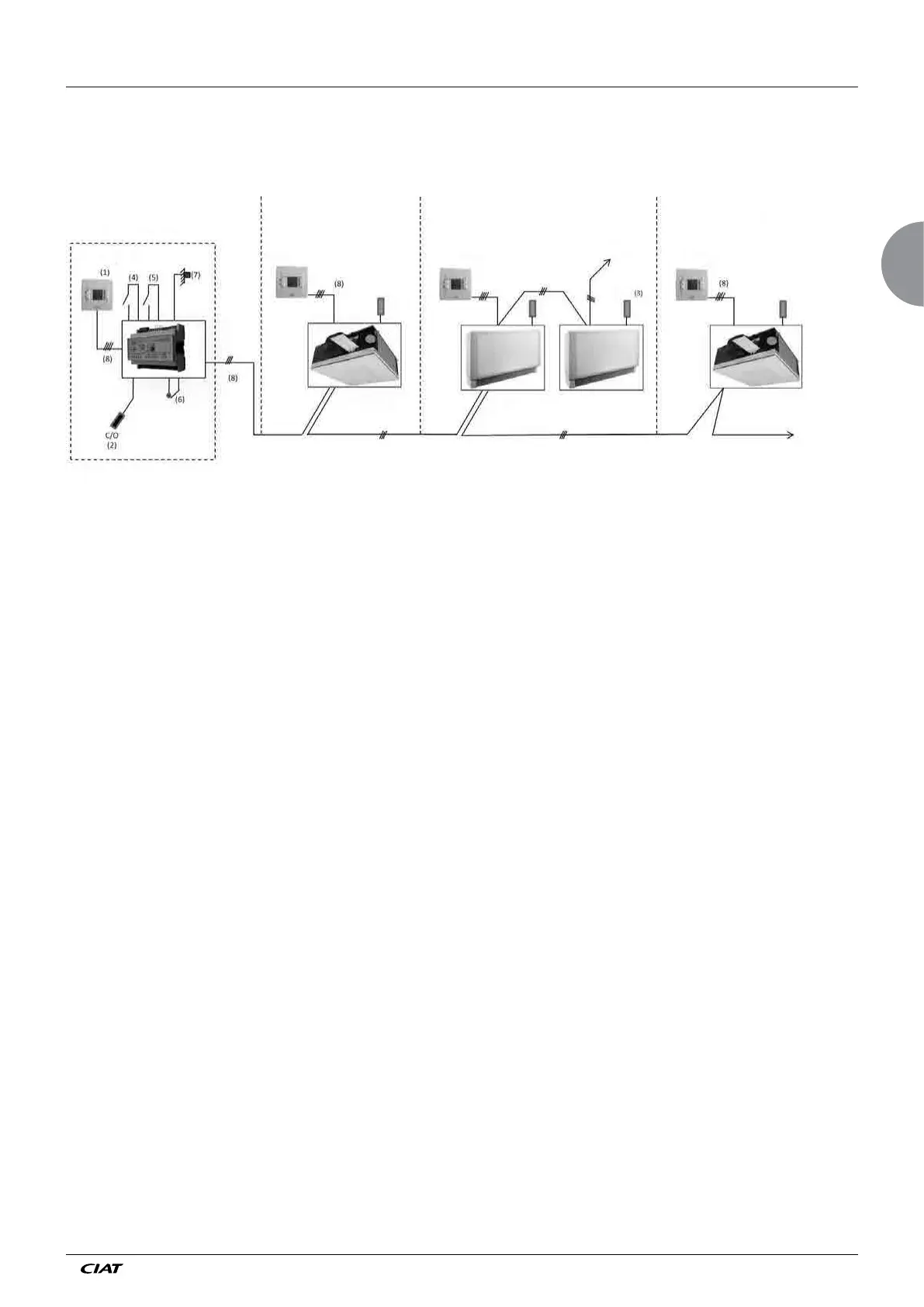

Office 1 Office 2 Office 3Zone timer
Zone timer terminal
Electrical cabinet
V300
controller
V300 terminal V300 terminal
V300 terminal
Sensor
Sensor
Sensor
Sensor
V300 integrated
"Individual" controller
V300 integrated
"Slave" controller
V300 integrated
"Master" controller
V300 integrated
"Individual"
controller
To other offices/V300 Individual or
master controller (max. 30)
Maximum: 30 offices (corresponding to Master and/or individual units)
CIAT offers centralised management with the V300.
Management by centralised zone timer for comfort units.
18 - CENTRALISED MANAGEMENT WITH V300
