CIAT's V300 control is designed for use with system-powered comfort units (AHUs, cassettes, etc.) in 2-tube, 2-tube/2-wire and
4-tube applications using recirculated air
It can be used to follow a time schedule (connected to the V300 zone timer as an option) and operate using a master/slave
function. It controls 230 V thermo valve actuators.
The V300 system comprises a controller integrated in the comfort unit and a user terminal for adjusting the setpoints and
operating modes.
The terminal is available in a wall-mounted wired version (to be connected to the controller by the installer), a flush-mounted
version (assembled and connected in the factory), and a radio-frequency version (terminal + receiver supplied in kit form)
Main functions:
- PI action
- Controlling a 3-speed or HEE fan, automatically or manually.
- Automatic heating/cooling switching with changeover sensor (2-tube application).
- 2 potential-free inputs for window switch, alarm or timer.
- 4 operating modes: Comfort/Economy/Frost protection/Off
Eubac certification
• The V300 controller is Eubac-certified under licence No.215472
• The corresponding CA values are as follows:
Applications: → 2-tube: Heating: 0,1 Cooling: 0,1
→ 2-tube/2-wire: Heating: 0,2 Cooling: 0,1
→ 4-tube: Heating: 0,1 Cooling: 0,1
• Labelling: AA
Note:
- These values are obtained with the CIAT NTC 10k Ω return air temperature sensor at 25°C
- These values can be viewed on the Eubac certification website: http://www.eubaccert.eu

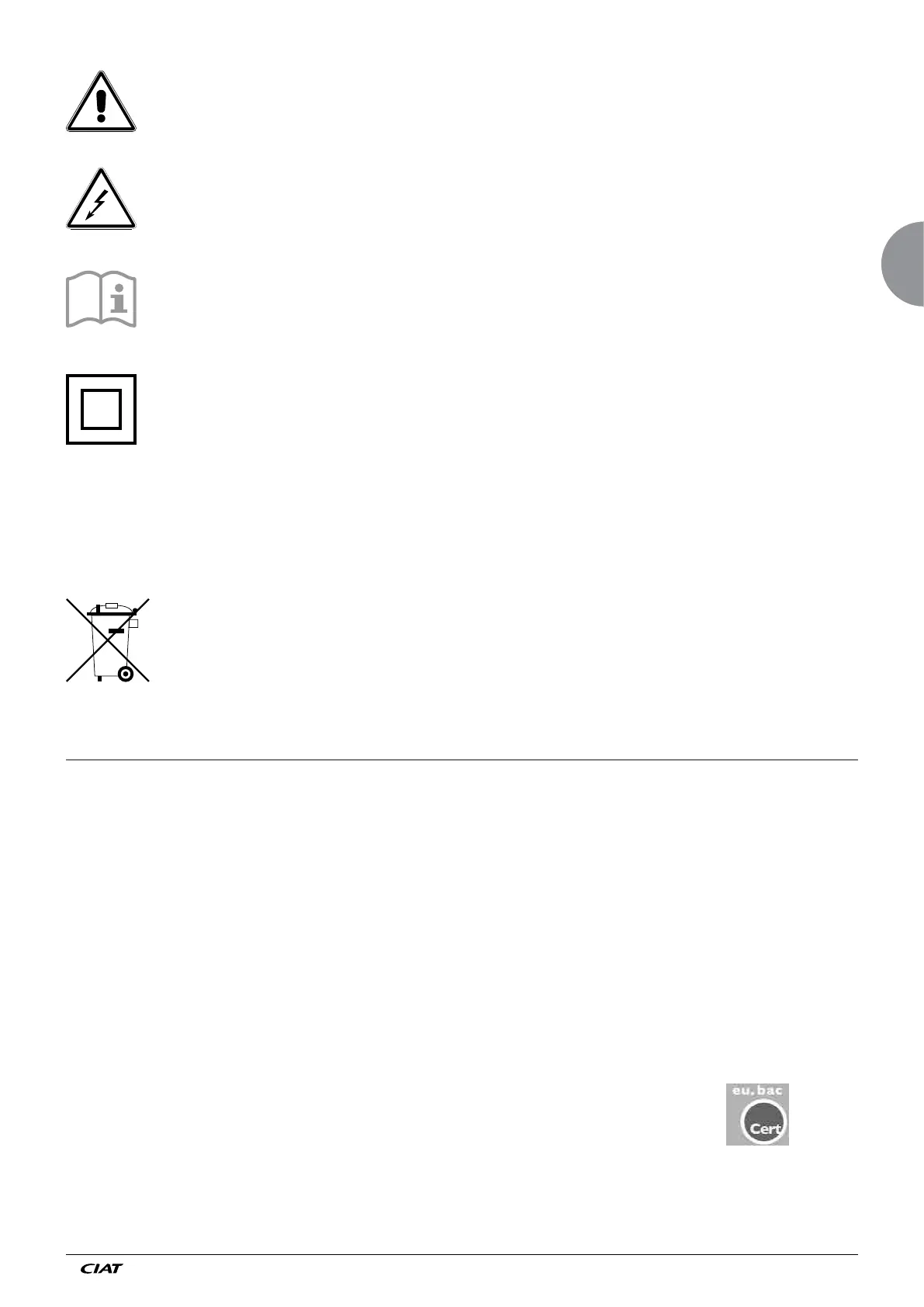

General danger : If the instructions are not followed, there is a risk of equipment damage.
Electrical danger : If the instructions are not followed, there is a risk of electrocution and
injury.
Read the instructions in this manual.
Part of Class II equipment
Protective device Devices that protect against overloads, short circuits and earth faults must conform to standard NF C 15-100,
and must be part of the building in which the equipment is installed. The circuit breaker must be designed for a nominal current
in Amperes that corresponds to the CIAT equipment model purchased.
Waste disposal by users in private households within the European Union.
This symbol, either on the product or its packaging, indicates that the product must not be disposed of in ordinary
household waste. Instead, it is your responsibility to ensure that you dispose of your waste by taking it to a
designated recycling point for electrical and electronic devices. Separating your waste for recycling during disposal
helps preserve natural resources, protect the environment and safeguard health. To find your nearest recycling
centre, contact your local council, waste disposal service or the store from which you purchased the product.
