ACCESSORY CONTROL PORT AND CABLE

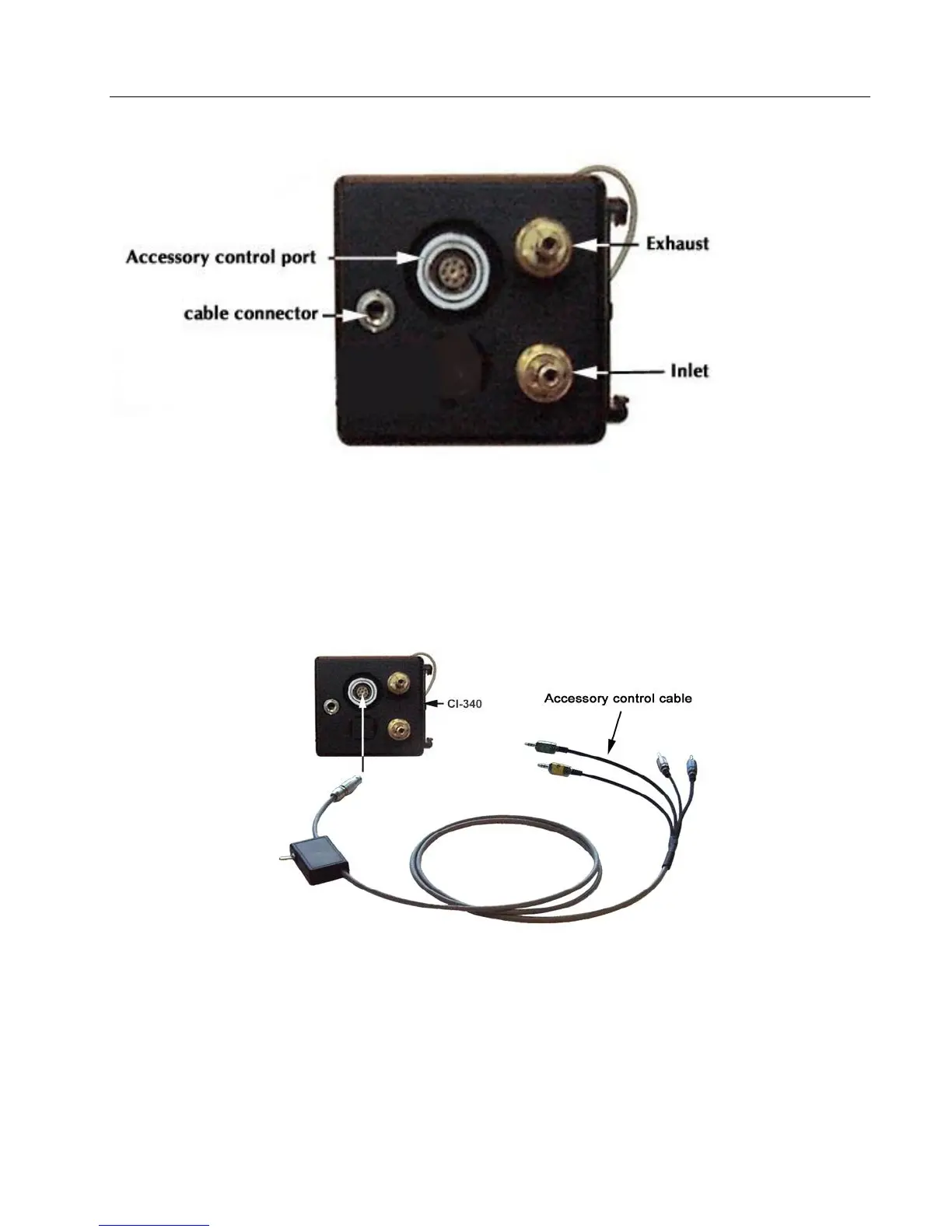

Figure 14-4. CI-340 Accessory Control Port.
The colored jacks on the accessory control cable (Figure 14-5) indicate the accessory / module to plug
into. The red plug goes to the CI-510CS, the blue to the CI-301LA, green to the CI-510CF, and the
yellow plug to the CI-301AD.
Figure 14-5. Accessory Control Cable with color indicating jacks.
