WELDSKILL 100, 135, 150 MIG
3-11
Installation
3.14 Inserting Wire into the Wire Feed Mechanism
Lift up the pressure arm and pass the electrode wire through the inlet guide, between the rollers, through the
outlet guide and into the MIG torch. Lower the pressure arm and adjust the pressure accordingly. Plug the
mains supply lead into a suitable 240VAC outlet and turn the front panel Control Power switch to ON. With
the Mig Torch lead reasonably straight, feed the wire through the torch by depressing the trigger switch. Fit
the appropriate contact tip for the electrode wire size being used.
!
WARNING
The electrode wire will be at welding voltage potential whilst it is being fed through the system.
!
WARNING
Keep Mig Torch away from eyes and face.

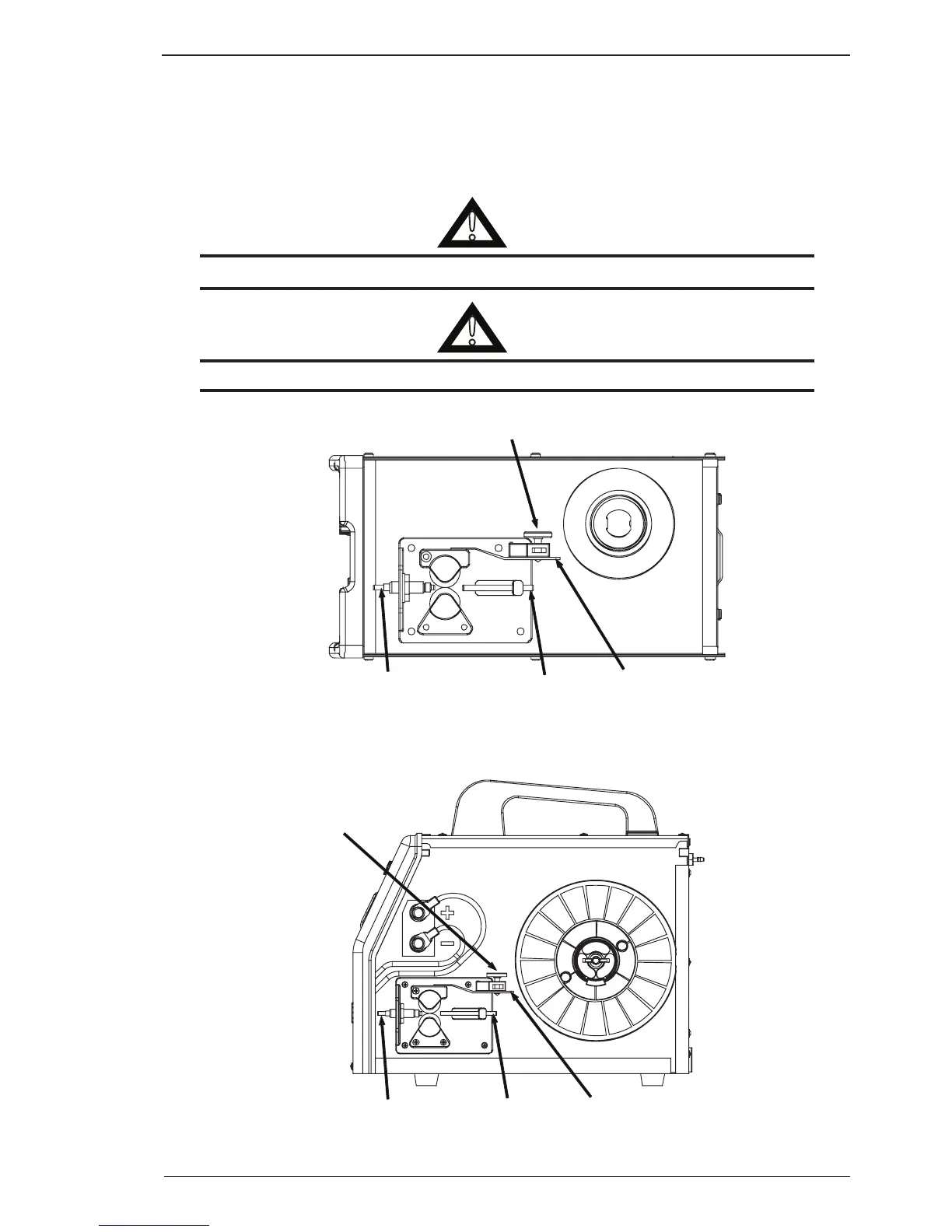

Outlet Guide
WeldSkill 100 MIG
Inlet Guide
Pressure Arm
Wire Drive
Pressure Screw
WeldSkill 135 and 150 MIG
Outlet Guide
Inlet Guide
Pressure Arm
Art # A-09014_AB
Wire Drive Pressure Screw
Figure 3-11 WeldSkill 135 Mig and 150 Mig
