RGU-10 B, RGU-10 B RCM
Instruction Manual
Trip sensitivity
Instant current
leakage
Prealarm
conguration
Prealarm reclosing
Contact
polarity
Trip delay

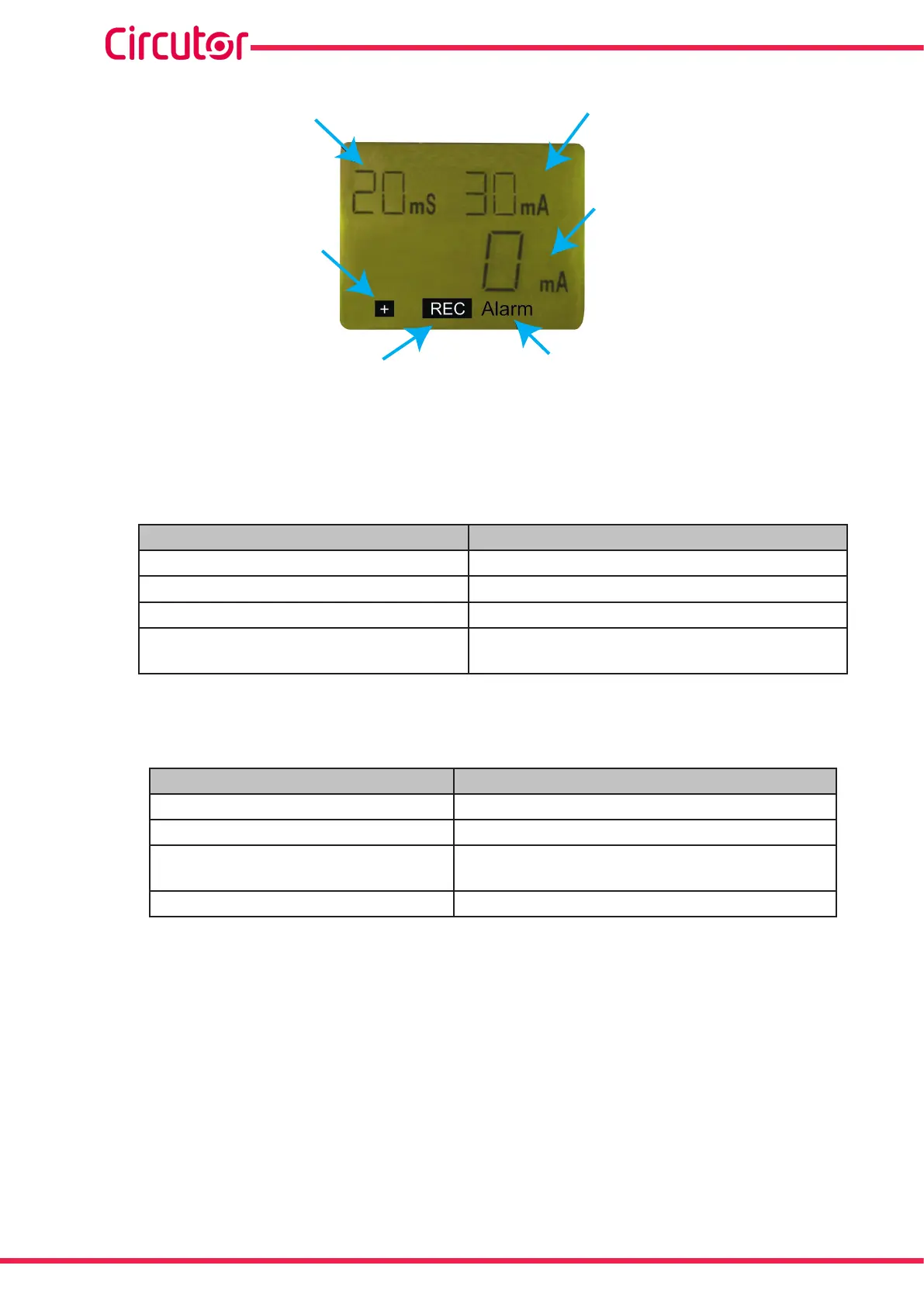

Figure 11: Descripción display.
In normal operating status the display shows the following parameters associated with the earth leak-
age protection, Table 8.
Table 8: Parameters visible by display.
Parameter Units
Instant current leakage mA / A
Programmed trip delay, td ms / s
Programmed sensitivity of trip, Id = I∆N mA / A
Contact status: Tripping relay
+ (contact 13-15 NO) / nothing (contact 13 - 15 NC)
+ (contact 14-15 NC) / nothing (contact 16 - 15 NO)
The RGU-10B allow the display and setting of all required parameters to complete the earth leakage
protection adjustment with prealarm, Table 9.
Table 9: Adjustment parameters.
Parameter Units
Programmed prealarm trip delay ms / s
Sensitivity of pre-alarm in % I∆N %
Contact status: Prealarm relay
+ (contact 4-6 NO) / nothing (contact 4 - 6 NC)
+ (contact 4-5 NC) / nothing (contact 4 - 5 NO)
Operating frequency Hz
