25
Instruction Manual
RGU-10 B, RGU-10 B RCM
Environmental features
Operating temperature -10ºC ... +50ºC
Storage temperature -20ºC ... +55ºC
Humidity (without condensation) 5 ... 95%
Maximum altitude 2000 m
Protection degree
Assembled device: IP41 (Front)
Unmounted device: IP20 (Sides and back cover)
Mechanical features
Dimensions Figure 22
Weight 168 g.
Enclosure V0 Polycarbonate plastic
Fixing DIN Rail - Panel by accessory
Terminals
7 mm 0.127 ... 2.082 mm
2
0.5 ... 0.6 Nm
Bar 0.4x2.5x80 mm
Length: 160 mm
52,5
67,9
43,5
45
85

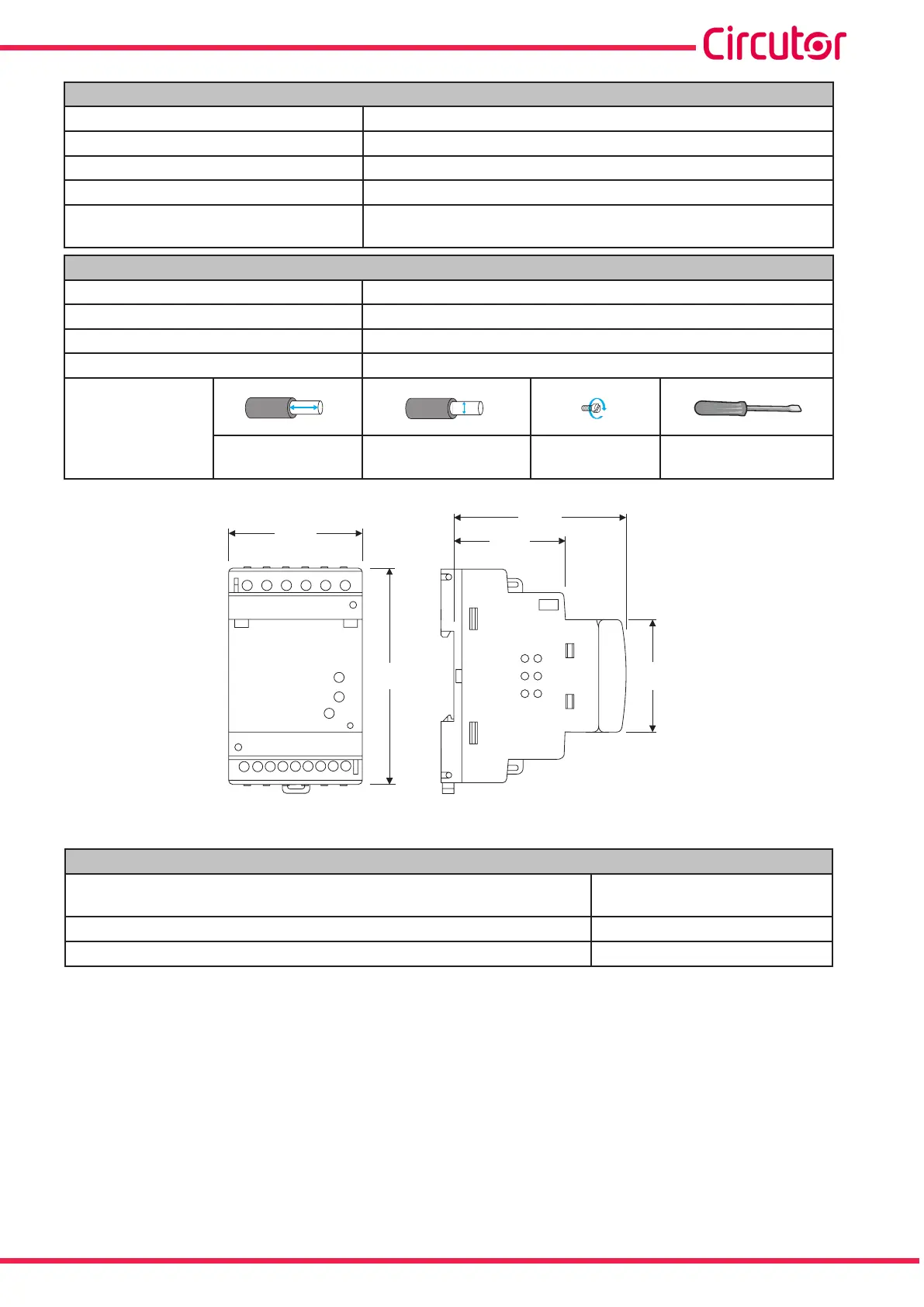

Figure 22: RGU-10 B Dimensions.
Standars
Electrical accesories. Residual current monitors for household and similar
uses (RCMs)
UNE-EN 62020
Low-voltage switchgear and controlgear - Part 2: Circuit-breakers UNE-EN 60947-2-M
General requirements for residual current operated protective devices IEC 60755
