SPECIFICATIONS

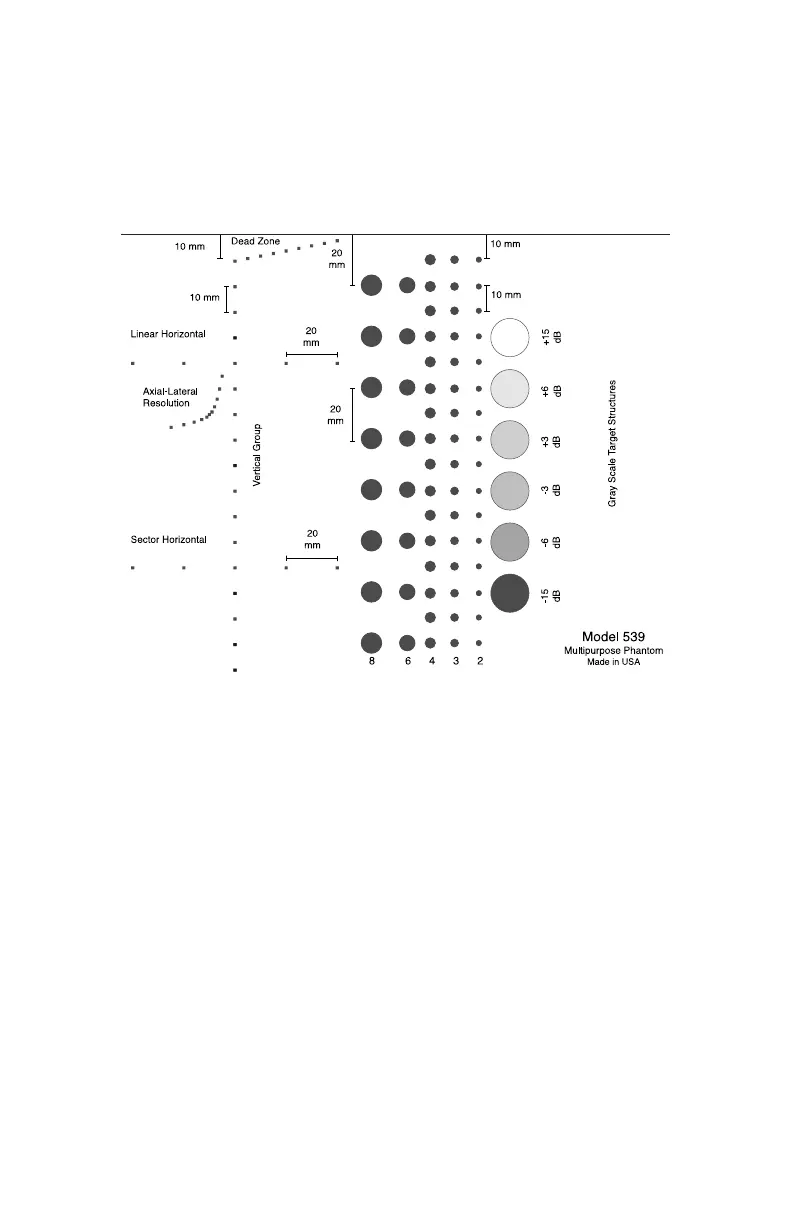

TARGET LAYOUT
PHANTOM
Housing PVC
Outer Dimensions 23.4 x 20.5 x 9.5cm
Scanning Surface 17.5x7.5 cm 14.0 x7.5 cm
Scanning Material Urethane Rubber
Speed of Sound 1450 m/s at 23°
WIRE TARGETS
Material Nylon monolament
Size 6-12mm
Trim this edge only before applying. Align edge to top edge of Phantom.
INSTRUCTIONS:
MATERIAL: IJ-39 Vinyl-Polycarbonate Laminate
COLOR: ALL ARTWORK COLORS BASED ON PANTONE SYSTEM AND CMYK EQUIVALENTS
900 Asbury Ave
Norfolk, Virginia 27613
800-617-1177 / 757-855-2765
PRODUCT LABEL SPECIFICATIONS
APPROVED
NAME:
FILE:
DATE:
PART NO:
APPLICATION:
ATS 539 Multi-Purpose Phantom
RTPC_Target LBL 539_102620
102620
ATS 539
Adobe Illustrator
SCALE:
SIZE:
TRIM TO CROP MARKS
1:1
X
24.7 cm x 22.5 cm
