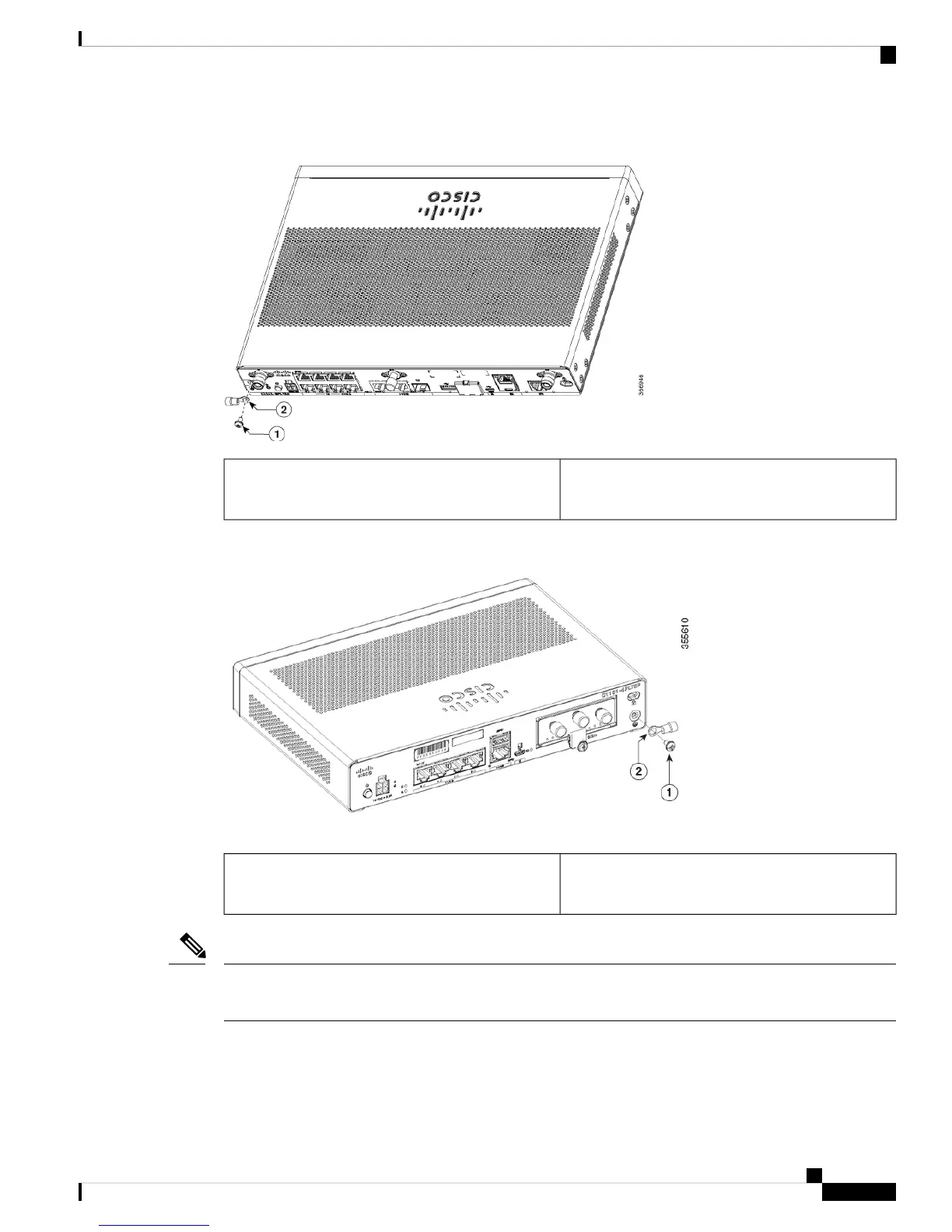

Figure 22: Chassis Ground Connection-Cisco 111x
Screw (UNC 6-32)1
Ground Lug2
Figure 23: Chassis Ground Connection-Cisco 1101-4PLTEP
Screw (UNC 6-32)1
Ground Lug2
The C1109-2PLTE and C1109-4PLTEP should be permanently grounded when you use outdoor antenna for
LTE pluggable modules.
Note
Hardware Installation Guide for the Cisco 1000 Series Integrated Services Router
33
Install and Connect the Router
Chassis Grounding
