Power Switch2Grounding1
4-pin Power Connector4Reset Button3
SFP6LAN:0-45
Micro-USB console Port8USB 3.07
Kensington Lock Slot10LTE Antennas – Main and
Diversity
9
LED Indicators
The following figures and table summarizes the LED indicators that are located in the bezel or chassis of the
C111x series.

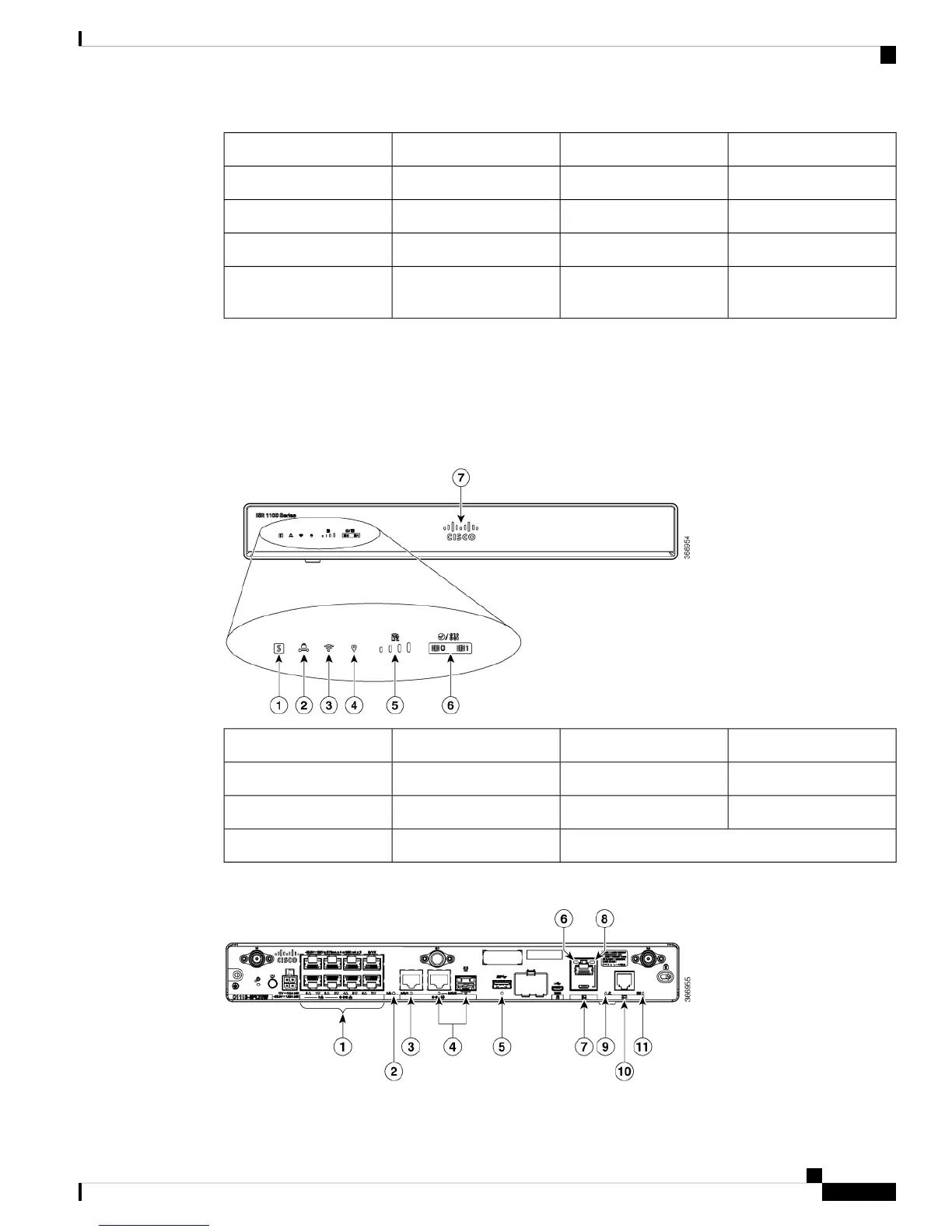

Figure 10: LED Indicators - Bezel Side
VPN2Status1
GPS4WLAN3
LTE DATA/SIM6LTE RSSI/Mode5
Cisco Logo7
Figure 11: LED Indicators - I/O Side
Hardware Installation Guide for the Cisco 1000 Series Integrated Services Router
7
Overview of Cisco 1000 Series Integrated Services Routers
LED Indicators
To Next Page
