Step 1 Read the Safety Warnings and disconnect the power supply before you perform any module replacement.
Step 2 Confirm the router is turned off and disconnected from the power supply.
Step 3 Installer to disconnect all cables connected to the system.
Step 4 Place the chassis on a flat surface.

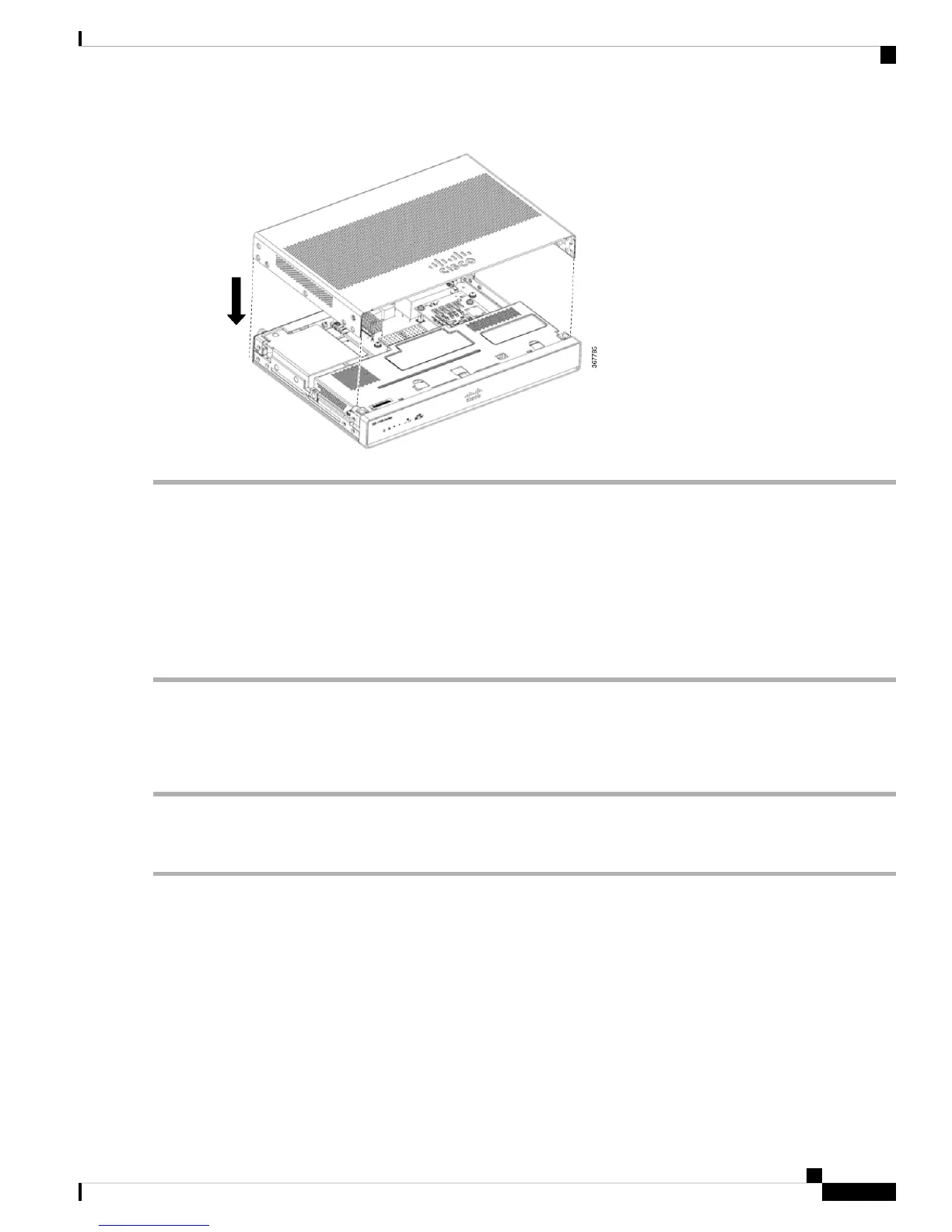

Step 5 Align hooks on the cover to slots on the chassis base and lower the cover onto chassis base.
Step 6 Slide the cover from the I/O side to the bezel side
Step 7 Install the fourteen screws on both sides of the chassis. Torque to 6-8 in-lbs.
LTE Pluggable Module
To install an LTE pluggable module on a Cisco 1100 Series ISR:
Step 1 Insert and then gently push the LTE pluggable into the pluggable slot until firmly fixed.
Step 2 Tighten the screw, the recommended torque is 10-12 in-lb.
Hardware Installation Guide for the Cisco 1000 Series Integrated Services Router
47
Install and Upgrade Internal Modules and FRUs
LTE Pluggable Module
