Chapter 3 Installing and Connecting the Router
Installing the Router in a Rack

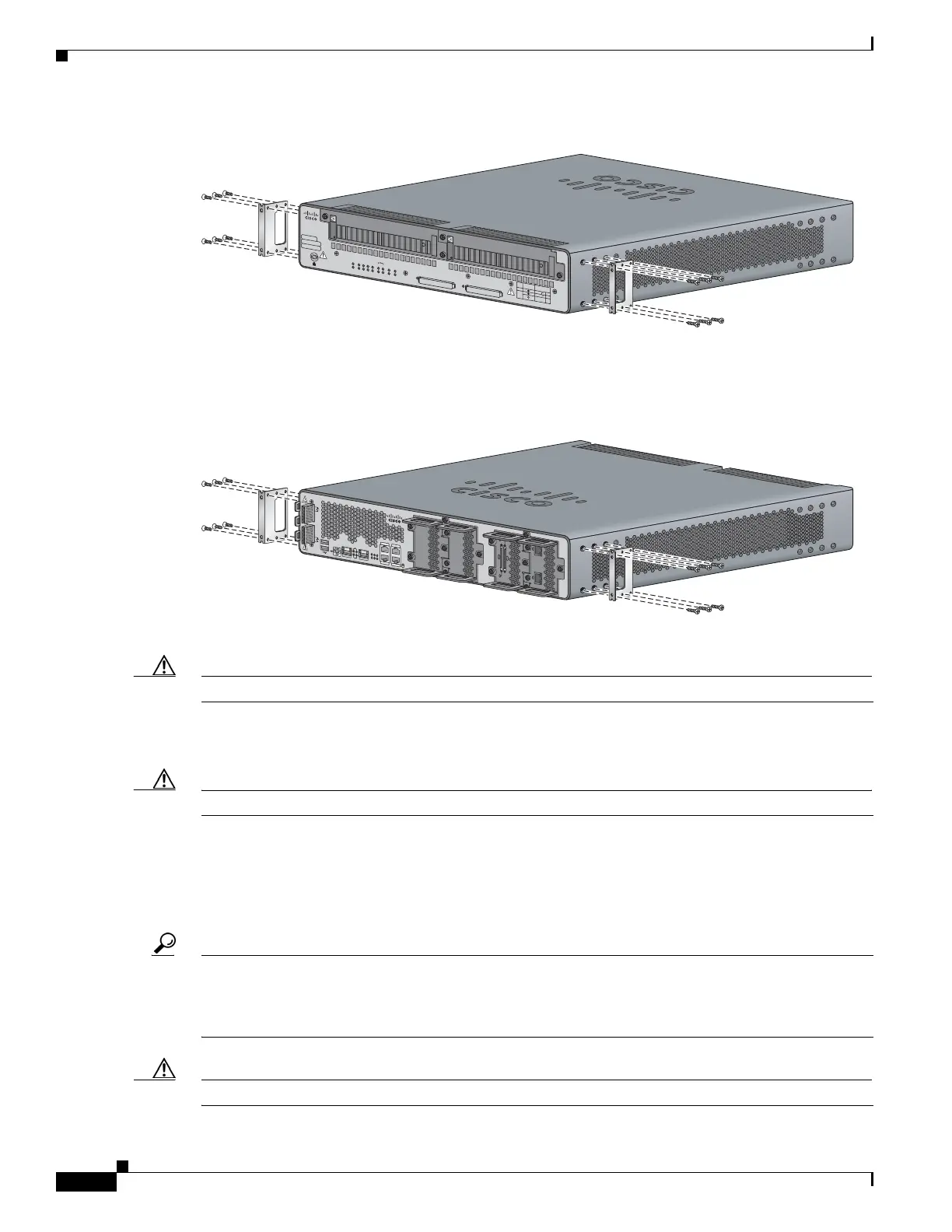

Figure 3-2 Bracket Installation for Power Supply Side Mounting
Figure 3-3 shows how to attach the brackets to the sides of the router with the cable side forward.
Figure 3-3 Bracket Installation for Cable Side Mounting
Caution Do not over torque the screws. The recommended torque is 15 to 18 inch-lb (1.7 to 2.0 N-m).
Attach the second bracket to the opposite side of the chassis. Use a number 2 Phillips screwdriver to
install the number-8 bracket screws.
Caution Your chassis installation must allow unrestricted airflow for chassis cooling.
Mounting the Router in a Rack
After you attach the rack-mount brackets to the router chassis, use the screws provided with the rack to
install the chassis in the rack. (See
Figure 3-4.)
Tip The screw slots in the brackets are spaced to line up with every second pair of screw holes in the rack.
When the correct screw holes are used, the small threaded holes in the brackets line up with unused screw
holes in the rack. If the small holes do not line up with the rack holes, you must raise or lower the
brackets to the next rack hole.
Caution A space of 1 RU above each Cisco 2010 CGR is required for sufficient air ventilation.
