Chapter 3 Installing and Connecting the Router
Connecting to the Auxiliary Port
Note Disconnect the router console terminal before uninstalling the driver.
Step 1 Run the setup.exe for Windows 32-bit or setup(x64).exe for Windows-64bit. Click Next.
Step 2 The InstallShield Wizard for Cisco Virtual Com appears. Click Next.
Step 3 When the Program Maintenance window appears, select the Remove radio button. Click Next.
Step 4 When the Remove the Program window appears, click Remove.
Note If a User Account Control warning appears, click “Allow - I trust this program...” to proceed.
Step 5 When the InstallShield Wizard Completed window appears, click Finish.
Connecting to the Auxiliary Port
When a modem is connected to the auxiliary port, a remote user can dial in to the router and configure it.
To connect a modem to the router, follow these steps:
Step 1 Connect the RJ-45 end of the adapter cable to the black AUX port on the router. (See Figure 3-8.)

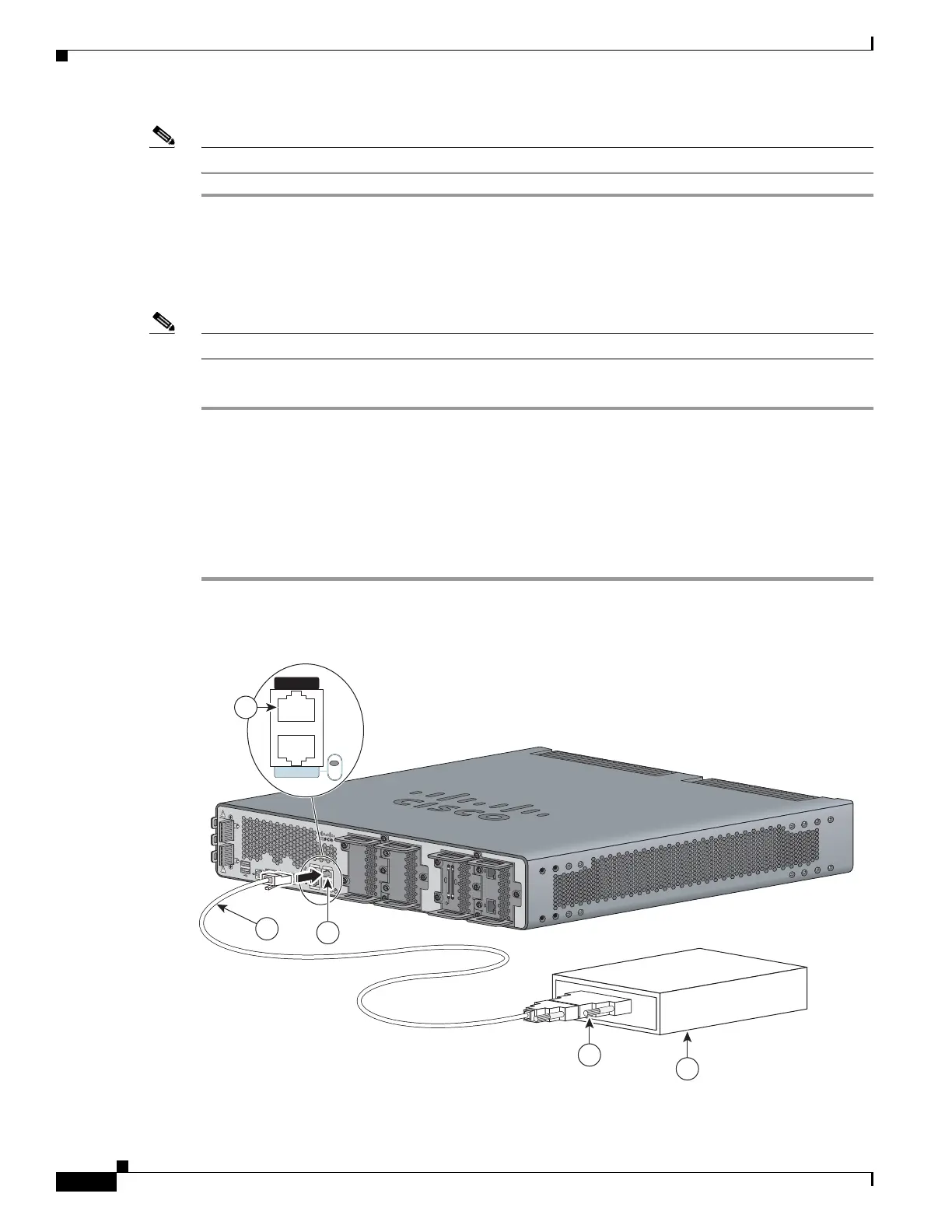

Figure 3-8 Connecting a Modem to the Cisco 2010 CGR
SFP 0/0
SFP 0/1
GE 0/0
GE 0/1
CONSOLE
AUX
EN
EN
Cisco CGR 2010
PSU2PSU1
L
N
N
L
+
Lo
-
-
Lo
+
277571
-
HI
+
+
HI
-
0
1
EN
SPD
CF
1
PS
2
ACT
SYS
0
1
S
L
S
L
SLOT 3
SLOT 2
SLOT 1
SLOT 0
CONSOLE
AUX
EN
1
2
1
3
4
CONN CONN
0-3
4-7
CD/LP AL CD/LP AL
P1 P0
