Warning When stranded wiring is required, use approved wiring terminations, such as
closed-loop or spade-type with upturned lugs. These terminations should be the appropriate size
for the wires and should clamp both the insulation and conductor. (To see translated versions of
this warning, refer to the Regulatory Compliance and Safety Information document that
accompanied the router.)
Caution Do not overtorque the terminal block captive thumbscrew or terminal block contact
screws. The recommended torque is 8.2 ± 0.4 inch-lb.
Warning After wiring the DC power supply, remove the tape from the circuit breaker switch
handle and reinstate power by moving the handle of the circuit breaker to the on position. (To see
translated versions of this warning, refer to the Regulatory Compliance and Safety Information
document that accompanied the router.)

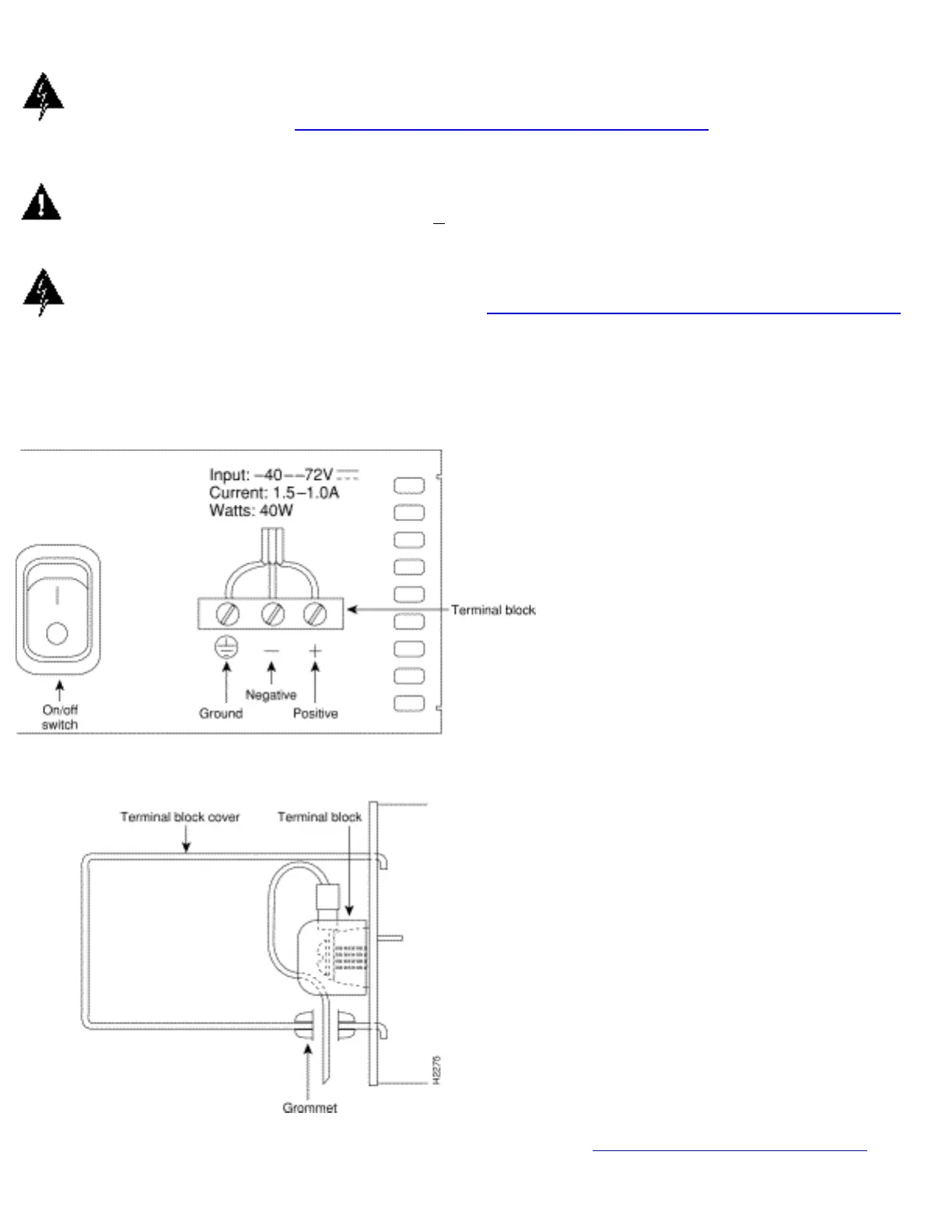

Figure 3-10: DC Power Supply Connections
For additional information on power supplies refer to the section "Troubleshooting the Power and
