Catalyst 3560-C and 2960-C Switch Hardware Installation Guide
OL-23803-02
Chapter 2 Switch Installation
Mounting the Switch
Step 2 Use the two number-10 Phillips pan-head screws to secure the DIN rail mount to the switch.
See Figure 2-18.

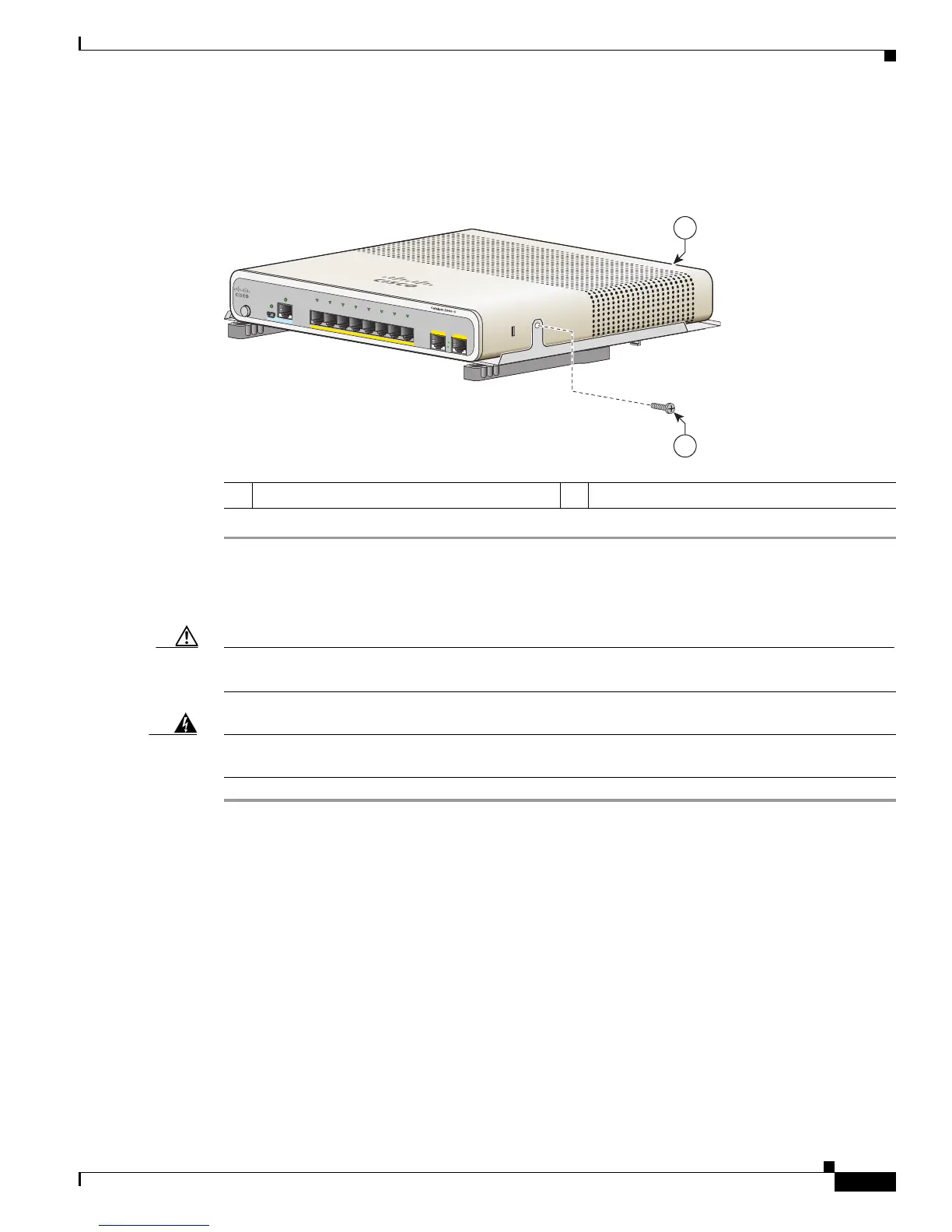

Figure 2-18 Securing the DIN-Mount Tray to the Switch
Mounting the Switch on a DIN Rail
Caution Do not install the switch with its front panel facing up. Following safety regulations, install the switch
with its front panel facing down, to allow sufficient airflow and to provide easier access to the cables.
Warning To prevent airflow restriction, allow clearance around the ventilation openings to be at least:
3 in. (7.6 cm) Statement 1076
Step 1 Position the switch directly in front of the DIN rail, making sure that the top of the DIN rail mount clip
hooks over the top of the DIN rail. See Figure 2-19.
1 Switch 2 Number-10 Phillips pan-head screws
MODE
CONSOLE
1
2
Series
PD
PO
W
E
R
O
VE
R
ETH
E
RN
E
T
12345678
PD
SPD
PoE
DPLX
STAT
SYST
344213
2
1
