Catalyst 3560-C and 2960-C Switch Hardware Installation Guide
OL-23803-02
Chapter 2 Switch Installation
Installing the Power Cord Retainer (Optional)
Installing the Power Cord Retainer (Optional)
Note This section applies to switches with an AC power connector.
The power cord retainer part number (PWR-CLP=) is optional. You can order it when you order your
switch, or you can order it later from your Cisco representative.
Step 1 Choose the sleeve size of the power cord retainer based on the thickness of the cord. The smaller sleeve
can be snapped off and used for thin cords. See Figure 2-26.
Step 2 Slide the retainer around the AC power cord, and pass it around the loop on the switch. See Figure 2-23.

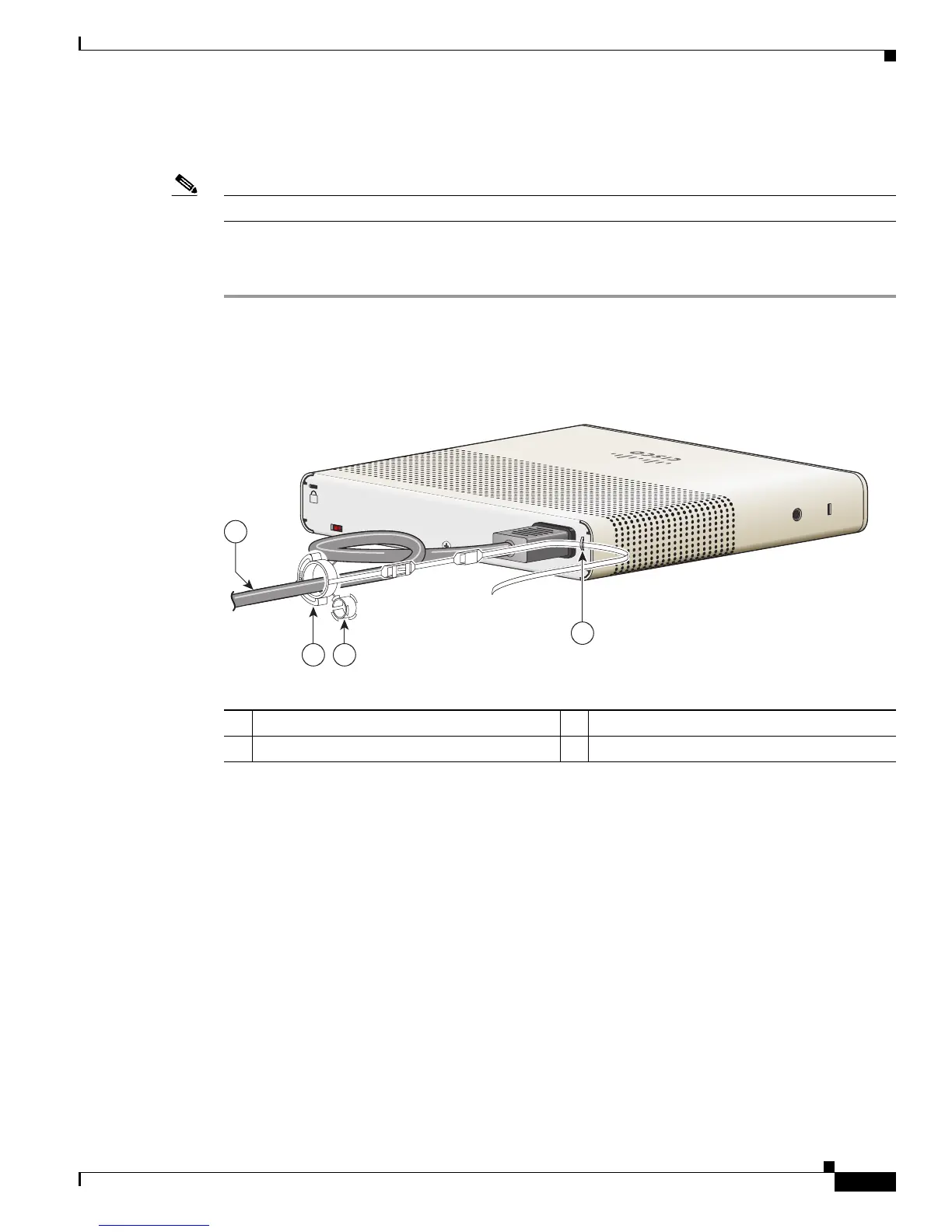

Figure 2-23 Inserting the Retainer through the Lanced Loop
1 AC power cord 3 Sleeve for thinner power cords
2 Power cord retainer 4 Loop
