Cisco 3600 Series Routers Hardware Installation Guide
OL-2056-05
Chapter 3 Installing the Router
Installing the Chassis
The router is shipped with one set of brackets and the screws to attach the brackets to the router chassis.
Figure 3-1 through Figure 3-5 show both sizes of brackets for the various routers.

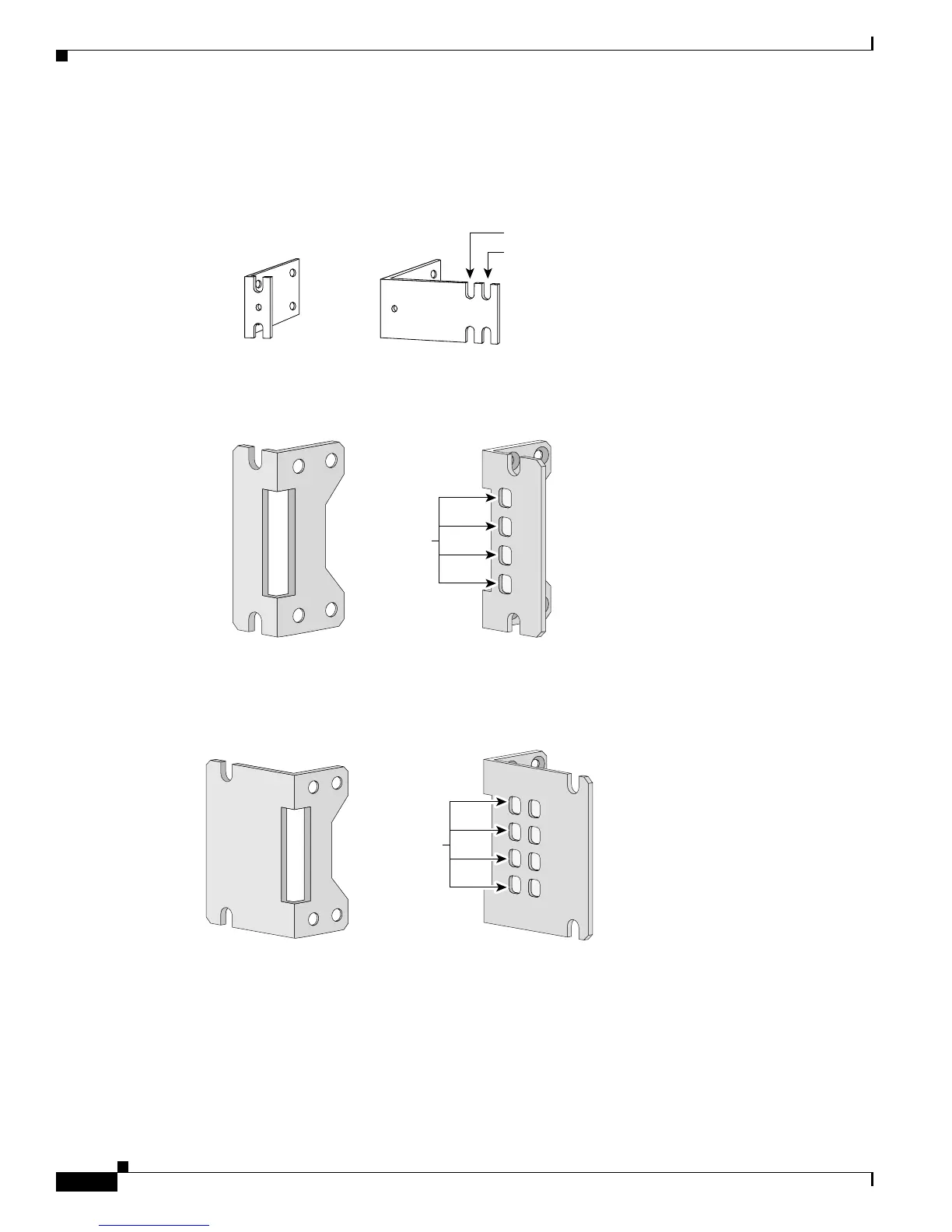

Figure 3-1 Cisco 3620 Rack-Mount Brackets
Figure 3-2 Cisco 3631 Rack-Mount Brackets for 19-Inch Rack
Figure 3-3 Cisco 3631 Rack-Mount Brackets for 23-Inch Rack
H7270
Bracket for 23- or 24-inch rack
Use with 23-inch rack
Bracket for 19-inch rack
Use with 24-inch rack
72283
LEFT
RIGHT
Slots for
cable tie
attachment
Narrow bracket for
chassis side opposite fans
Wide bracket for
chassis side with fans
82532
23" ETSI, NEBS
LEFT
For chassis side
opposite fans
For chassis side
with fans
23" ETSI, NEBS
RIGHT
Slots for
cable tie
attachment
