Cisco 3600 Series Routers Hardware Installation Guide
OL-2056-05
Chapter 3 Installing the Router
Installing the Chassis

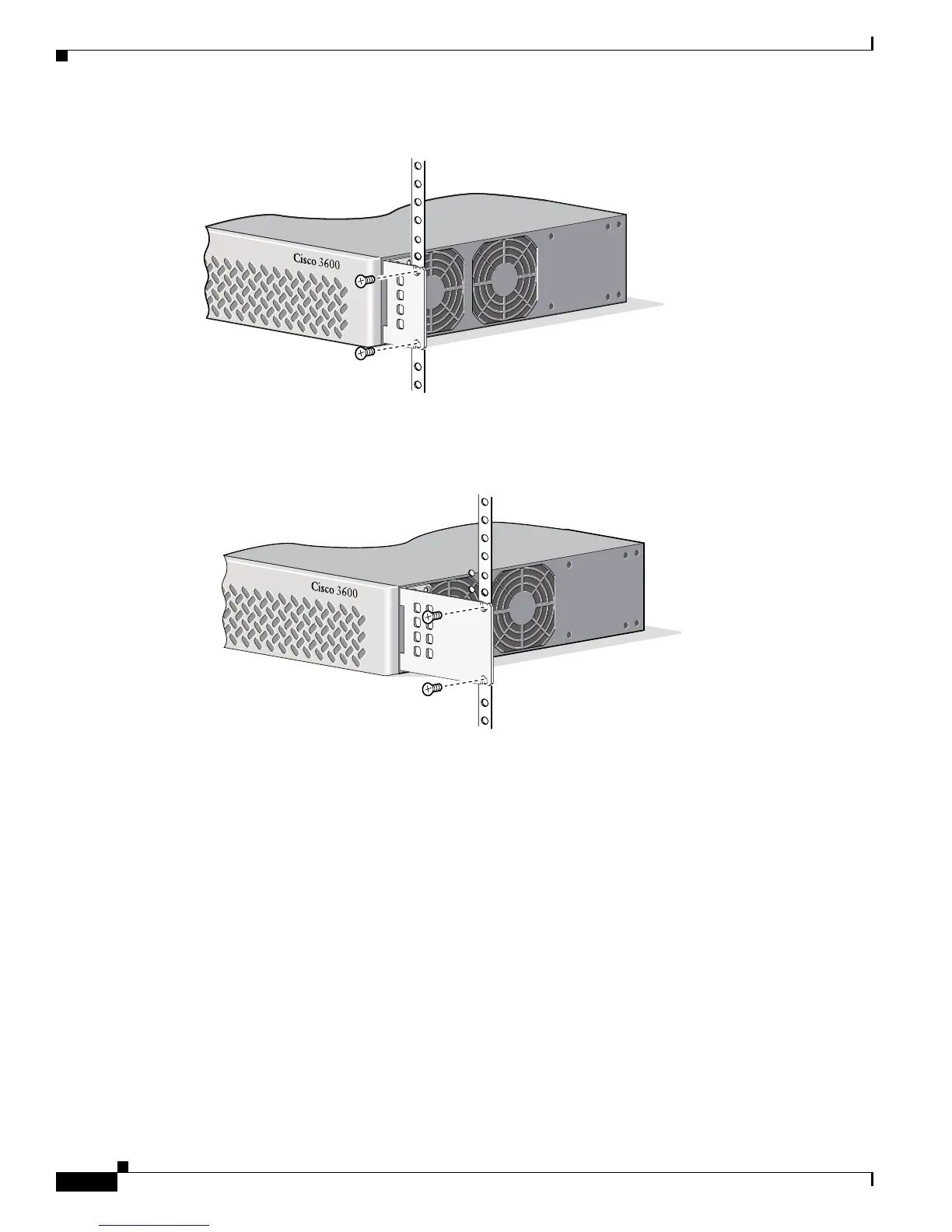

Figure 3-26 Mounting the Cisco 3631 Router (19-Inch Rack)
Figure 3-27 Mounting the Cisco 3631 Router (23- Inch Rack)
S
E
R
IE
S
62548
Note: The brackets can also be installed with the rear panel forward.
RIGHT
62547
S
E
R
IE
S
Note: The brackets can also be installed with the rear panel forward.
RIGHT
