Chapter 3 Installing the Router
Installing the Chassis

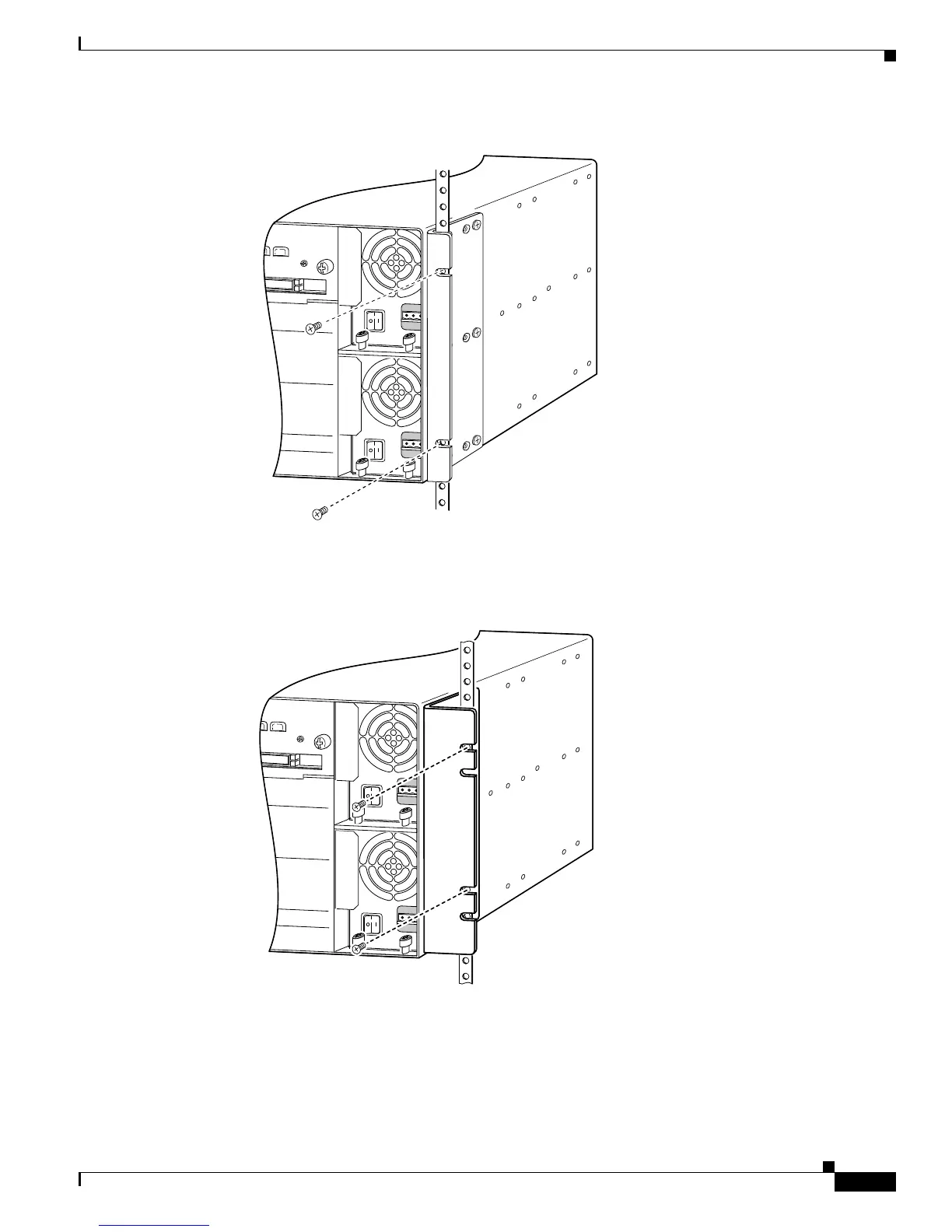

Figure 3-28 Mounting the Cisco 3660 Router (19-Inch Rack)
Figure 3-29 Mounting the Cisco 3660 Router (23-Inch Rack)
After the router has been installed, you must connect the chassis to a reliable earth ground. For the
chassis ground connection procedures, see the “Installing Chassis Ground Connection” section on
page 3-19.
17333
Note: The second bracket attaches to the rack at the other side of the
chassis. The brackets can also be installed with the front panel forward.
17334
Note: The second bracket attaches to the rack at the other side of the
chassis. The brackets can also be installed with the front panel forward.
