Cisco 3600 Series Routers Hardware Installation Guide
OL-2056-05
Chapter 3 Installing the Router
Installing Chassis Ground Connection

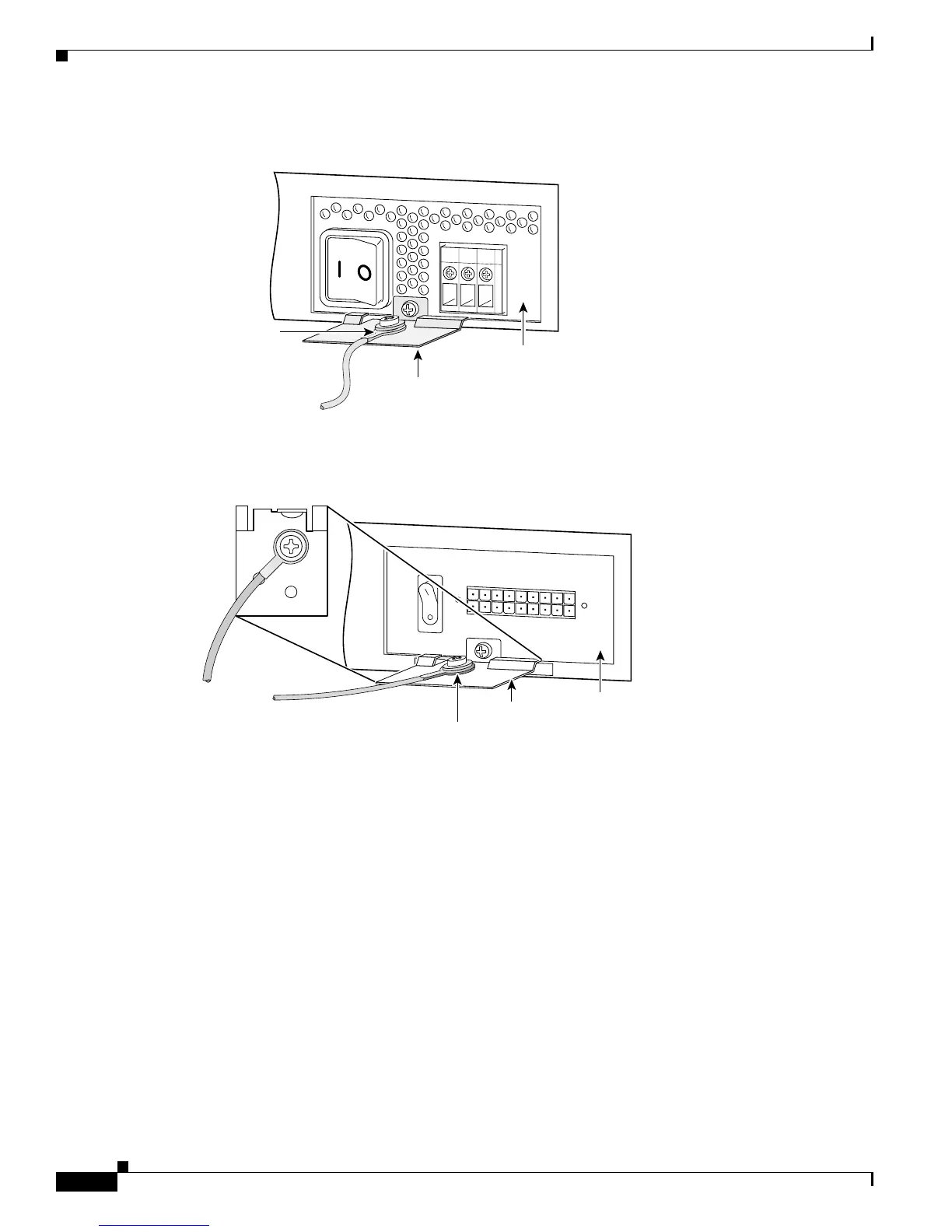

Figure 3-36 Ground Lug Attachment Using Ring Terminal on a Cisco 3620 Router with Internal AC or
DC Power Supply
Figure 3-37 Ground Lug Attachment Using Ring Terminal on a Cisco 3620 Router with Redundant
Power Supply (Cisco RPS)
Bracket
Ring terminal
attached
to a bracket
103009
Power
supply
D
C
IN
P
U
T
F
O
R
U
S
E
W
IT
H
C
IS
C
O
R
P
S
+
5V
–––
14A
, +
12V
–
––
5A
, -12V
–––
3A
Power
supply
103010
Ring terminal
attached
to a bracket
Bracket

Cisco 3600 Series Specifications

General

Operating System	Cisco IOS
Series	3600
Type	Modular Router
Interfaces	Ethernet, Fast Ethernet, Serial, ISDN
Routing Protocols	RIP, OSPF, EIGRP, BGP, IS-IS
Redundancy	Optional redundant power supply
Management	CLI, SNMP, Telnet
Weight	Varies depending on the specific model
Power Supply	AC or DC, optional redundant power supply
