Cisco 3700 Series Routers Hardware Installation Guide
OL-2180-08
Chapter 3 Installing the Router
Connecting to a Console Terminal or Modem
Connecting to the Auxiliary Port
To connect a modem to the auxiliary port on the router, perform the following steps:
Step 1 Use the black RJ-45-to-DB-25 modem adapter cable to connect the router to a modem. (See Figure 3-26
and Figure 3-27.)
For information about cable pinouts, see the publication Cisco Modular Access Router Cable
Specifications on Cisco.com.
Step 2 Make sure that your modem and the router auxiliary port are configured for the same transmission speed
(up to 115200 bps is supported) and hardware flow control with data carrier detect (DCD) and data
terminal ready (DTR) operations.

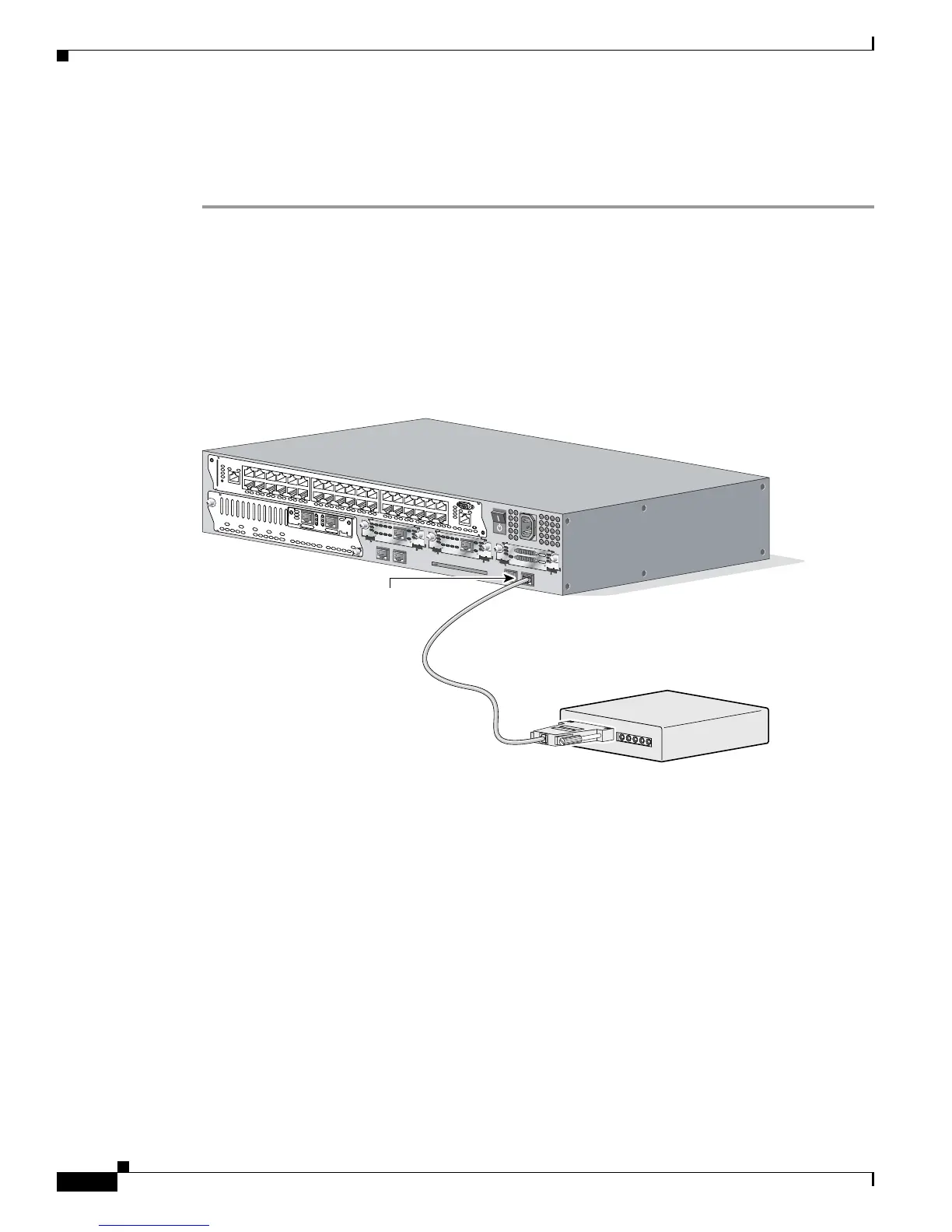

Figure 3-26 Connecting a Modem to the Auxiliary Port on a Cisco 3725 Router
72070
SEE MANUAL BEFORE INSTALLATION
AL
CD
LP
RD
TD
SEE MANUAL BEFORE INSTALLATION
DSU
56K
AL
CD
LP
RD
TD
SEE MANUAL BEFORE INSTALLATION
DSU
56K
EN
V0
BANK 4
BANK 3
BANK 2
BANK 1
BANK 0
NM-HDV
V
W
I
C
2
M
F
T
-
E
1
S
E
E
M
A
N
U
A
L
B
E
F
O
R
E
I
N
S
T
A
L
L
A
T
I
O
N
C
T
R
L
R
E
2
C
T
R
L
R
E
1
A
L
L
P
C
D
Modem
AUX port
connector
(RJ-45)

Cisco 3700 series Specifications

General

Connectivity Technology	Wired
Operating System	Cisco IOS
Operating Temperature	32 to 104°F (0 to 40°C)
Storage Temperature	-4 to 149°F (-20 to 65°C)
Routing Protocols	BGP, OSPF, EIGRP, RIP, IS-IS
Network Management	SNMP, CiscoWorks
Security Features	ACLs, VPN, Firewall, RADIUS, TACACS+
Product Type	Network Router
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet, Serial, Frame Relay, ATM
Network/Transport Protocol	TCP/IP, UDP
Remote Management Protocol	SNMP, Telnet, SSH
Features	Quality of Service (QoS)
WAN Interfaces	Serial, ISDN, Frame Relay, ATM
LAN Interfaces	Ethernet, Fast Ethernet, Gigabit Ethernet
Processor	Motorola PowerPC
Interfaces	Variety of modular interface cards including Ethernet, Fast Ethernet, Gigabit Ethernet, Serial, ISDN, ATM, and Voice/WAN Interface Cards (VICs/VWICs)
