Cisco 3700 series User Manual

1-6
Cisco 3700 Series Routers Hardware Installation Guide
OL-2180-08
Chapter 1 Overview of Cisco 3700 Series Routers
Interface Numbering

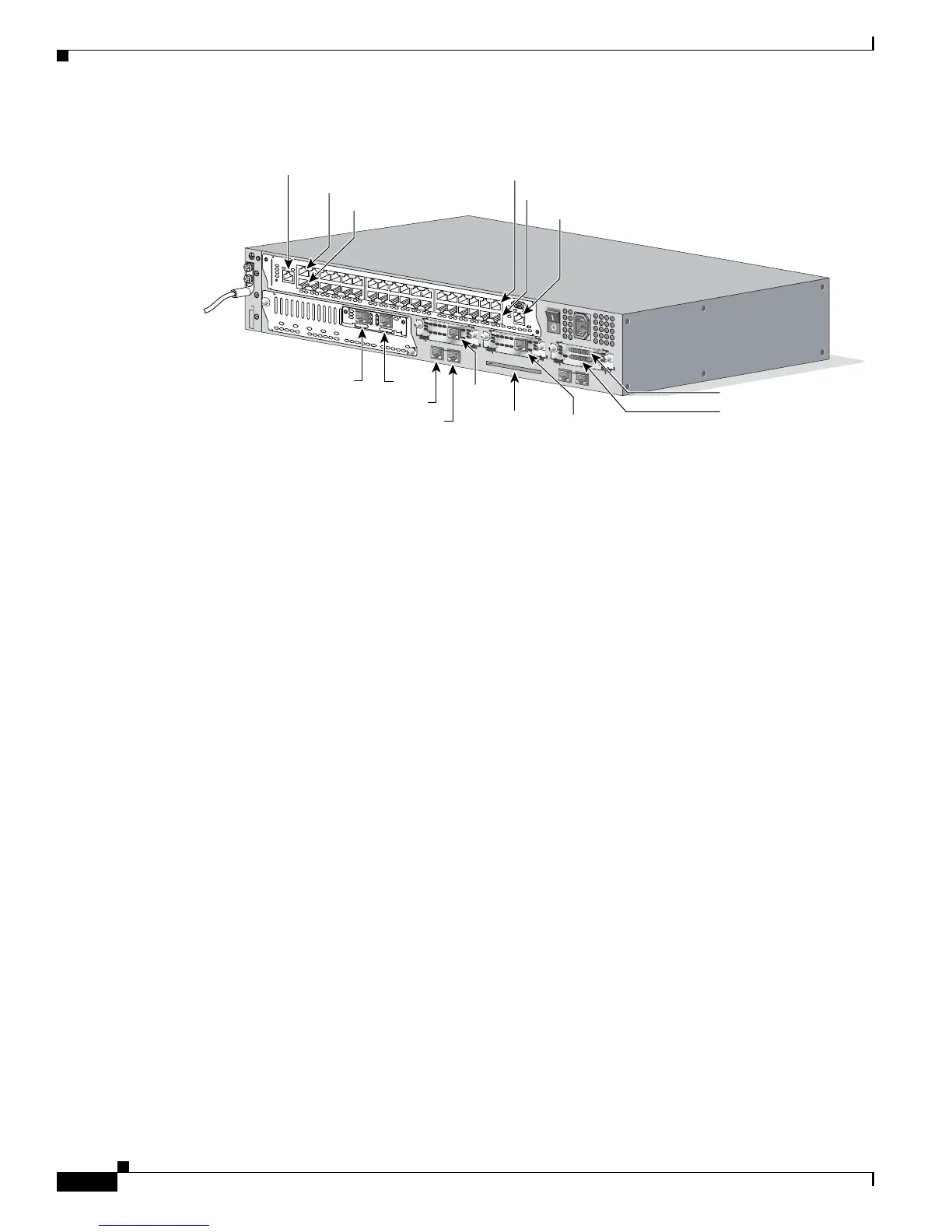

Figure 1-3 WAN and LAN Interface Numbering
The slot number for all WIC interfaces is always 0. (The W0 and W1 slot designations are for physical
slot identification only.) Interfaces in the WICs are numbered from right to left, starting with 0/0 for each
interface type, regardless of which physical slot the WICs are installed in. Some examples are as follows:
• If slot W0 is empty and slot W1 contains a 1-port serial WIC, the serial interface in the WIC is
numbered Serial 0/0.
• If slot W0 contains a 2-port serial WIC and slot W1 contains a 1-port serial WIC, the serial interfaces
in physical slot W0 are numbered Serial 0/0 and Serial 0/1, and the serial interface in physical slot
W1 is numbered Serial 0/2.
• If slot W0 contains a 2-port serial WIC and slot W1 contains a 1-port BRI WIC, the serial interfaces
in physical slot W0 are numbered Serial 0/0 and Serial 0/1, and the BRI interface in physical slot
W1 is numbered BRI 0/0.
Voice Interface Numbering
Voice interfaces are numbered as follows:
chassis-slot/voice-module-slot/voice-interface
If a 4-channel voice network module is installed in chassis slot 1, the voice interfaces are:
• 1/0/0—Chassis slot 1/Voice module slot 0/Voice interface 0
• 1/0/1—Chassis slot 1/Voice module slot 0/Voice interface 1
• 1/1/0—Chassis slot 1/Voice module slot 1/Voice interface 0
• 1/1/1—Chassis slot 1/Voice module slot 1/Voice interface 1
Serial 0/2
Compact
Flash slot
56482
SEE MANUAL BEFORE INSTALLATION
AL
CD
LP
RD
TD
SEE MANUAL BEFO
RE INSTALLATION
DSU
56K
AL
CD
LP
RD
TD
SEE MANUAL BEFO
RE INSTALLATION
DSU
56K
EN
V0
BANK 4
BANK 3
BANK 2
BANK 1
BANK 0
NM-HDV
V
W
I
C
2
M
F
T
-
E
1
S
E
E
M
A
N
U
A
L
B
E
F
O
R
E
I
N
S
T
A
L
L
A
T
I
O
N
C
T
R
L
R
E
2
C
T
R
L
R
E
1
A
L
L
P
C
D
Gigabit Ethernet 2/1
Fast Ethernet 2/35
Fast Ethernet 2/17
Gigabit Ethernet 2/0
Fast Ethernet 2/0
Fast Ethernet 2/18
Serial 0/1
Serial 0/0
TI 1/1
TI 1/0
Fast Ethernet 0/1
Fast Ethernet 0/0
BRI 0/0
1
2

Cisco 3700 series Specifications

General

Connectivity Technology	Wired
Operating System	Cisco IOS
Operating Temperature	32 to 104°F (0 to 40°C)
Storage Temperature	-4 to 149°F (-20 to 65°C)
Routing Protocols	BGP, OSPF, EIGRP, RIP, IS-IS
Network Management	SNMP, CiscoWorks
Security Features	ACLs, VPN, Firewall, RADIUS, TACACS+
Product Type	Network Router
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet, Serial, Frame Relay, ATM
Network/Transport Protocol	TCP/IP, UDP
Remote Management Protocol	SNMP, Telnet, SSH
Features	Quality of Service (QoS)
WAN Interfaces	Serial, ISDN, Frame Relay, ATM
LAN Interfaces	Ethernet, Fast Ethernet, Gigabit Ethernet
Processor	Motorola PowerPC
Interfaces	Variety of modular interface cards including Ethernet, Fast Ethernet, Gigabit Ethernet, Serial, ISDN, ATM, and Voice/WAN Interface Cards (VICs/VWICs)
