Installing and Removing Slot Dividers
57
Installing Network Modules in Cisco 3800 Series Routers
OL-5973-01

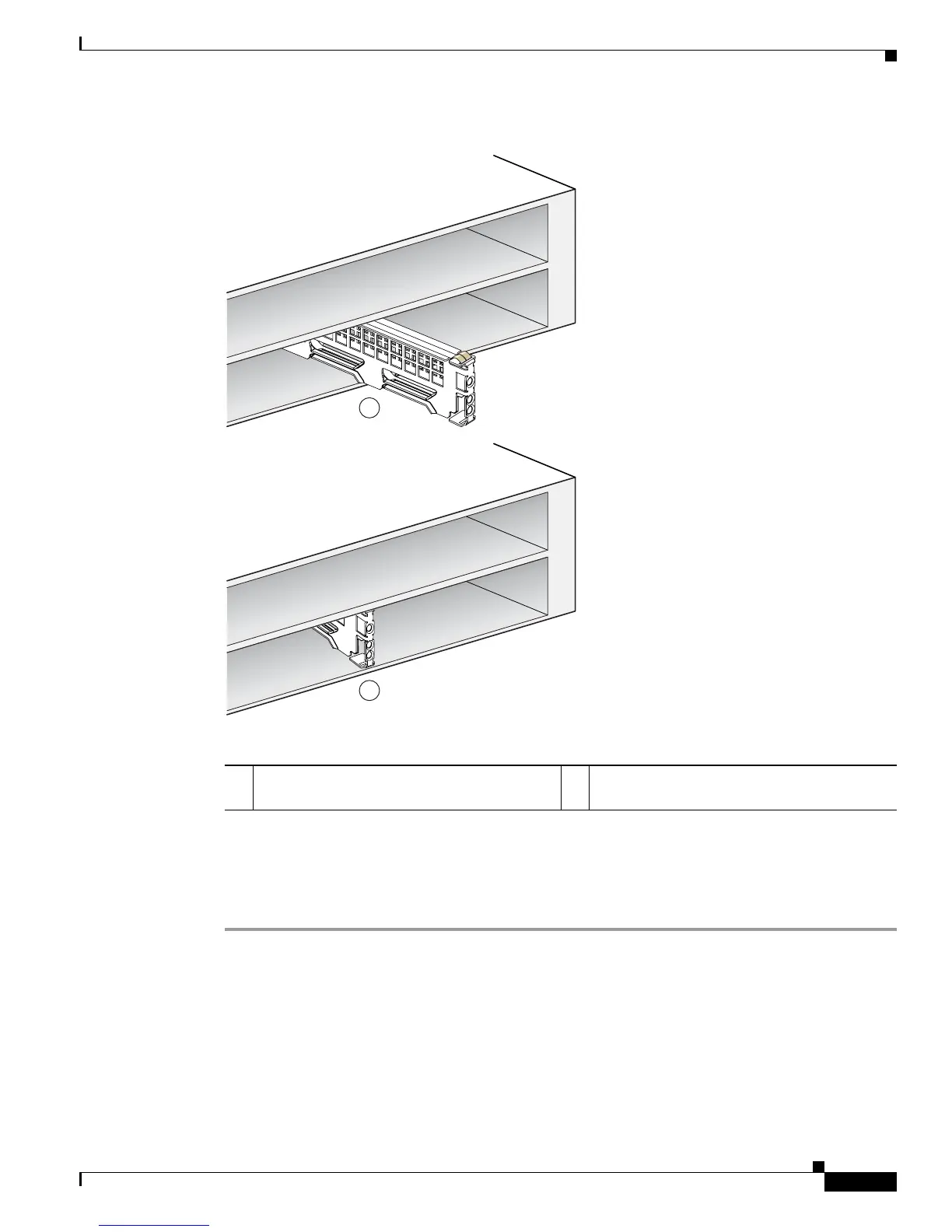

Figure 34 Inserting Slot Divider into Network Module Slot (Generic Router)
Step 2
Push the slot divider into the slot. The slot divider’s screw tip and guide pin fit into holes at the back of
the slot. Use the number 1 Phillips screwdriver to tighten the attachment screw. When it is fully seated,
the slot divider’s front surface is flush with the router’s rear panel. See Figure 34.
Step 3 Pull gently on the slot divider to check that it is seated securely.
1 Insert slot divider 2 Tighten screw so front surface is flush with
router rear panel
121385
1
2
