Installing and Removing Slot Adapters
59
Installing Network Modules in Cisco 3800 Series Routers
OL-5973-01
Installing and Removing Slot Adapters
Install slot adapters in extended-width network module slots to reduce the slot width. Figure 31,
Figure 32, and Figure 35 show slot adapters for network module slots.

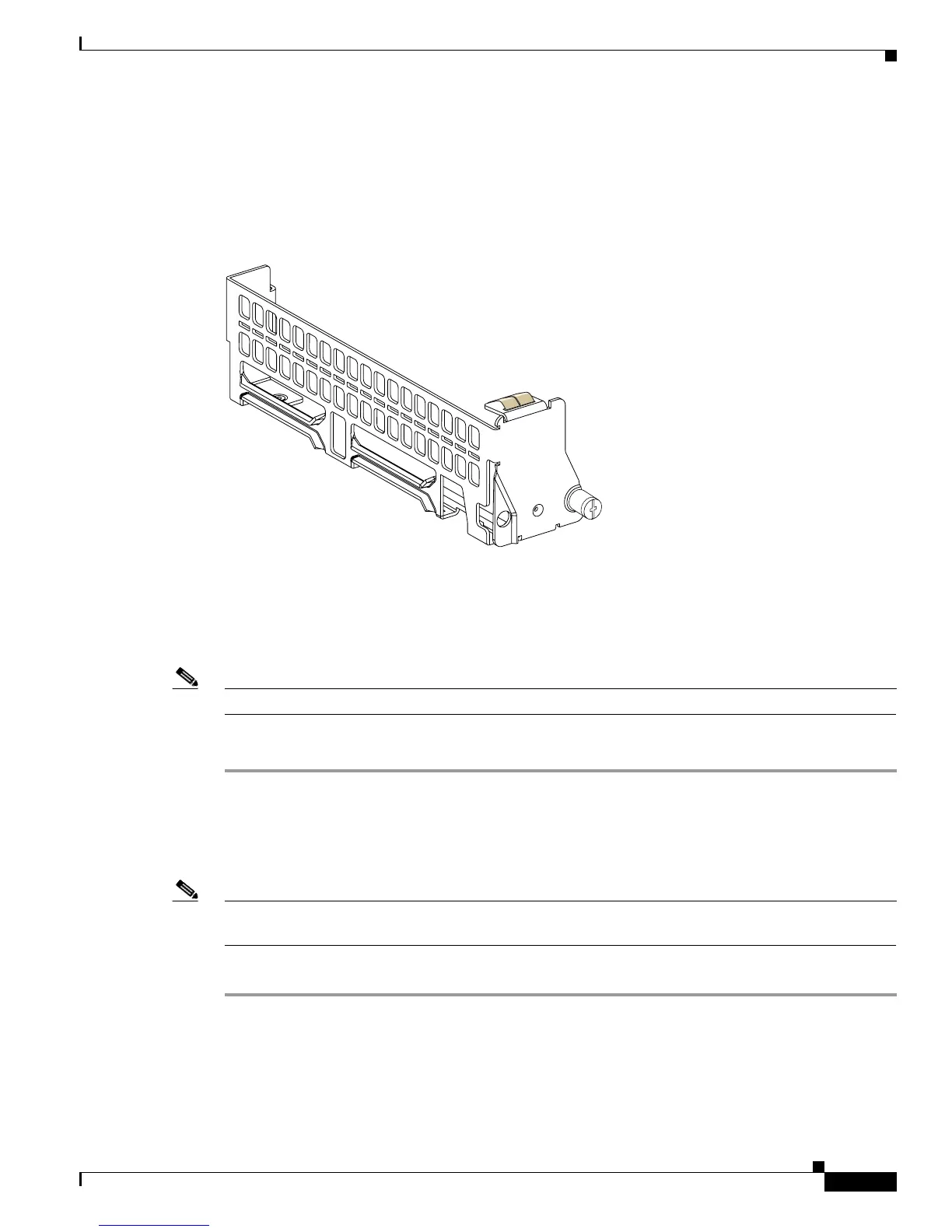

Figure 35 Slot Adapter for Network Module Slot
Installing Slot Adapters
Note A network module slot must be empty before you install a slot adapter.
To install a slot adapter, follow these steps. You need a number 2 Phillips screwdriver.
Step 1 Orient the slot adapter for insertion, with the captive thumbscrew at the right side.
Step 2 Insert the slot adapter into the far right edge of the network module slot.
Step 3 Guide the triangular end of the slot adapter into the rectangular hole at the back of the slot, and align the
captive thumbscrew with the threaded hole in the chassis, slot divider, or adjacent slot adapter.
Note You may be fastening the slot adapter to the router chassis, to another slot adapter, or to a slot divider,
depending on its installation location.
Step 4 Use the number 2 Phillips screwdriver to tighten the thumbscrew.
121063

Cisco 3800 Series Specifications

General

Connectivity Technology	Wired
Models	Cisco 3825, Cisco 3845
Operating System	Cisco IOS
Routing Protocols	BGP, OSPF, EIGRP, RIP, IS-IS
Interfaces	Fast Ethernet, Gigabit Ethernet, Serial, ISDN BRI, Voice
WAN Interfaces	T1/E1, ISDN BRI, Serial
Security Features	Firewall, VPN, IPS, SSH
Voice Support	Yes
Network Management	SNMP, CLI
Product Type	Router
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Network/Transport Protocol	TCP/IP
Features	Quality of Service (QoS)
RAM	256 MB
Flash Memory	64 MB
Product Series	Cisco 3800 Series
