Chapter 4 Installing the ASA 5500, ASA 5510, ASA 5520, and ASA 5540
Installing the Chassis
4-6
Cisco ASA 5500 Series Getting Started Guide
78-19186-01

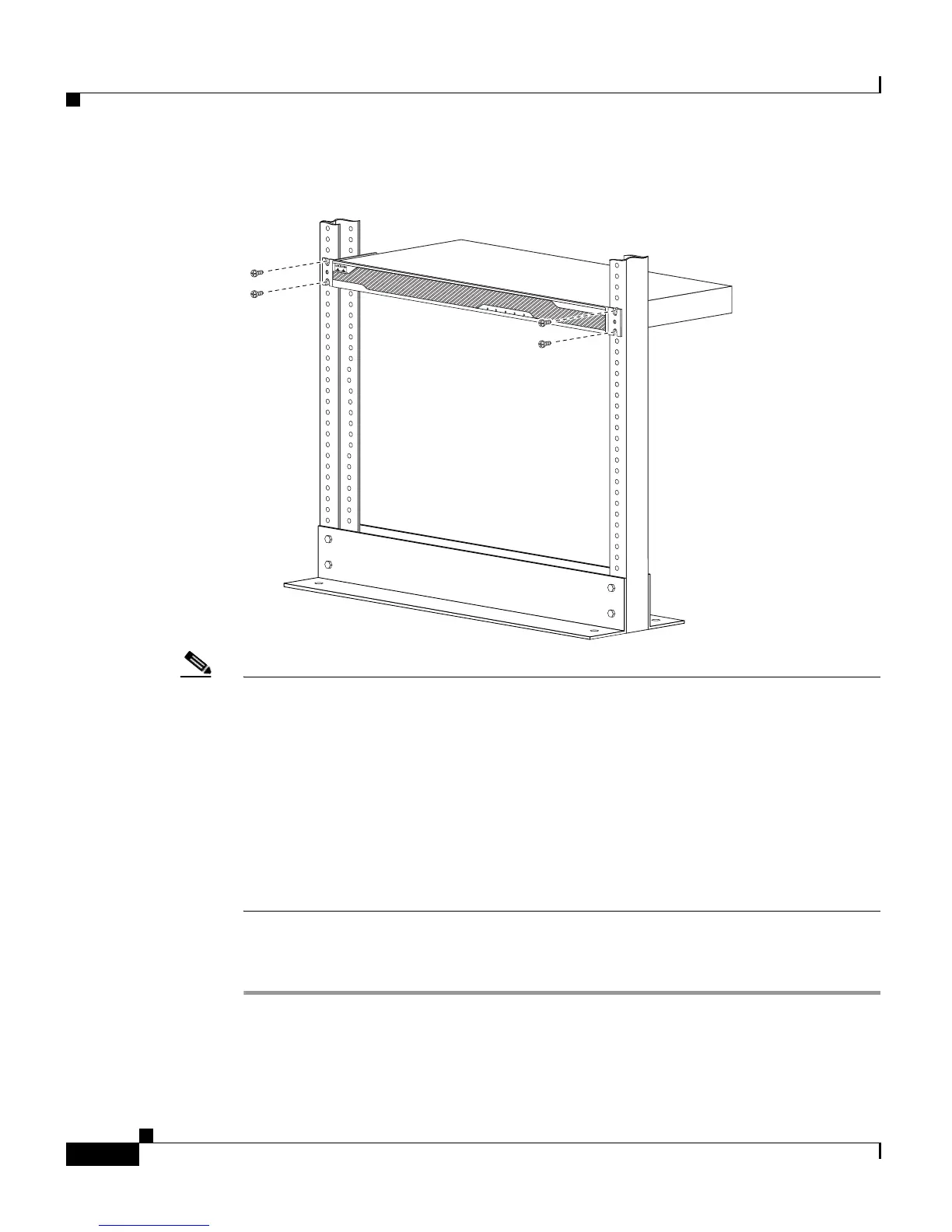

Figure 4-4 Rack-Mounting the Chassis
Note Figure 4-2 and Figure 4-3 show the rack mounting brackets attached to the rear of
the chassis while Figure 4-4 shows the rack mounting brackets attached to the
front of the chassis. You can attach the mounting brackets to the front or the rear
of the chassis so that you can have the front panel or the rear panel of the chassis
facing outward.
Figure 4-2 and Figure 4-3 show the brackets attached to the rear so you can see
how that configuration appears while Figure 4-4 shows the brackets attached to
the front so that you can see how that configuration appears. In Step 1 and Step 2,
you will choose to have either the brackets rear mounted or front mounted but not
both.
To remove the chassis from the rack, remove the screws that attach the chassis to
the rack, and then remove the chassis.
119633
POWER
STATUS
FLASH
ACTIVE
VPN
C
IS
C
O
A
S
A
5
5
4
0
SE
R
IE
S
A
da
ptiv
e S
ecurity
A
pp
lian
c
e
