• With the ceiling mount bracket: Hold the bracket so that two of the holes intersect the line. Mark the
holes.
Step 3 Install the wall plugs as described by the manufacturer.
Step 4 Insert the screws.
• Without the ceiling mount bracket: Screw in the screws until there is about 0.375 inches (9.52 mm)
between the screw head and the wall.
• With the ceiling mount bracket: Hold the bracket over the holes and screw in the screws until the bracket
doesn't move.
Step 5 Base station only: Connect the Ethernet cable to the base station and route the cable through the slot in the
base station.
Step 6 Provide power to the device:
• Base station with PoE on the LAN: Additional power is not required.
• Base station without PoE: Plug the power adapter into the base station and route the cable through the
slot in the base station.
• Repeater: Plug the power adapter into the repeater and route the cable through the slot in the repeater.
Step 7 Put the device on the wall.

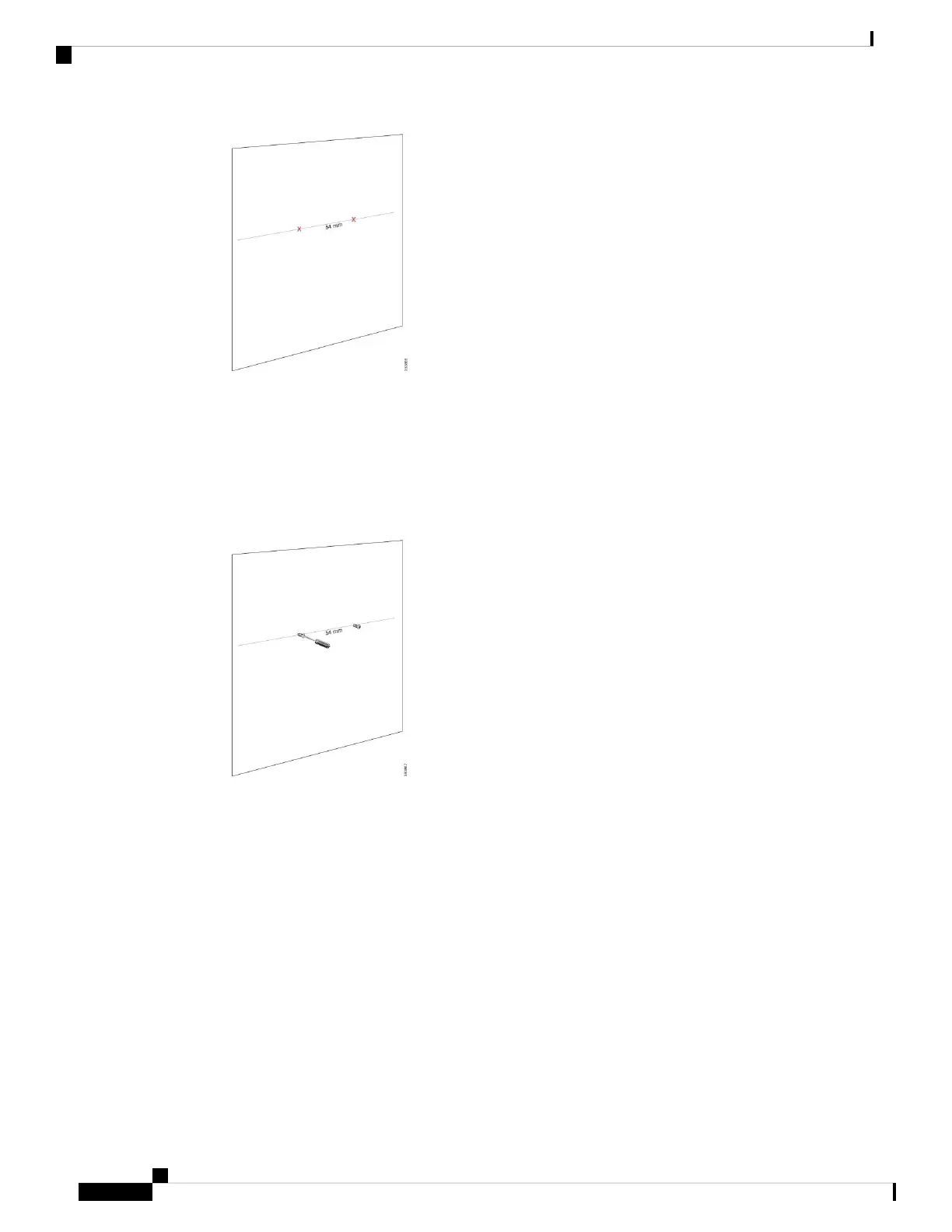

• Without the ceiling mount bracket: This diagram shows the alignment of the screw heads and the device.
Hardware Installation
14
Hardware Installation
Mount the Base Station or Repeater on the Wall
To Next Page
