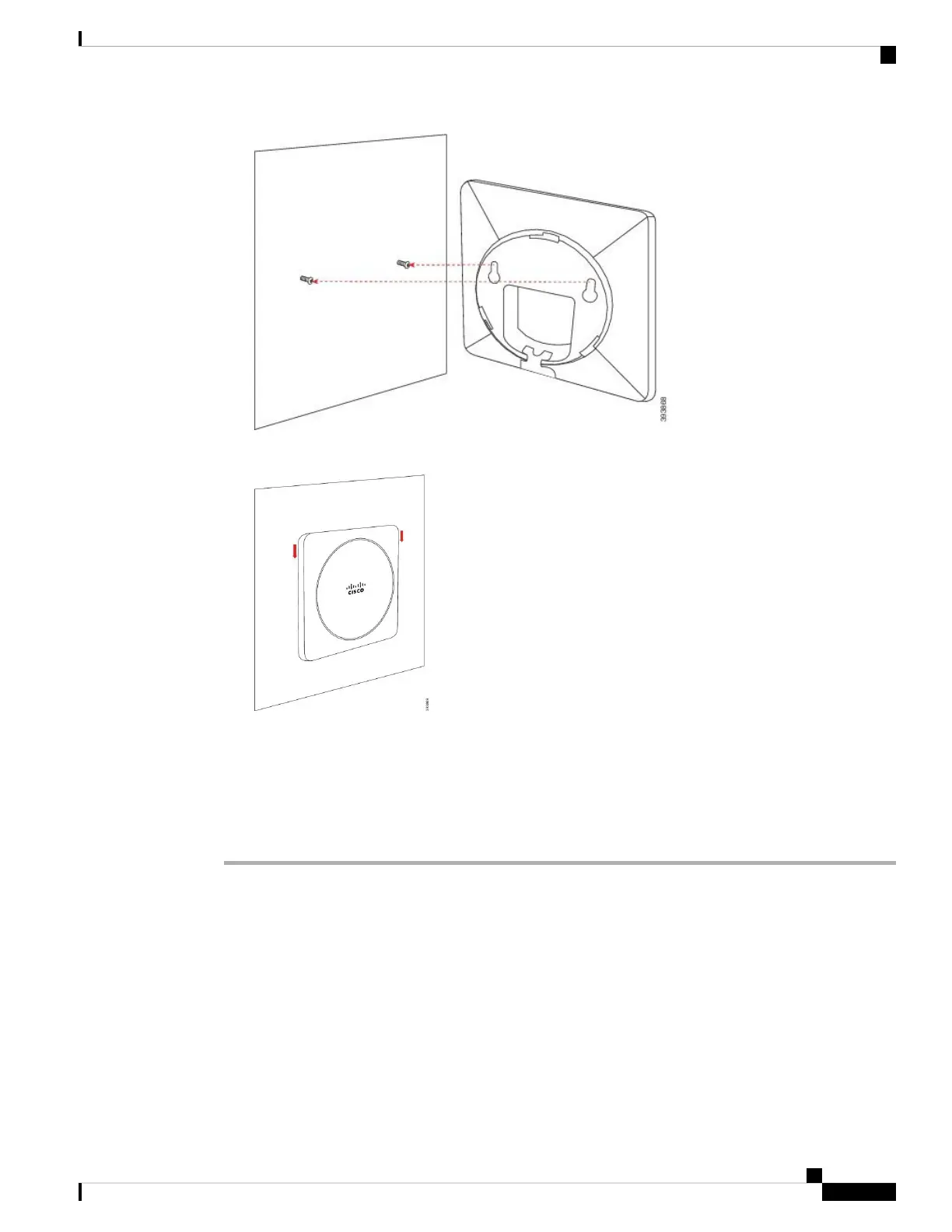

This diagram shows how you seat the device on the screw heads.
• With the ceiling mount bracket: Hold the device with the lettering in the Cisco logo on the bottom and
turn slightly right. Align the slots on the underside of the device with the hooks on the bracket, press the
device into the bracket, and turn it left until the device is attached.
Step 8 Base station only: Plug the Ethernet cable into the LAN port.
Step 9 If required, plug the power adapter into the electrical outlet.
What to do next
Do one of these:
• Base station installation:
• Manual configuration: Sign into the Administration Web Page and Configure the Base Station
• Automatic configuration: Sign into the Administration Web Page and Start Handset Registration
• Repeater installation: Add a Repeater
Hardware Installation
15
Hardware Installation
Mount the Base Station or Repeater on the Wall
