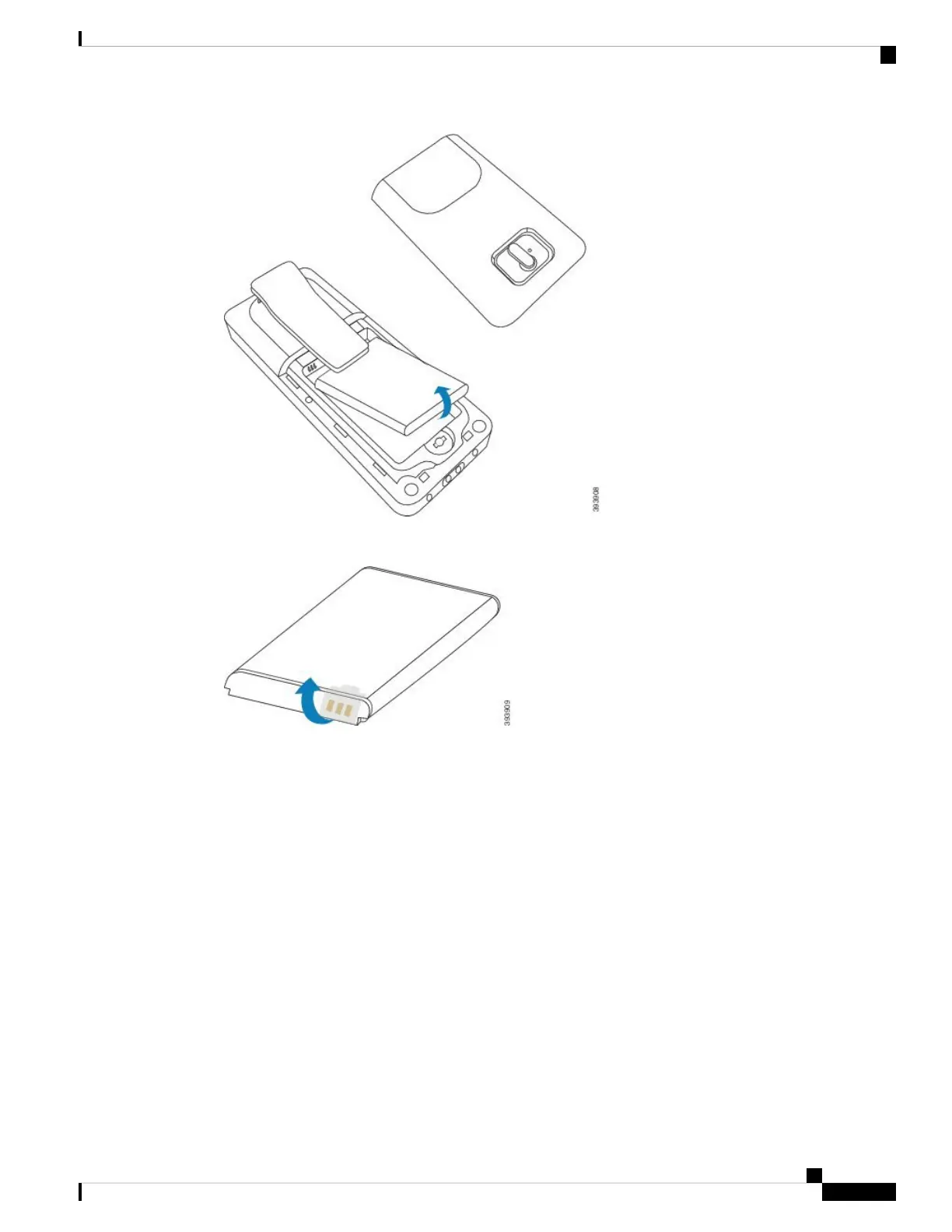

Step 3 Remove the plastic over the contacts.
Step 4 Place the battery under the clip and drop it into the compartment.
Hardware Installation
17
Hardware Installation
Install the Battery in the Handset
