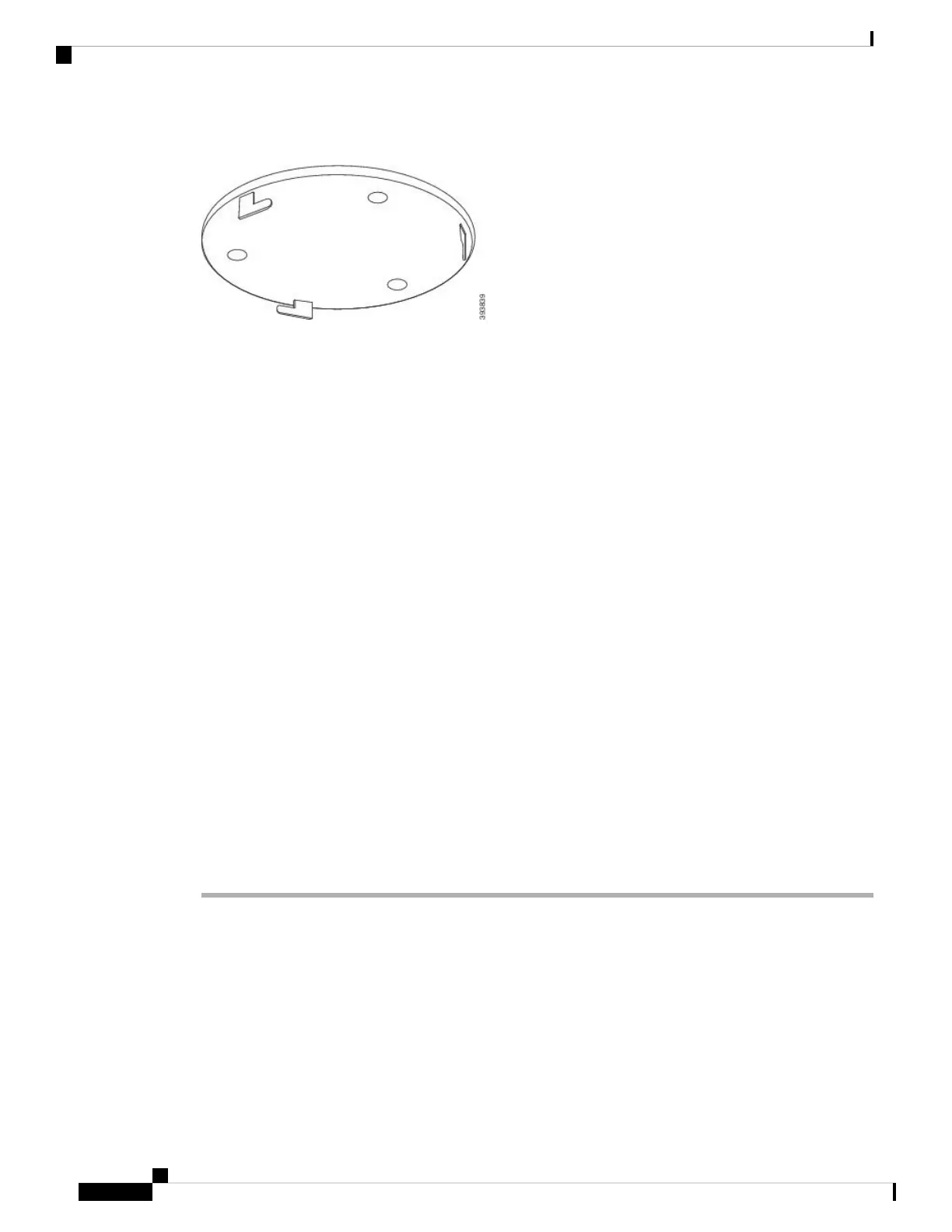

Figure 4: Ceiling Mount Bracket
The base station and repeater have a range of up to 984 feet (300 meters) outdoors and a range of 164 feet
(50 meters) indoors.
In this task, the term device means the base station or repeater.
Before you begin
You need:
• Ceiling mount bracket
• Pencil
• Mounting hardware (screws and plugs) suitable for the ceiling construction.
• Base station: LAN connection close to the mounting location.
• Base station: If you do not use PoE, a power outlet close to the mounting location.
• Repeater: A power outlet close to the mounting location.
• Ensure that the base station can communicate with the network (see Install the Base Station, on page
6). After it can communicate and the LED is green, you can unplug the cables.
Determine the best placement, taking into account the coverage area and the building construction materials.
• If you have a 210 Multi-Cell Base Station, you may need to add additional base stations or repeaters.
• If you have a 110 Single-Cell Base Station, you may need to add 110 Repeaters.
You can use the site survey tool on the handset to plan placement.
Procedure
Step 1 Hold the ceiling mount bracket in the desired location.
Step 2 Mark the screw placement.
Hardware Installation
8
Hardware Installation
Mount the Base Station or Repeater on the Ceiling
To Next Page
