Cisco 7600 Series Module Guide

15-5
Cisco 7600 Series Router Module Guide
OL-9392-05
Chapter 15 Cisco 7600 Ethernet Services Plus Line Cards
Cisco 7600 ES+ 40G3C, -40G3CXL Line Card LEDs

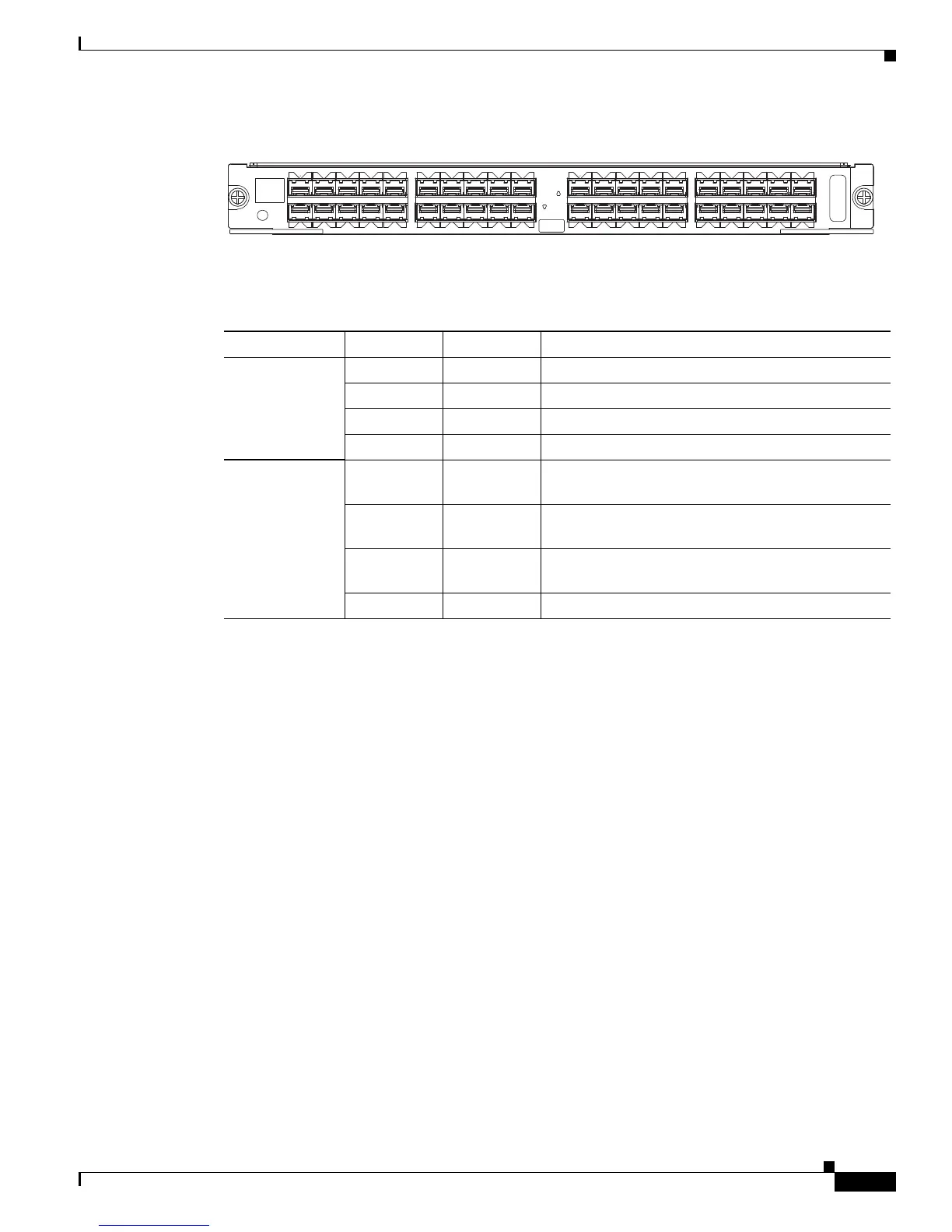

Figure 15-8 Cisco 7600 ES+ 40G3CXL Line Card Faceplate
There is one line card STATUS LED and twenty A/L (Active Loopback) LEDs. Table 15-4 provides LED
descriptions.
270822
CLASS 1
LASER
21
22
23
25
27
29
2
4
26
28
30
3
2
3
4
36
38
31
3
3
3
5
37
39
40
7600-ES+ 40G3CXL
ETHERNET SERVICES MODULE
STATUS
EXT CLK
1
2
3
5
7
9
4
6
8
10
1
2
1
4
16
18
11
1
3
1
5
17
19
20
A/L
A/
L
Ta b l e 15-4 Cisco 7600 ES+ 40G3C, -40G3CXL Line Card LEDs
LED Label Color State Meaning
STATUS Red On The line card has encountered an error.
Green On The line card is online.
Yellow On The line card is loading.
Off Off The line card is powered off.
A/L Amber On The port is enabled but there is not a valid Ethernet
link.
Green On The port is enabled and a valid Ethernet link has been
established.
Green and
Amber
On Undefined condition.
Off Off The port is not enabled by software.
