2-21
Cisco 7600 Series Router Module Guide
OL-9392-05
Chapter 2 Ethernet and Gigabit Ethernet Switching Modules
10/100 and 10/100/1000 Ethernet Switching Modules
48-Port 10/100BASE-T Ethernet Switching Module (WS-X6248-RJ45)
The 48-port 10/100BASE-T Ethernet switching module (WS-X6248-RJ45) provides 48 switched
10/100-Mbps autosensing, full or half-duplex ports. (See
Figure 2-7.) The 48 ports have RJ-45
connectors for Category 3, Category 5, Category 5e, or Category 6 UTP or FTP cable.
The QoS port architecture (Rx/Tx) for this module is 1q4t/2q2t.

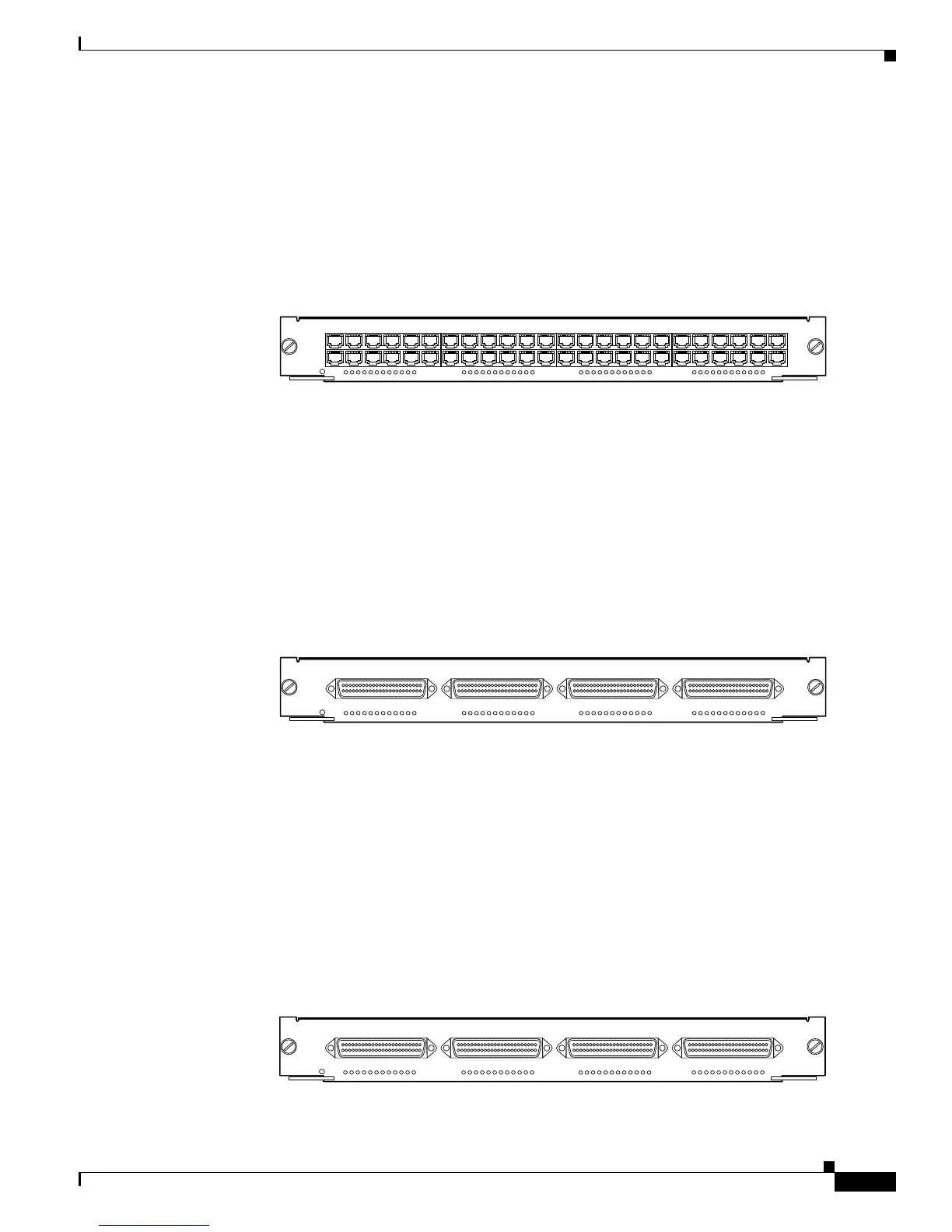

Figure 2-7 48-Port 10/100BASE-TX Ethernet Switching Module (WS-X6248-RJ45)
The front panel LEDs are described in Table 2-3 on page 2-35.
48-Port 10/100BASE-T Ethernet Switching Module (WS-X6248-TEL)
The 48-port 10/100BASE-T Ethernet switching module (WS-X6248-TEL) provides 48 switched
10/100-Mbps autosensing, full or half-duplex ports. (See
Figure 2-8.) Four RJ-21 connectors (12 ports
per connector) use Category 3, Category 5, Category 5e, or Category 6 UTP or FTP cable to connect to
the network.
The QoS port architecture (Rx/Tx) for this module is 1q4t/2q2t.
Figure 2-8 48-Port 10/100BASE-T Ethernet Switching Module (WS-X6248-TEL)
The front panel LEDs are described in Table 2-3 on page 2-35.
48-Port 10/100BASE-T Ethernet Switching Module (WS-X6248A-TEL)
The 48-port 10/100BASE-T Ethernet switching module (WS-X6248A-TEL) provides 48 switched
10/100-Mbps autosensing, full or half-duplex ports. (See Figure 2-9.) The WS-X6248A-TEL Ethernet
module has a larger buffer than the WS-X6248-TEL Ethernet module. Four RJ-21 connectors (12 ports
per connector) use Category
3, Category 5, Category 5e, or Category 6 UTP or FTP cable to connect to
the network.
The QoS port architecture (Rx/Tx) for this module is 1q4t/2q2t.
Figure 2-9 48-Port 10/100BASE-T Ethernet Switching Module (WS-X6248A-TEL)
The front panel LEDs are described in Table 2-3 on page 2-35.
16791
48 PORT
10/100 BASE-T
ETHERNET SWITCHING
MODULE
WS-X6248-RJ-45
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48
1
2
12
14
24
26
36
38
48
18502
48 PORT
10/100 BASE-T
ETHERNET SWITCHING
MODULE
WS-X6248-RJ-TEL
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48
13-24 1-12 25-36 37-48
18502
48 PORT
10/100 BASE-T
ETHERNET SWITCHING
MODULE
WS-X6248-RJ-TEL
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48
13-24 1-12 25-36 37-48
