2-24
Cisco 7600 Series Router Module Guide
OL-9392-05
Chapter 2 Ethernet and Gigabit Ethernet Switching Modules
10/100 and 10/100/1000 Ethernet Switching Modules
48-Port 10/100BASE-T Ethernet Switching Module (WS-X6348-RJ45V)
The 48-port 10/100BASE-T switching module (WS-X6348-RJ45V) provides 48 switched, 10/100-Mbps
autosensing, full- or half-duplex ports. (See
Figure 2-14.) The module has 48 RJ-45 connectors for use
with either Category 3, Category 5, Category 5e, or Category 6 UTP or FTP cable. The “V” in the
product number indicates that the inline-power daughter card (WS-F6K-VPWR) is installed on the
module. With the WS-F6K-VPWR daughter card installed, the module provides these IP phone features
on each port:
• Inline power—Provides 48 VDC over standard Category 5, Category 5e, or Category 6 UTP cable
up to 328
feet (100 meters) from the switch to the IP phone. With inline power, pairs 2 and 3 (pins
1, 2, 3, and 6) of the four pairs in the cable are used to transmit power (6.3
W) from the switch. This
method of supplying power is sometimes called phantom power because the power signals travel
over the same two pairs used to transmit Ethernet signals. The power signals are completely
transparent to the Ethernet signals and do not interfere with their operation.
• Phone discovery—Automatically detects the presence of an IP phone and supplies inline power to
the phone.
• Auxiliary VLANs—Provides automatic VLAN configuration for IP phones using IEEE 802.1Q as
the standards-based VLAN tagging mechanism between the switch and the IP phone.
The QoS port architecture (Rx/Tx) for this module is 1q4t/2q2t.

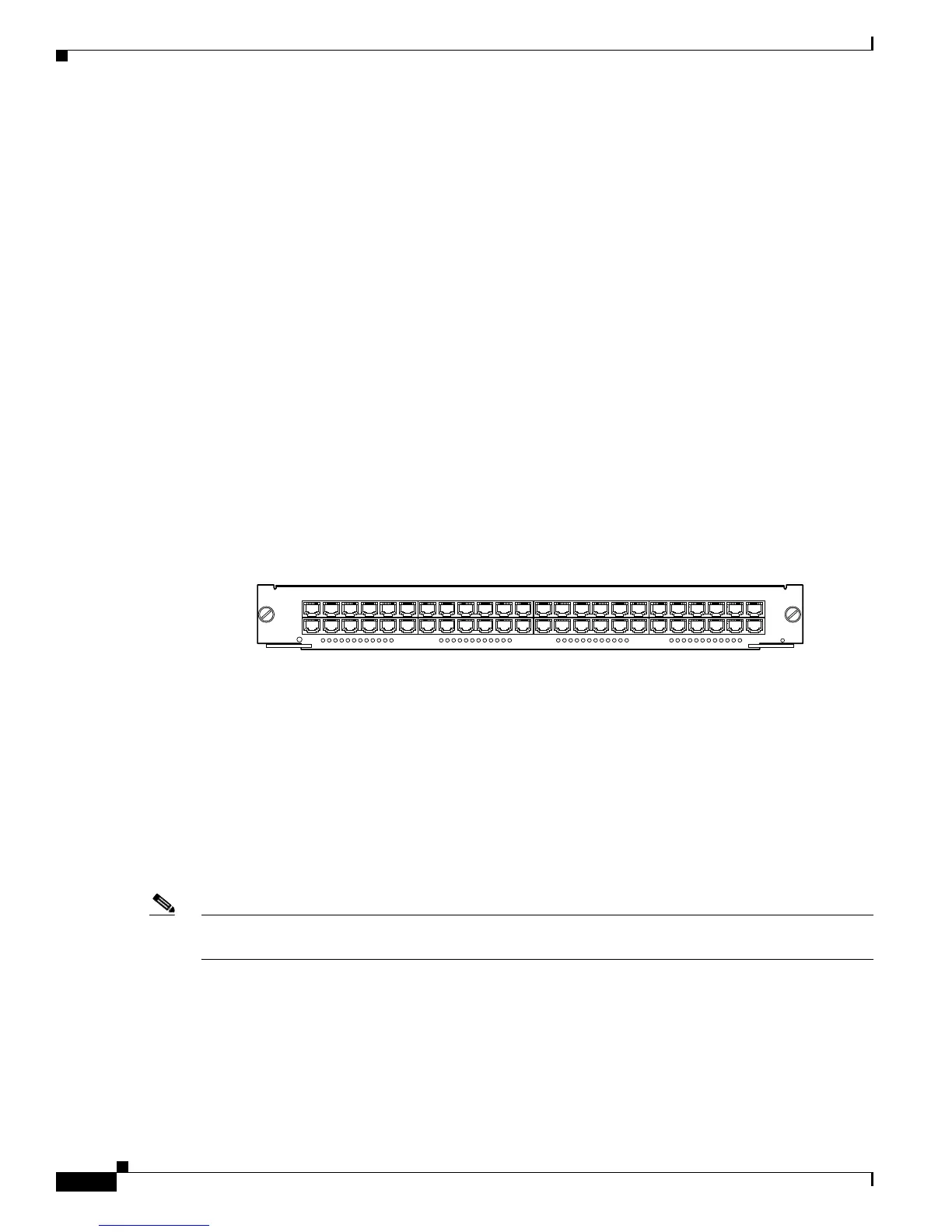

Figure 2-14 48-Port 10/100BASE-T Ethernet Switching Module (WS-X6348-RJ45V)
The front panel LEDs are described in Table 2-3 on page 2-35.
24-Port 100BASE-FX Fabric-Enabled Ethernet Switching Module
(WS-X6524-100FX-MM)
The 24-port 100BASE-FX switching module (WS-X6524-100FX-MM) provides 24 switched,
100-Mbps, full- or half-duplex ports. (See
Figure 2-15.) Ports have MT-RJ connectors for MMF cable.
The WS-X6524-100FX-MM module has 1-MB per-port packet buffers and a single fabric channel
interface. The switching module is upgradable to support distributed forwarding with an optional
Distributed Forwarding Card (WS-F6K-DFC).
Note This module is a Class 1 laser product. Refer to the Regulatory Compliance and Safety Information for
the Cisco 7600 Series Routers for information on working with lasers.
The QoS port architecture (Rx/Tx) for this module is 1p1q0t/1p3q1t.
39334
48 PORT
10/100 BASE-T
ETHERNET SWITCHING
MODULE
WS-X6348-RJ-45V
STATUS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
1
11
2
12
14
13
24
26
36
38
48
23
25
35
37
47
PHONE
