This chapter describes theCisco Application Control Engine (ACE) module (ACE10-6500-K9).
The ACE performs high-performance server load balancing (SLB) among groups of servers, server
farms, firewalls, and other network devices, based on Layer 3 as well as Layer 4 through Layer 7 packet
information. The ACE can also terminate and initiate SSL-encrypted traffic which allows the ACE to
perform intelligent load balancing while ensuring secure end-to-end encryption. The module is capable
of internetworking speeds of 4 Gigabits per second (Gbps) by default, and can achieve speeds of 8 Gbps
with the purchase of an upgrade license.

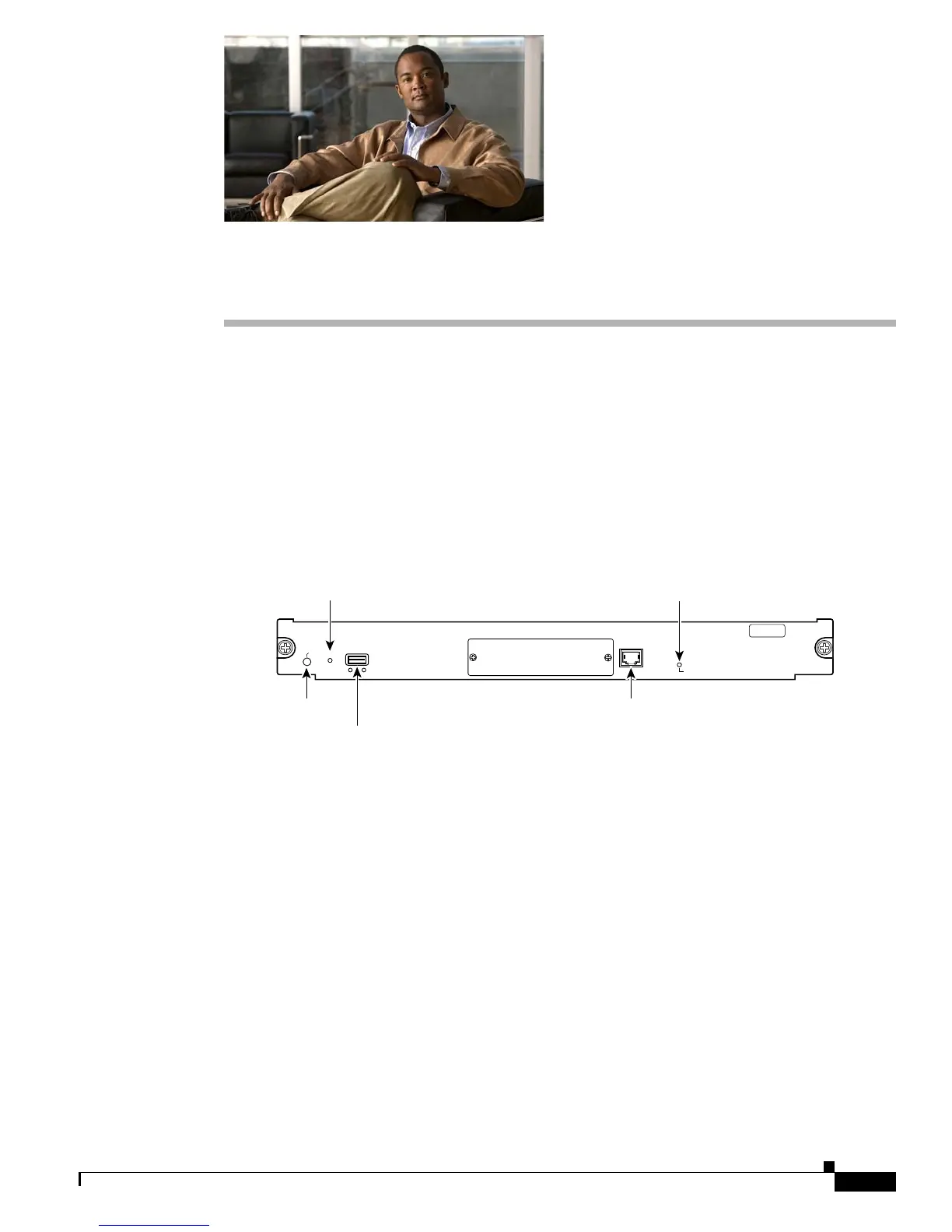

Figure 14-1 Application Control Engine (ACE) module (ACE10-6500-K9)
The STATUS LED displays the Content Switching Module status as described in Table 14-1.
Shutdown Button
148367
ACE10-6500-K9
APPLICATION CONTROL ENGINE SERVICE MODULE
SHUTDOWN
USB
STATUS
MODULE
CONSOLE
FIPS
MODE
Status LED
USB Port
(For Future Use)
RJ-45 Console
connector
FIPS Mode LED
(Not Used)
