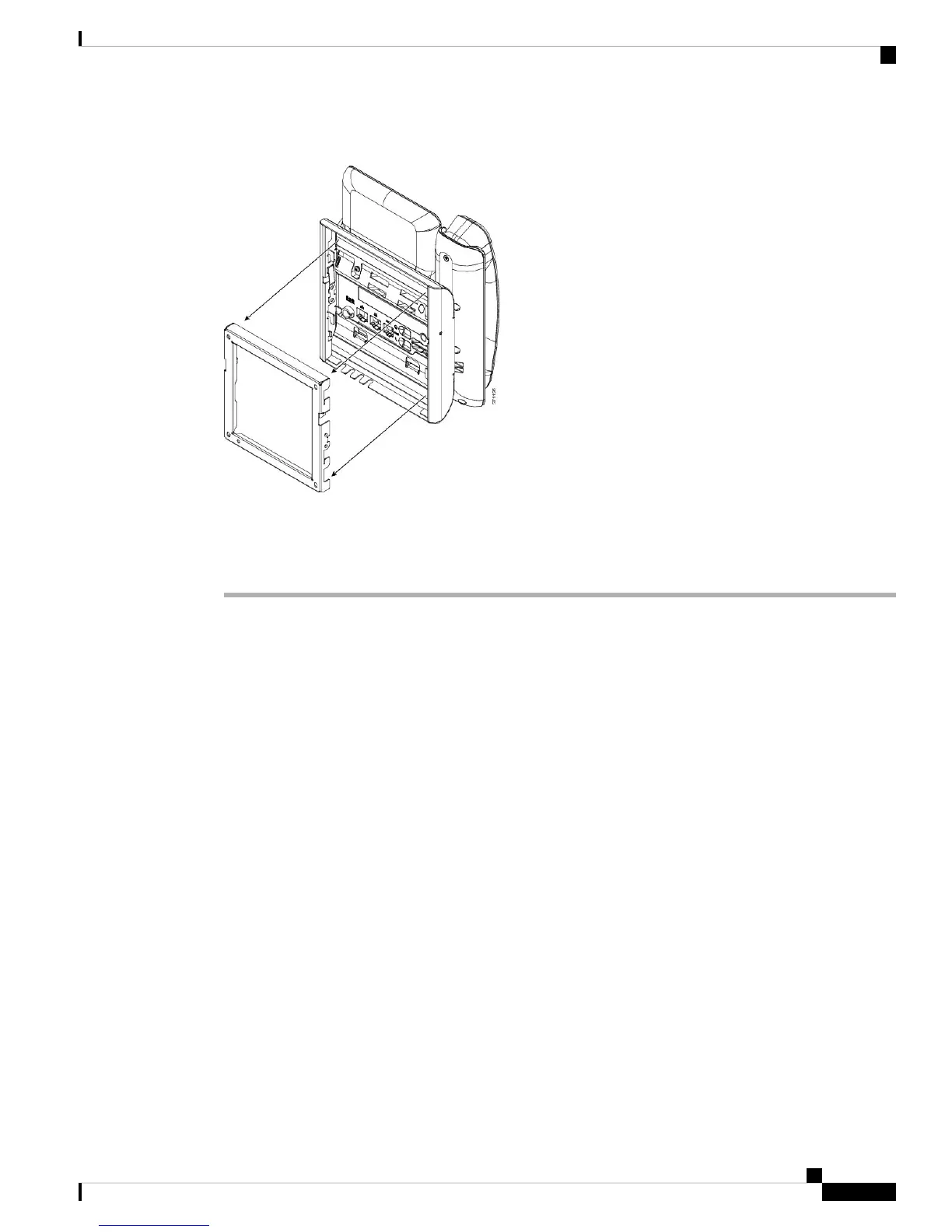

Figure 16: Phone to Wall Bracket Attachment
Step 5 Press the phone firmly into the wall bracket and slide the phone down. The tabs in the bracket click into
position.
Step 6 Proceed to Adjust the Handset Rest, on page 25.
Remove the Phone from the Non-Lockable Wall Mount
The phone mounting plate contains two tabs to lock the plate into the wall bracket. The following figure shows
the location and shape of the tabs.
Wall Mounts
15
Wall Mounts
Remove the Phone from the Non-Lockable Wall Mount
