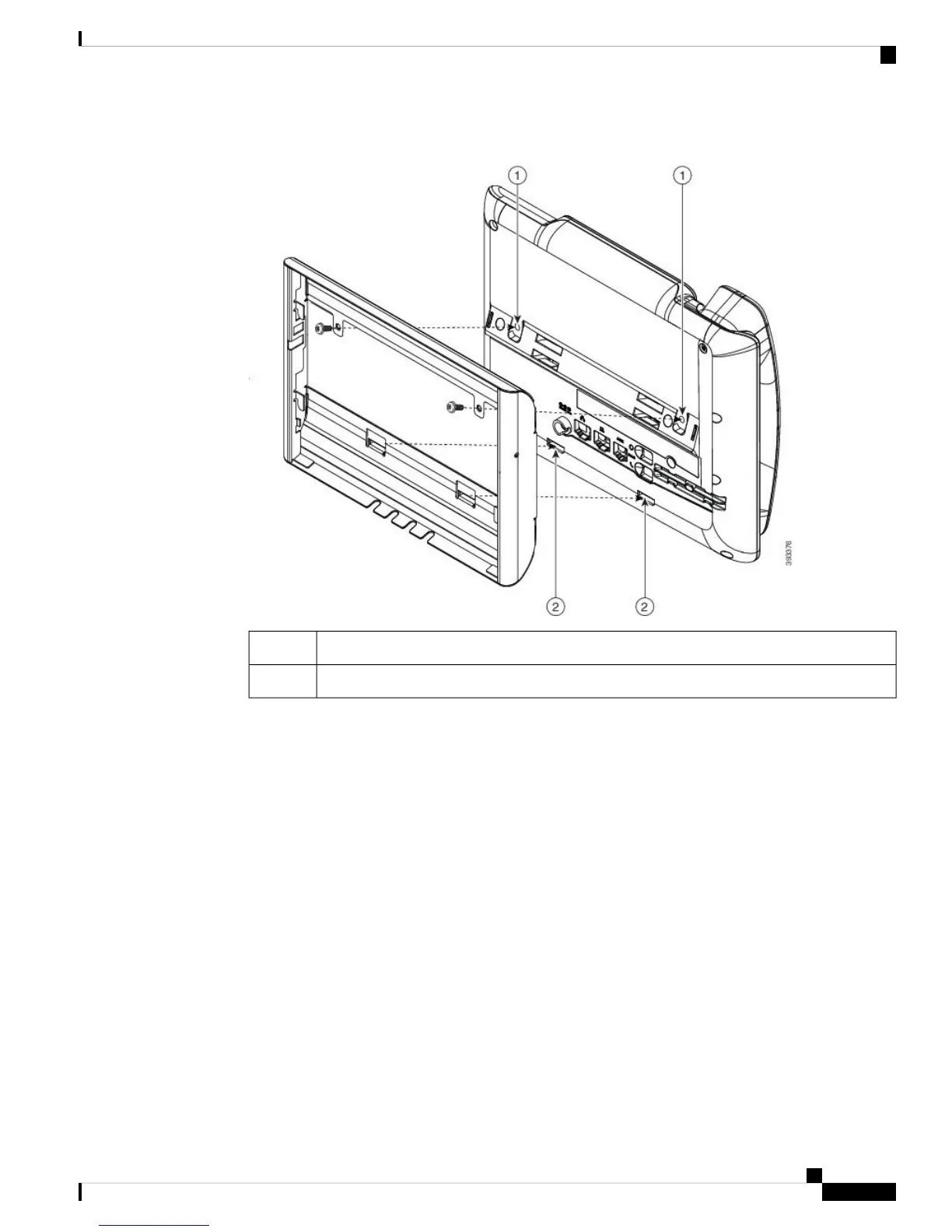

Figure 23: Phone Bracket Attachment
Screw holes1
Slot for Mounting Tabs2
Step 3 Attach the cables to the phone:
a) Attach the Ethernet cable to the 10/100/1000 SW network port and wall jack.
b) (Optional) If you are connecting a network device (such as a computer) to the phone, attach the cable to
the 10/100/1000 Computer (PC access) port.
c) (Optional) If you use an external power supply, plug the power cord into the phone. Dress the cord by
clipping it into the clips that are incorporated into the phone body next to the PC port.
d) (Optional) If the cables terminate inside the wall bracket, connect the cables to the jacks.
Wall Mounts
21
Wall Mounts
Install the Non-Lockable Wall Mount Kit for 7861
