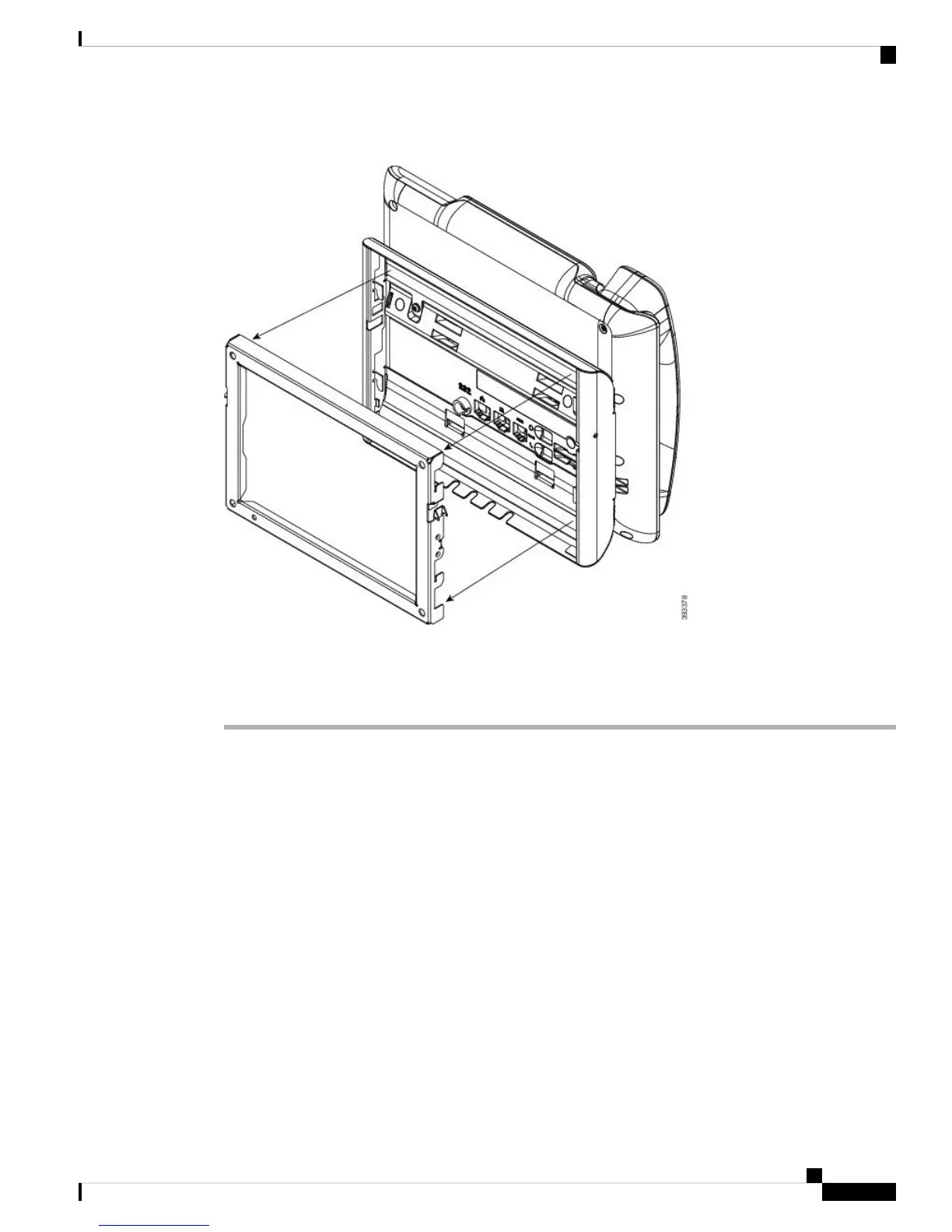

Figure 25: Phone to Wall Bracket Attachment
Step 5 Press the phone firmly into the wall bracket and slide the phone down. The tabs in the bracket click into
position.
Step 6 Proceed to Adjust the Handset Rest, on page 25.
Remove the Phone from the Non-Lockable Wall Mount
The wall mounting plate contains two tabs to lock the plate into the phone bracket. The following figure shows
the location and shape of the tabs.
Wall Mounts
23
Wall Mounts
Remove the Phone from the Non-Lockable Wall Mount

Cisco 7811 Specifications

General

Wall Mountable	Yes
Protocols	SIP
Ethernet Switch	10/100
PoE	Yes, IEEE 802.3af (Class 1)
Handset	Standard Handset
Speakerphone	Yes
Headset Port	No
Codecs	G.722, iLBC
