Cisco 7861 Installation Guide

Installation Guide for Cisco IP Phone with Multiplatform Firmware
17

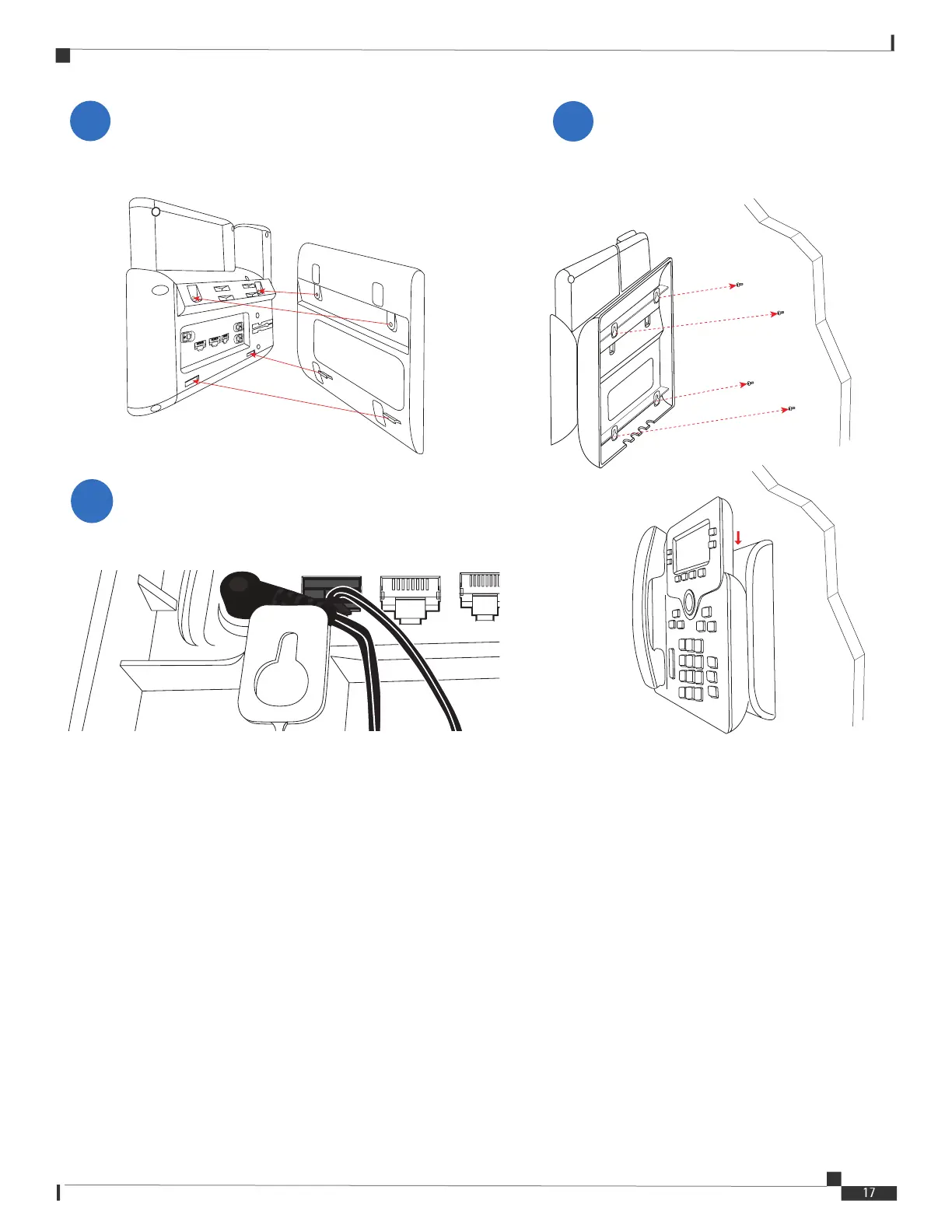

Wall Mount Your 6800 Series Phones
Wall Mount Your Phone
393680
Remove the wall bracket from the wall and
attach it to the rear panel of the phone.
3
393684
393682
4
Connect the Ethernet cable and the power adapter,
and then push the cables into the notches.
Attach the phone and wall bracket
assembly to the wall.
5

Cisco 7861 Specifications

General

Speakerphone	Yes
Wall Mountable	Yes
Protocols	SIP
Display	3.5-inch grayscale
PoE	Yes
Audio Codec	G.711, G.729, G.722, iLBC
Headset Port	Yes
Weight	1031 g
Line Keys	16 line keys
